Shop-Force 5/8" to JT33 Straight Shank Arbor - Partially Ground - A00P39 - A00P39
Sale price
$17.53
Regular price
$23.50

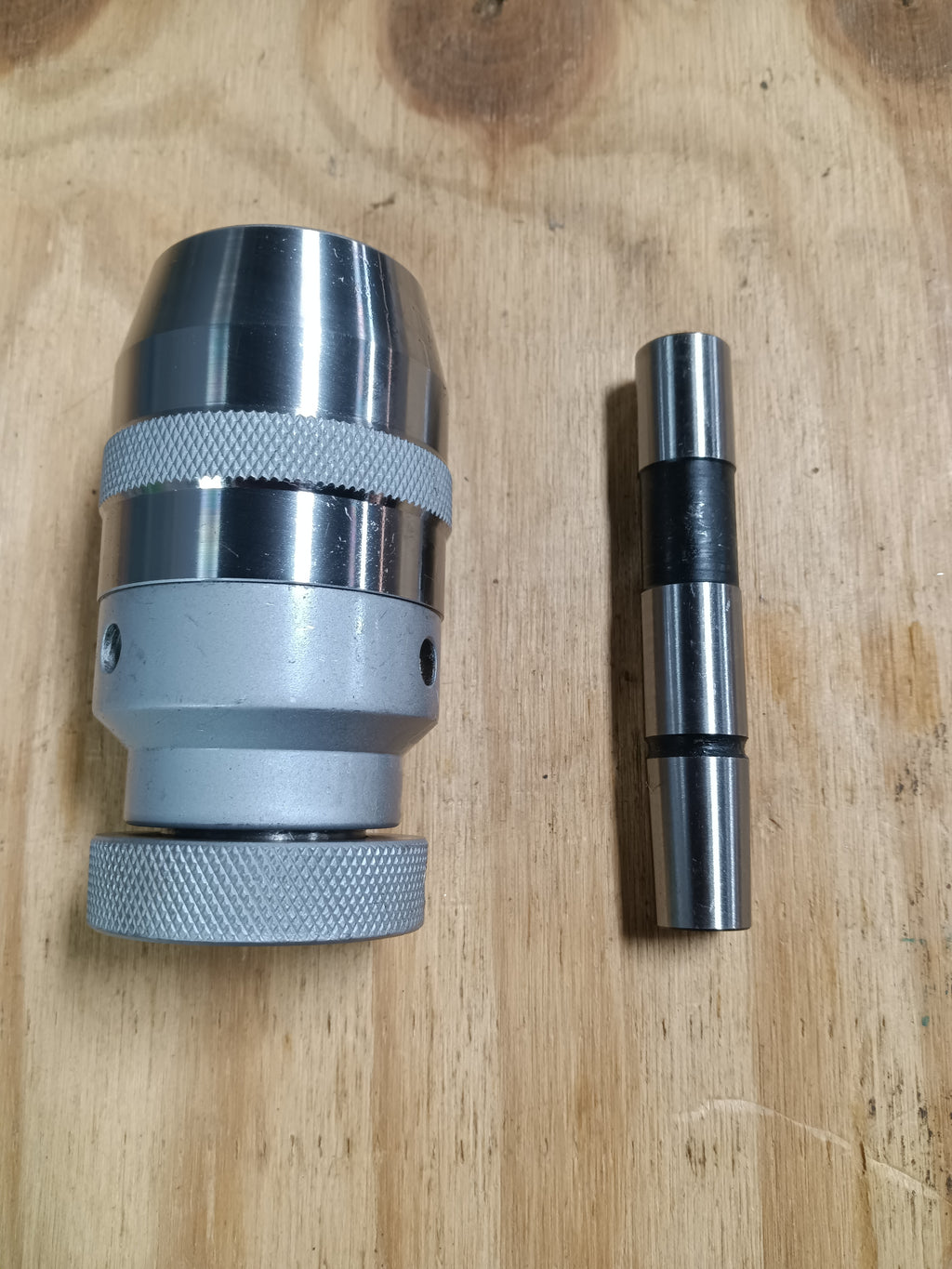

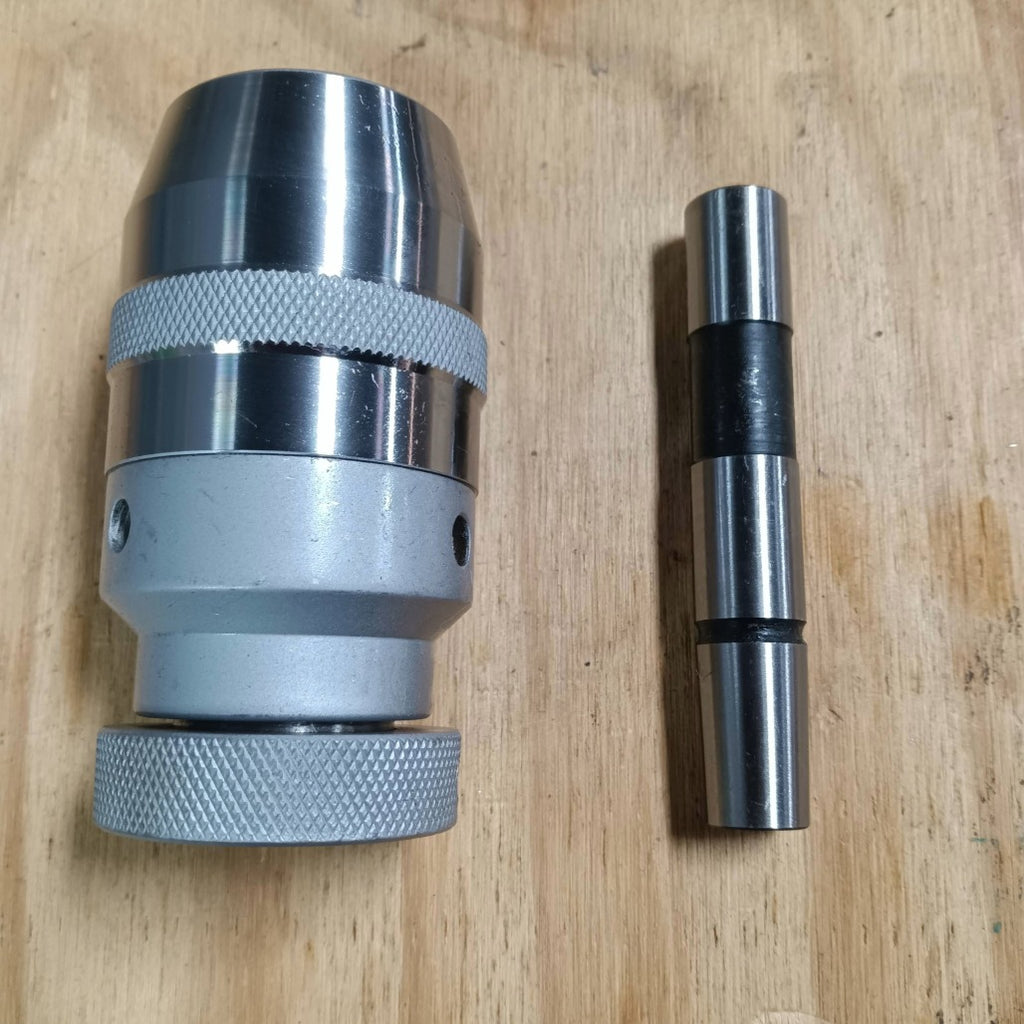

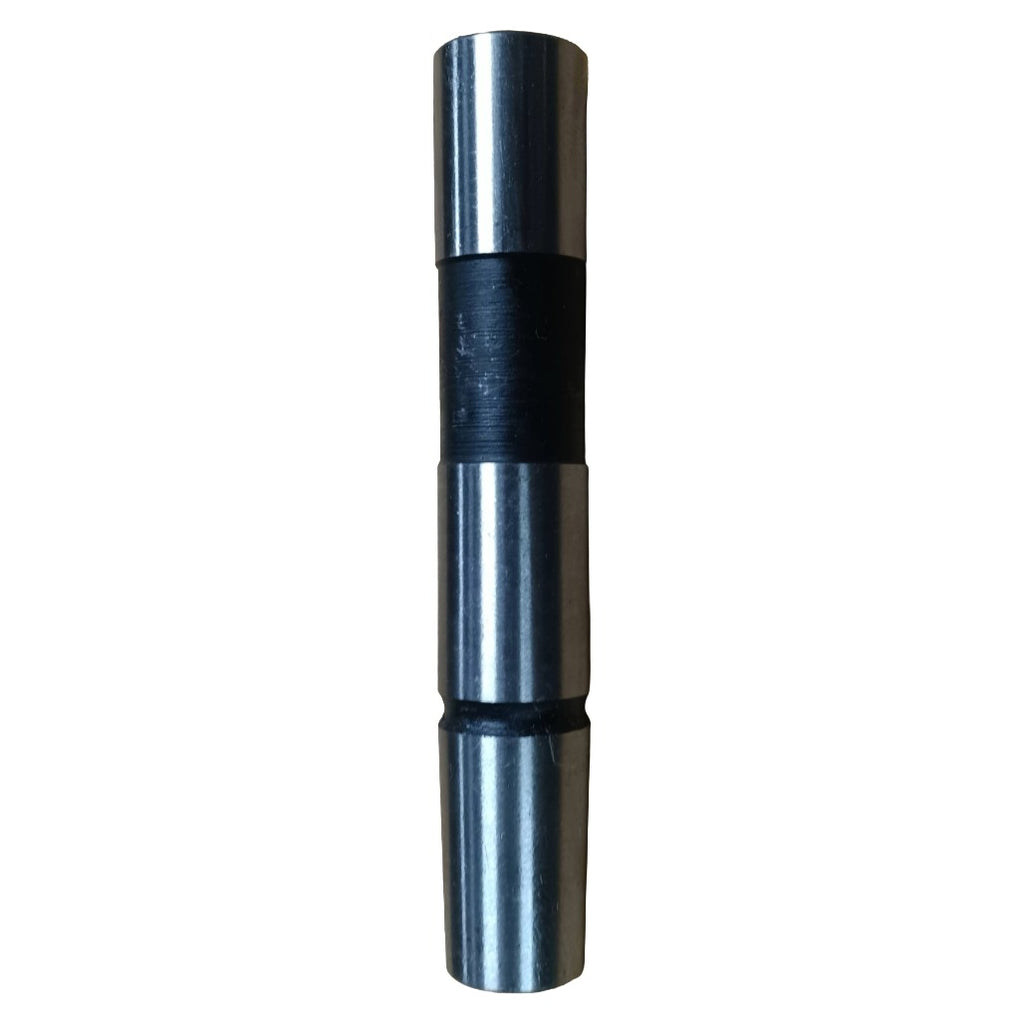

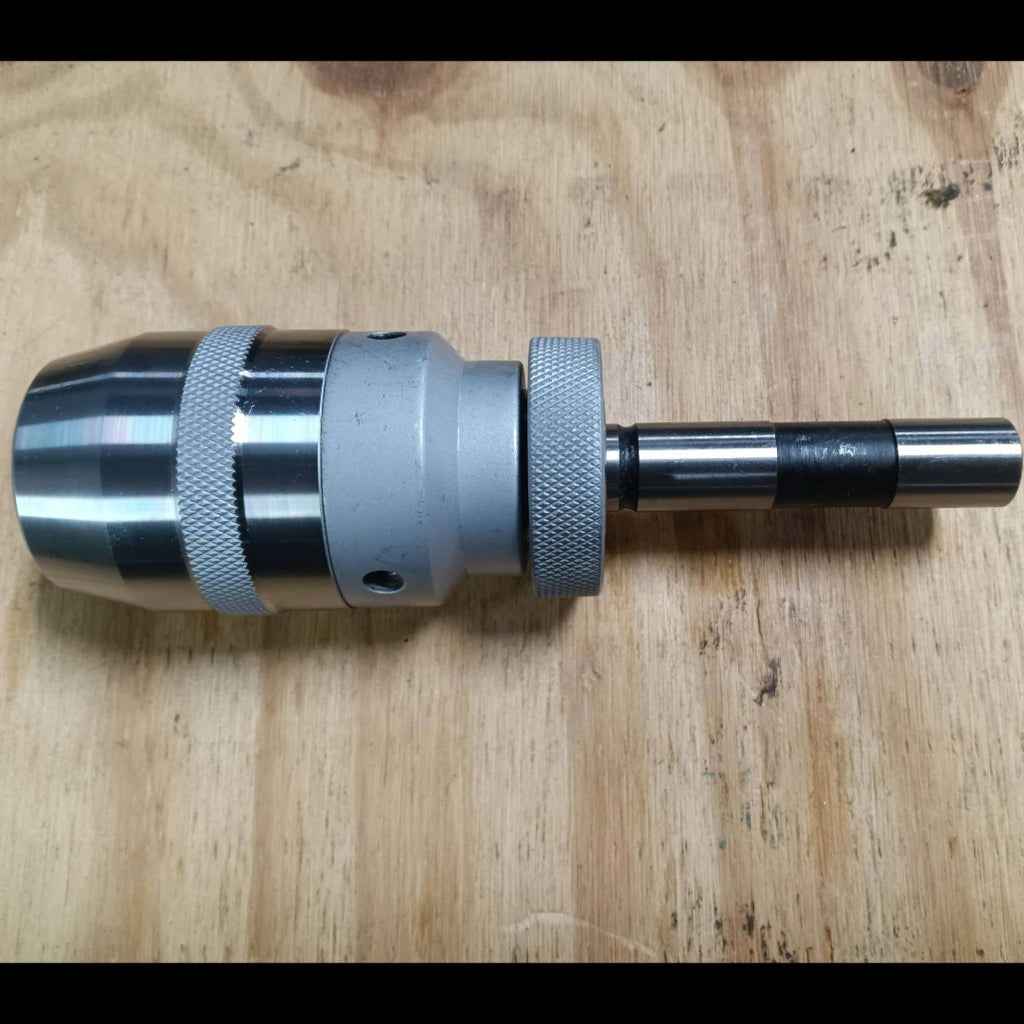

5/8" to JT33 Straight Shank Drill Chuck Arbor-Partially Ground Shank (A00P39)

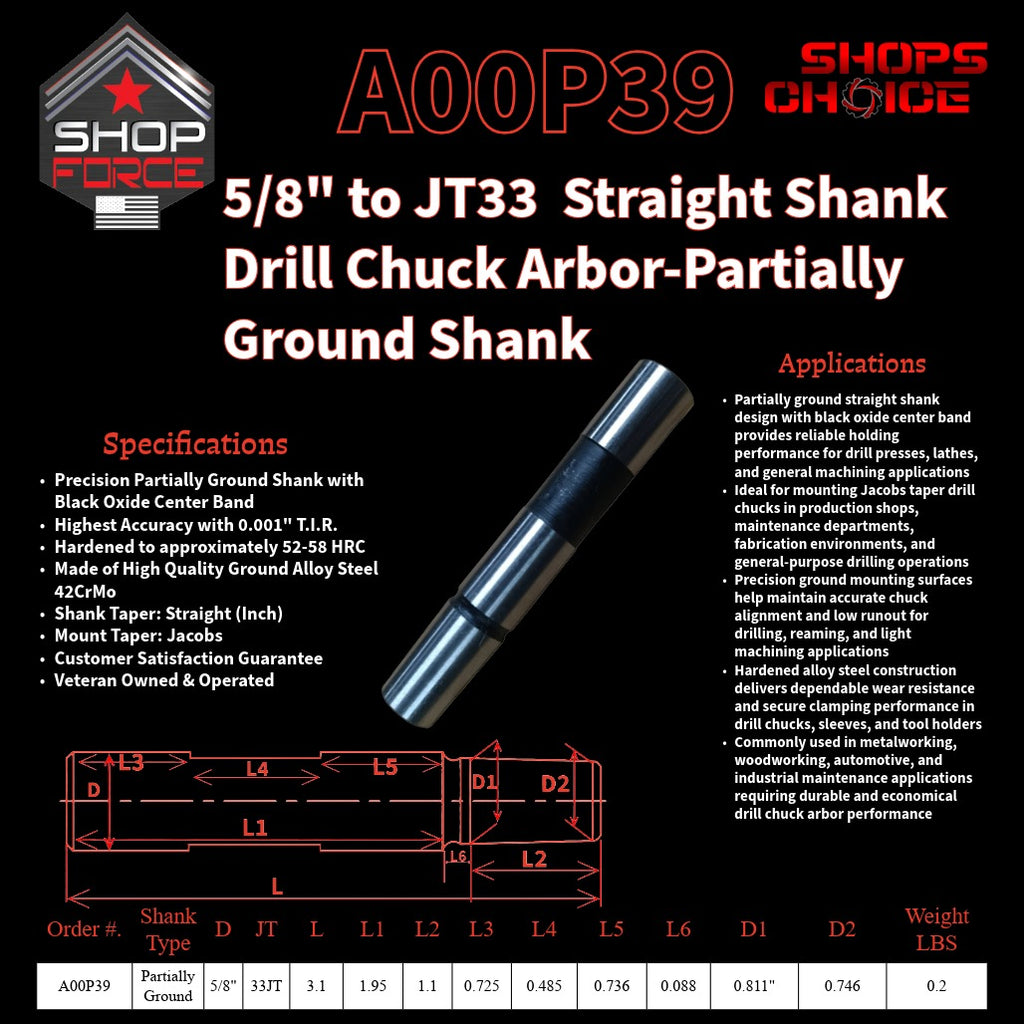

Specifications & Tolerances
- Precision Partially Ground Shank with Black Oxide Center Band
- HIGHEST TOLERANCE: Taper to Shank Runout < 0.001"
- Hardened to approximately 52-58 HRC
- Shank Taper: Straight (Inch)
- Mount Taper: Jacobs Taper
- Made of High Quality Ground Alloy Steel 42CrMo
- Customer Satisfaction Guarantee
- Veteran Owned & Operated
Applications
- Partially ground straight shank provides superior concentricity and reduced runout for precision drilling and machining applications
- Ideal for use in CNC machines, milling machines, drill presses, and lathes where accurate chuck alignment is critical
- Precision ground shank improves holding performance in collets, end mill holders, and precision drill chucks for enhanced stability under load
- Commonly used in toolrooms, production machining, metal fabrication, and maintenance shops requiring repeatable drilling accuracy
- Hardened and Partially ground construction delivers excellent wear resistance and smooth tool changes in high-precision industrial environments

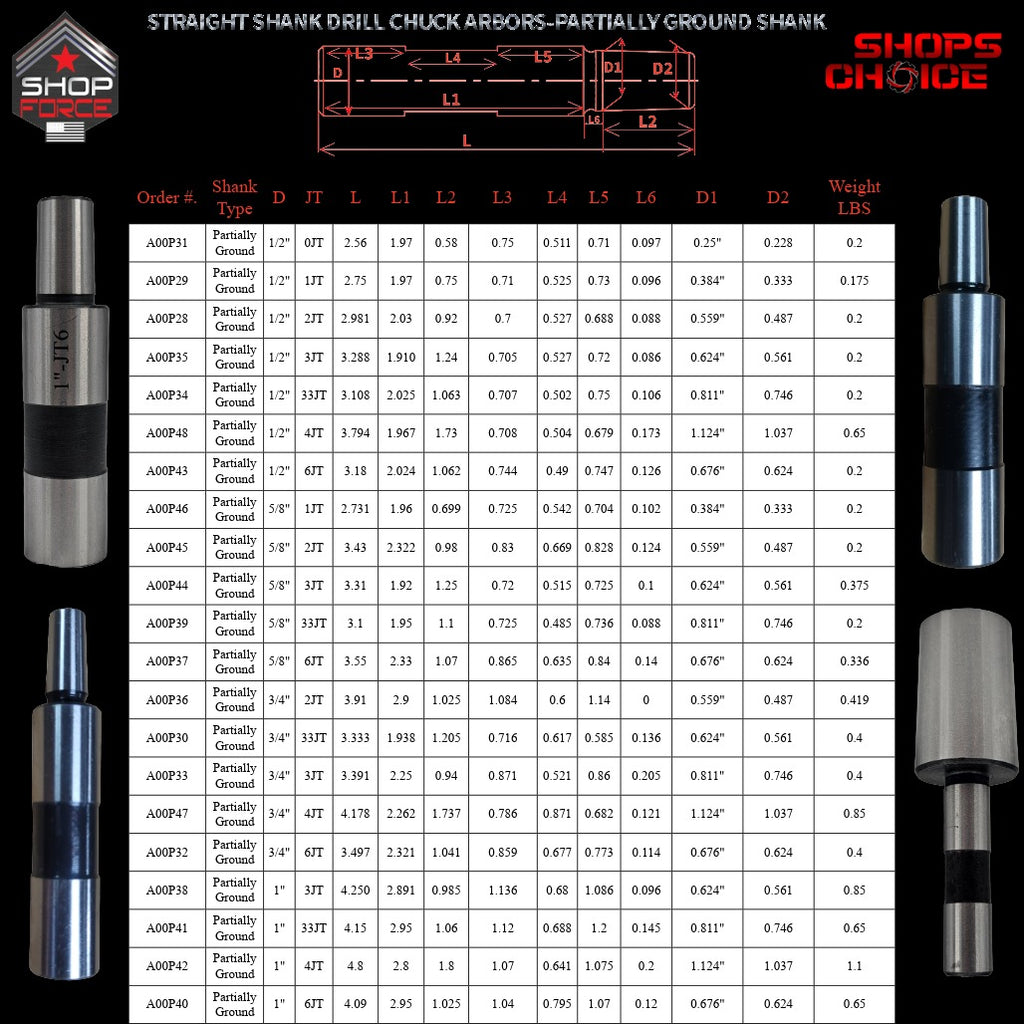

| Order #. | Shank Type | D | JT | L | L1 | L2 | L3 | L4 | L5 | L6 | D1 | D2 | Weight LBS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A00P46 | Partially Ground | 5/8" | 1JT | 2.731 | 1.96 | 0.699 | 0.725 | 0.542 | 0.704 | 0.102 | 0.384" | 0.333 | 0.2 |
| A00P45 | Partially Ground | 5/8" | 2JT | 3.43 | 2.322 | 0.98 | 0.83 | 0.669 | 0.828 | 0.124 | 0.559" | 0.487 | 0.2 |
| A00P44 | Partially Ground | 5/8" | 33JT | 3.31 | 1.92 | 1.25 | 0.72 | 0.515 | 0.725 | 0.1 | 0.624" | 0.561 | 0.375 |
| A00P39 | Partially Ground | 5/8" | 3JT | 3.1 | 1.95 | 1.1 | 0.725 | 0.485 | 0.736 | 0.088 | 0.811" | 0.746 | 0.2 |
| A00P37 | Partially Ground | 5/8" | 6JT | 3.55 | 2.33 | 1.07 | 0.865 | 0.635 | 0.84 | 0.14 | 0.676" | 0.624 | 0.336 |
Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.
