Shop-Force 3/4" to JT33 Straight Shank Arbor - Partially Ground - A00P33 - A00P33
Sale price
$16.92
Regular price
$22.95

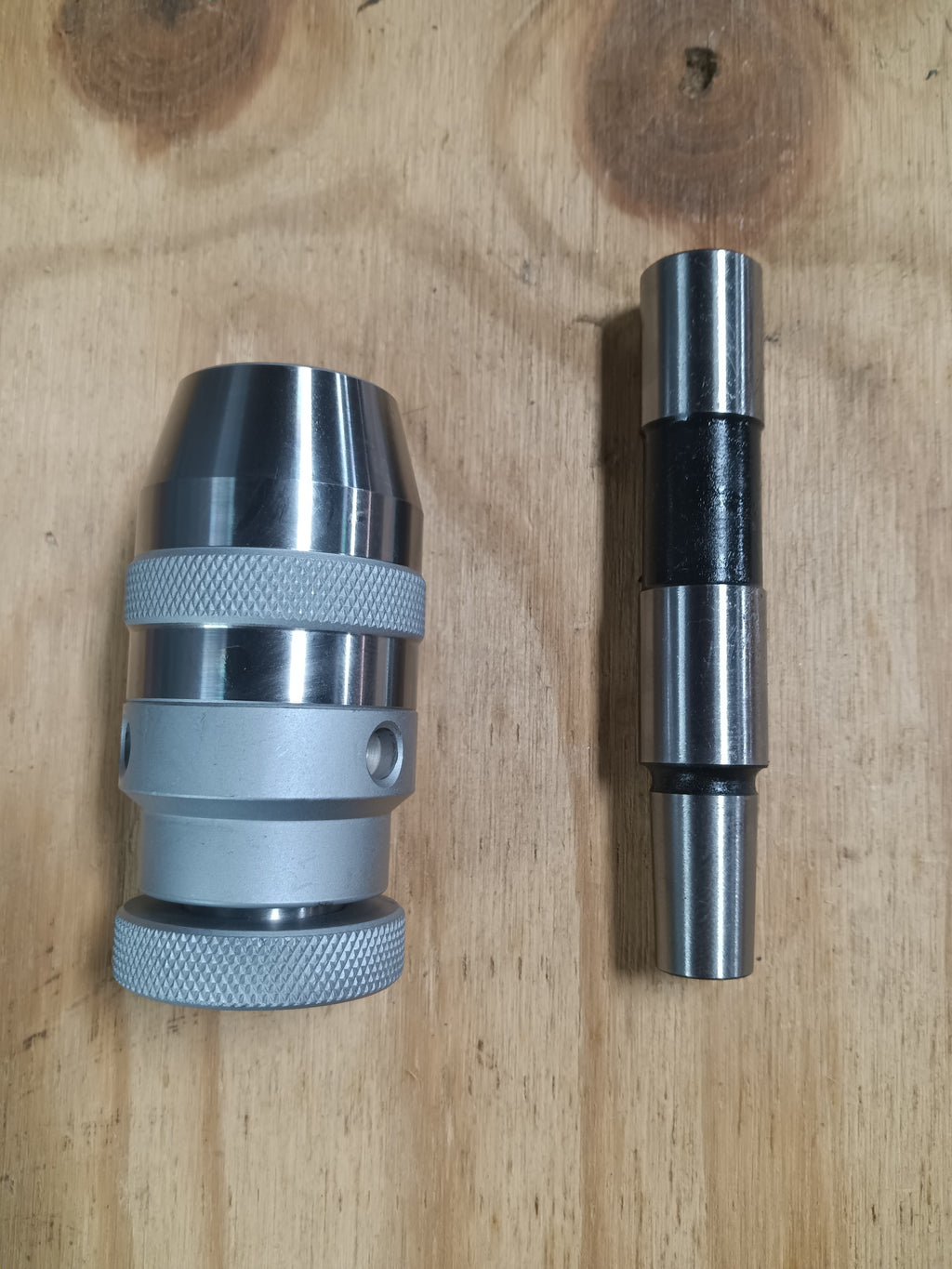

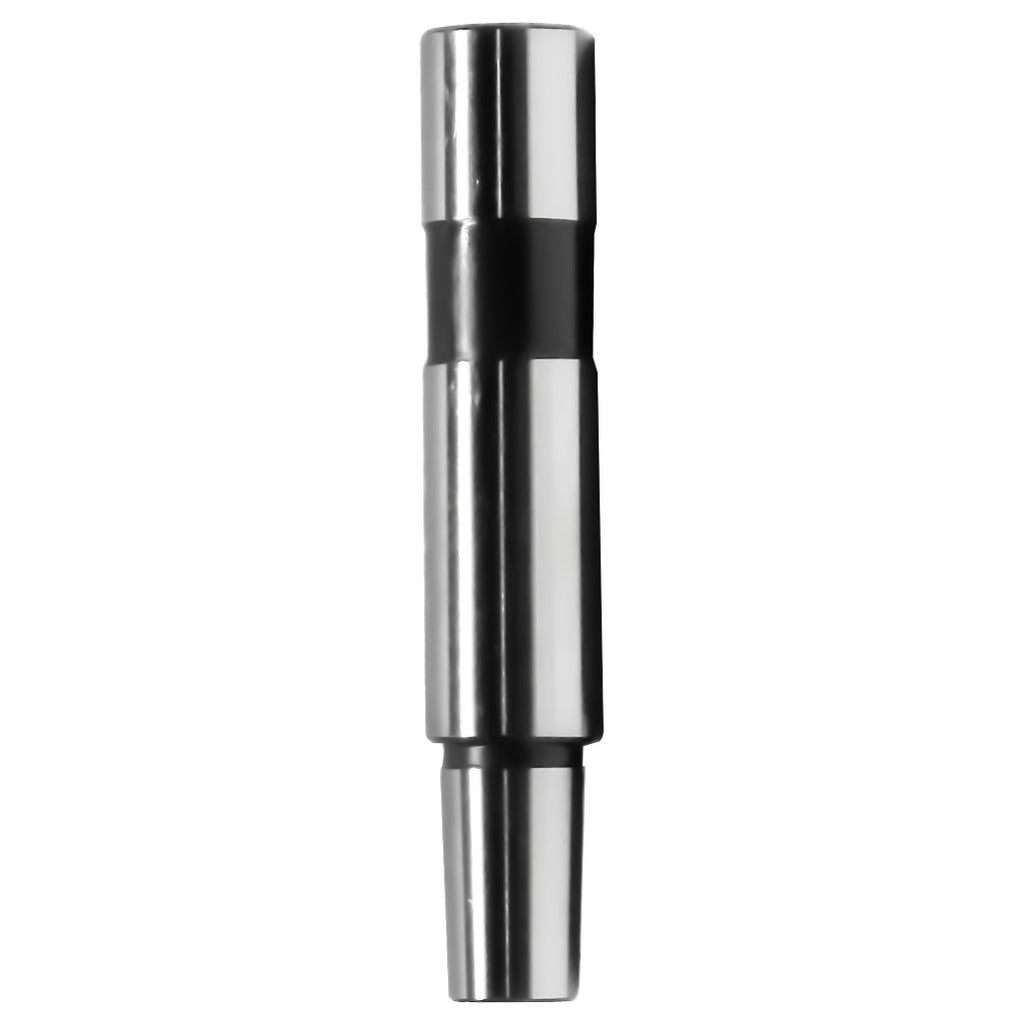

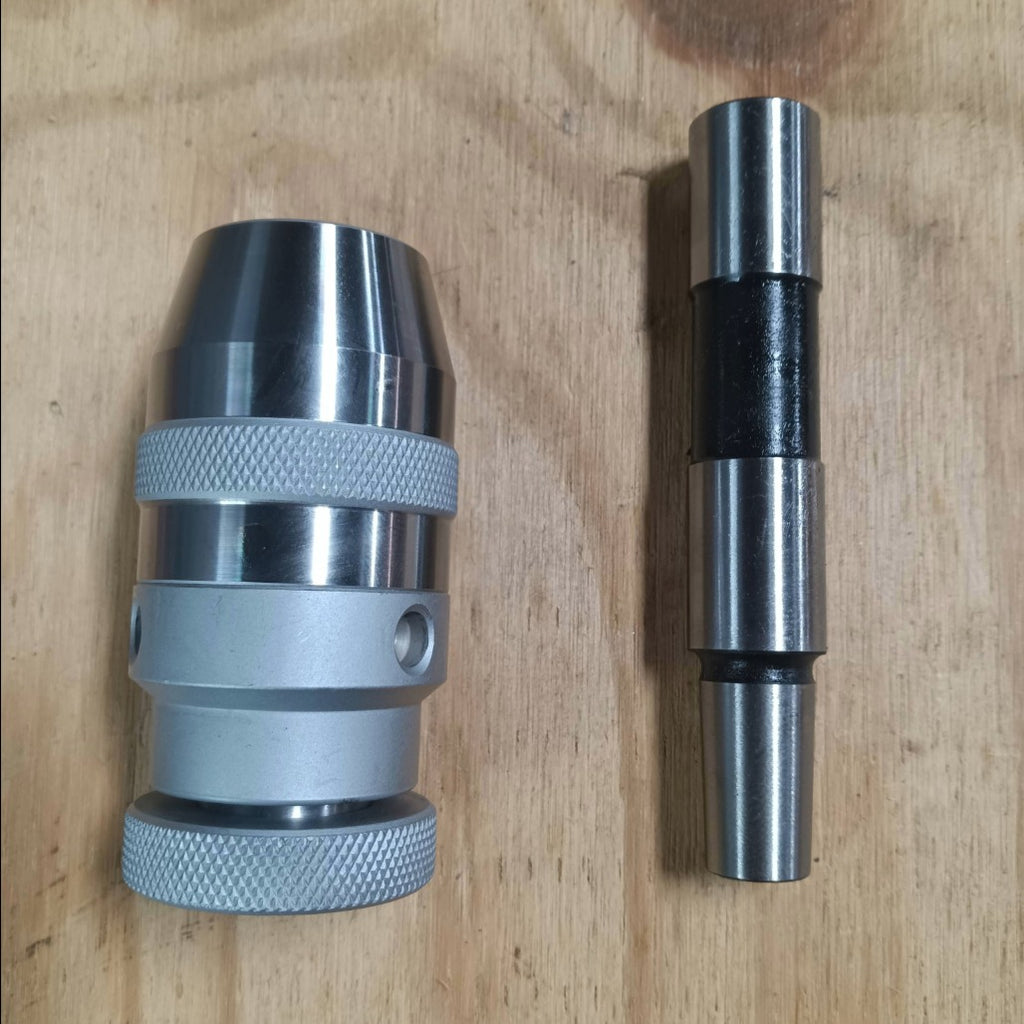

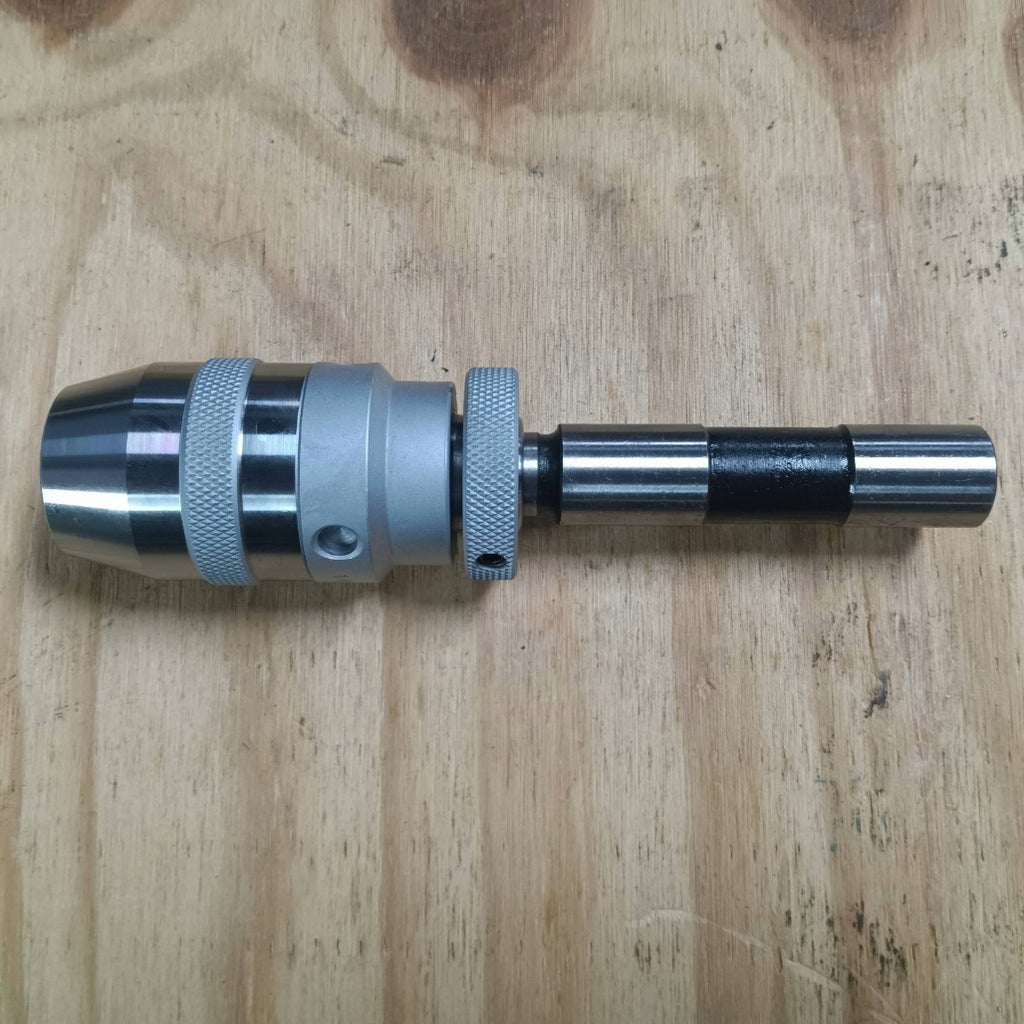

3/4" to JT33 Straight Shank Drill Chuck Arbor-Partially Ground Shank (A00P33)

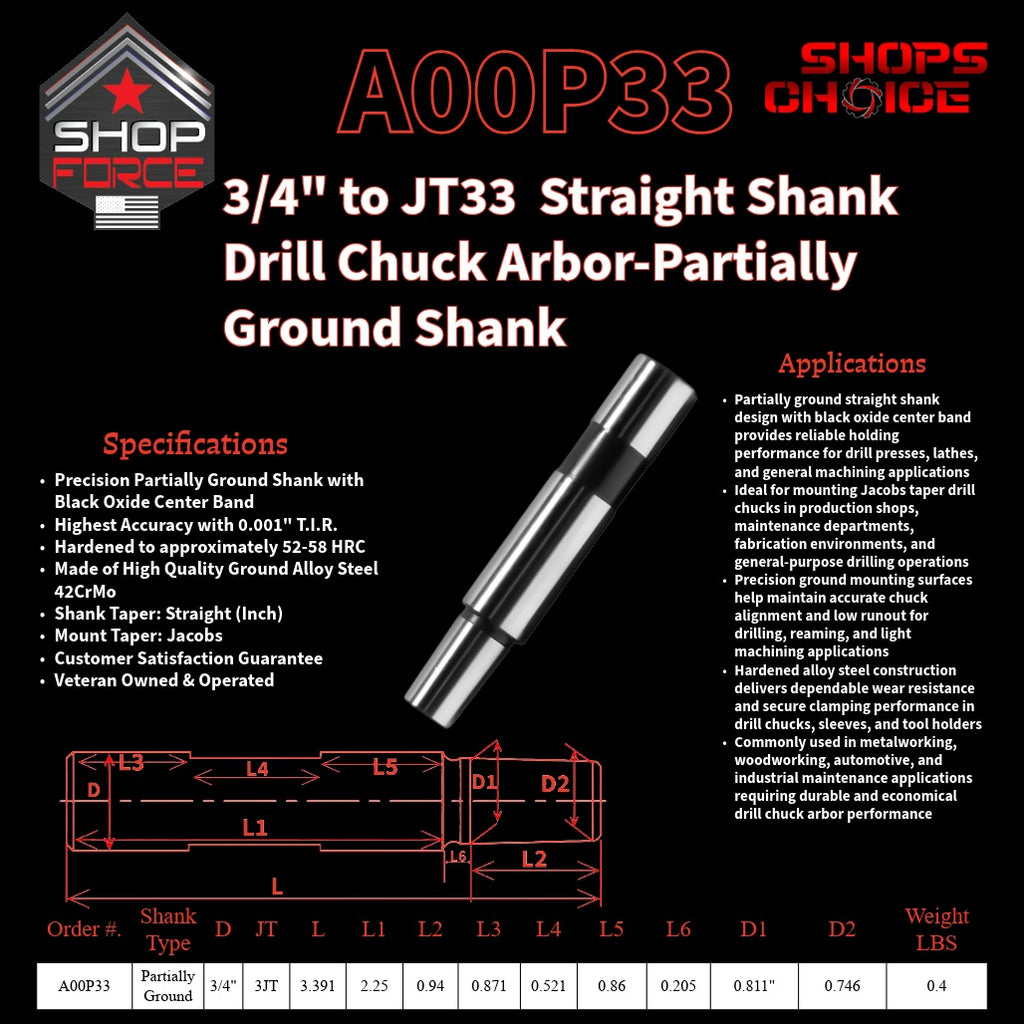

Specifications & Tolerances
- Precision Partially Ground Shank with Black Oxide Center Band
- HIGHEST TOLERANCE: Taper to Shank Runout < 0.001"
- Hardened to approximately 52-58 HRC
- Shank Taper: Straight (Inch)
- Mount Taper: Jacobs Taper
- Made of High Quality Ground Alloy Steel 42CrMo
- Customer Satisfaction Guarantee
- Veteran Owned & Operated
Applications
- Partially ground straight shank provides superior concentricity and reduced runout for precision drilling and machining applications
- Ideal for use in CNC machines, milling machines, drill presses, and lathes where accurate chuck alignment is critical
- Precision ground shank improves holding performance in collets, end mill holders, and precision drill chucks for enhanced stability under load
- Commonly used in toolrooms, production machining, metal fabrication, and maintenance shops requiring repeatable drilling accuracy
- Hardened and Partially ground construction delivers excellent wear resistance and smooth tool changes in high-precision industrial environments

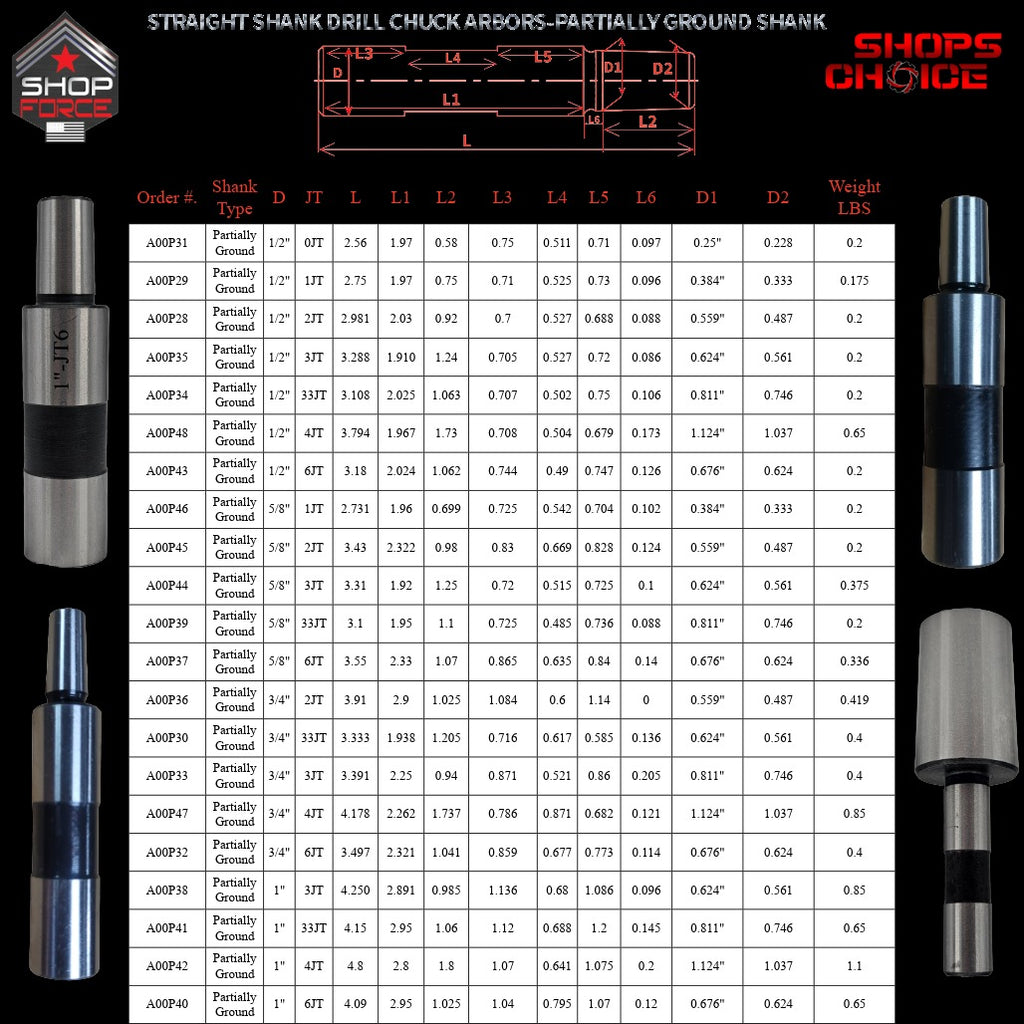

| Order #. | Shank Type | D | JT | L | L1 | L2 | L3 | L4 | L5 | L6 | D1 | D2 | Weight LBS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A00P36 | Partially Ground | 3/4" | 2JT | 3.91 | 2.9 | 1.025 | 1.084 | 0.6 | 1.14 | 0 | 0.559" | 0.487 | 0.419 |
| A00P30 | Partially Ground | 3/4" | 33JT | 3.333 | 1.938 | 1.205 | 0.716 | 0.617 | 0.585 | 0.136 | 0.624" | 0.561 | 0.4 |
| A00P33 | Partially Ground | 3/4" | 3JT | 3.391 | 2.25 | 0.94 | 0.871 | 0.521 | 0.86 | 0.205 | 0.811" | 0.746 | 0.4 |
| A00P47 | Partially Ground | 3/4" | 4JT | 4.178 | 2.262 | 1.737 | 0.786 | 0.871 | 0.682 | 0.121 | 1.124" | 1.037 | 0.85 |
| A00P32 | Partially Ground | 3/4" | 6JT | 3.497 | 2.321 | 1.041 | 0.859 | 0.677 | 0.773 | 0.114 | 0.676" | 0.624 | 0.4 |
Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.
