1" to JT3 Straight Shank Drill Chuck Arbor-Partially Ground Shank - A00P38
Sale price
$21.20
Regular price
$22.83

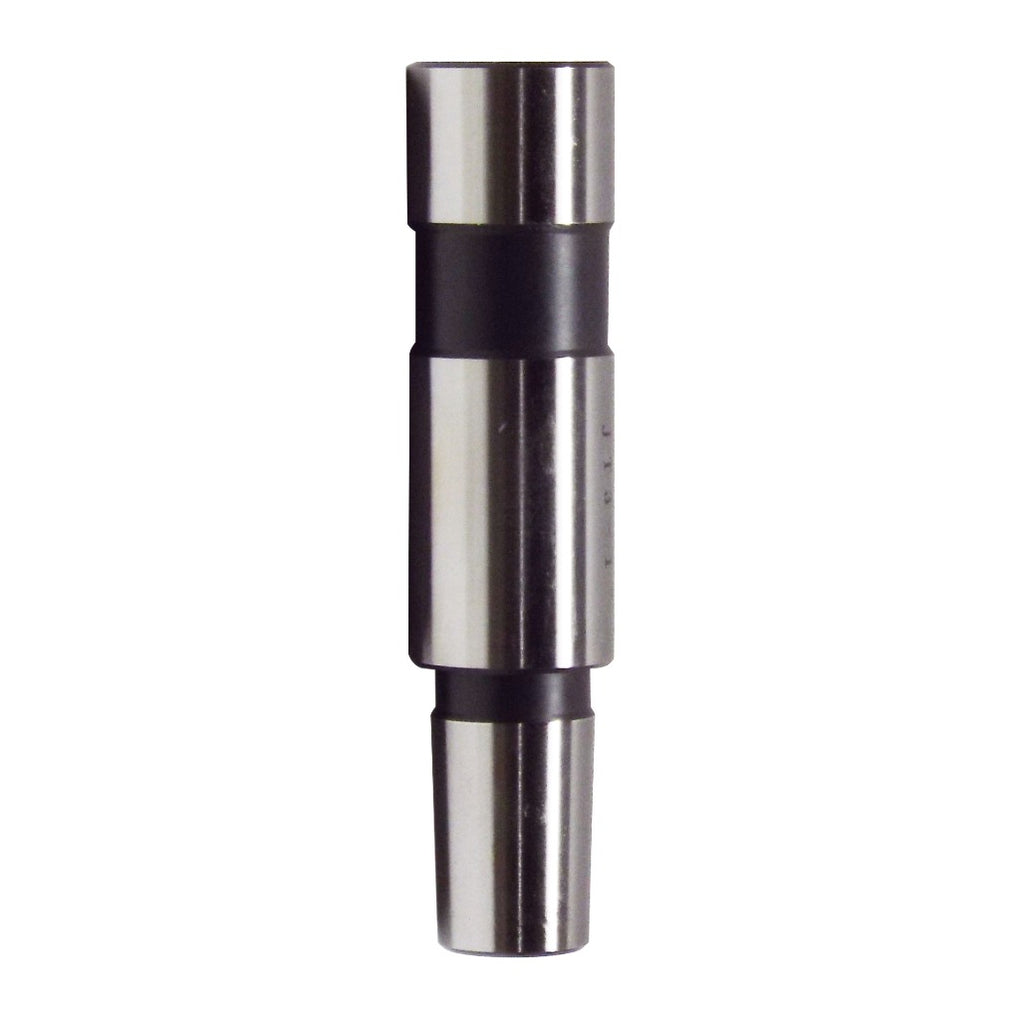

1" to JT3 Straight Shank Drill Chuck Arbor-Partially Ground Shank (A00P38)
Specifications & Tolerances
- Precision Partially Ground Shank with Black Oxide Center Band
- HIGHEST TOLERANCE: Taper to Shank Runout < 0.001"
- Hardened to approximately 52-58 HRC
- Shank Taper: Straight (Inch)
- Mount Taper: Jacobs Taper
- Made of High Quality Ground Alloy Steel 42CrMo
- Customer Satisfaction Guarantee
- Veteran Owned & Operated
Applications
- Partially ground straight shank provides superior concentricity and reduced runout for precision drilling and machining applications
- Ideal for use in CNC machines, milling machines, drill presses, and lathes where accurate chuck alignment is critical
- Precision ground shank improves holding performance in collets, end mill holders, and precision drill chucks for enhanced stability under load
- Commonly used in toolrooms, production machining, metal fabrication, and maintenance shops requiring repeatable drilling accuracy
- Hardened and Partially ground construction delivers excellent wear resistance and smooth tool changes in high-precision industrial environments
| Order #. | Shank Type | D | JT | L | L1 | L2 | L3 | L4 | L5 | L6 | D1 | D2 | Weight LBS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A00P38 | Partially Ground | 1" | 33JT | 4.25 | 2.891 | 0.985 | 1.136 | 0.68 | 1.086 | 0.096 | 0.624" | 0.561 | 0.85 |
| A00P41 | Partially Ground | 1" | 3JT | 4.15 | 2.95 | 1.06 | 1.12 | 0.688 | 1.2 | 0.145 | 0.811" | 0.746 | 0.65 |
| A00P42 | Partially Ground | 1" | 4JT | 4.8 | 2.8 | 1.8 | 1.07 | 0.641 | 1.075 | 0.2 | 1.124" | 1.037 | 1.1 |
| A00P40 | Partially Ground | 1" | 6JT | 4.09 | 2.95 | 1.025 | 1.04 | 0.795 | 1.07 | 0.12 | 0.676" | 0.624 | 0.65 |
Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.
