MT1 to JT6 Drill Chuck Arbor with Tang - A0026 - Shop-Force - A0026
$17.41

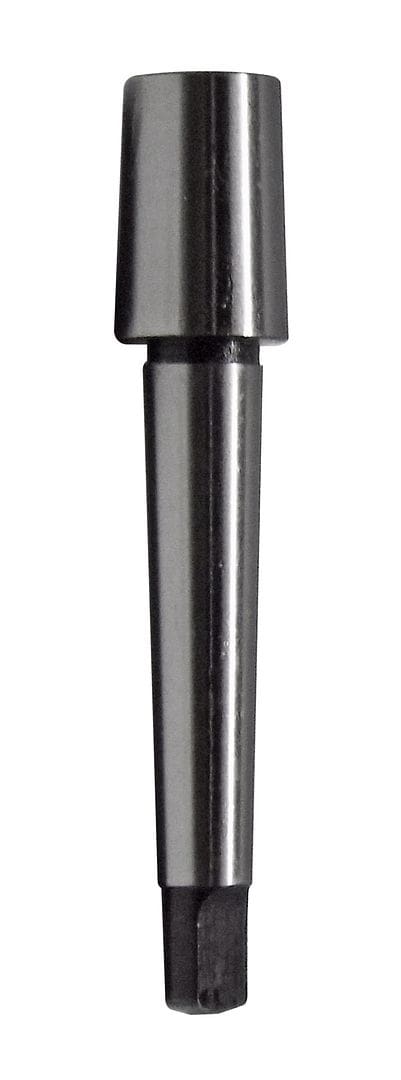

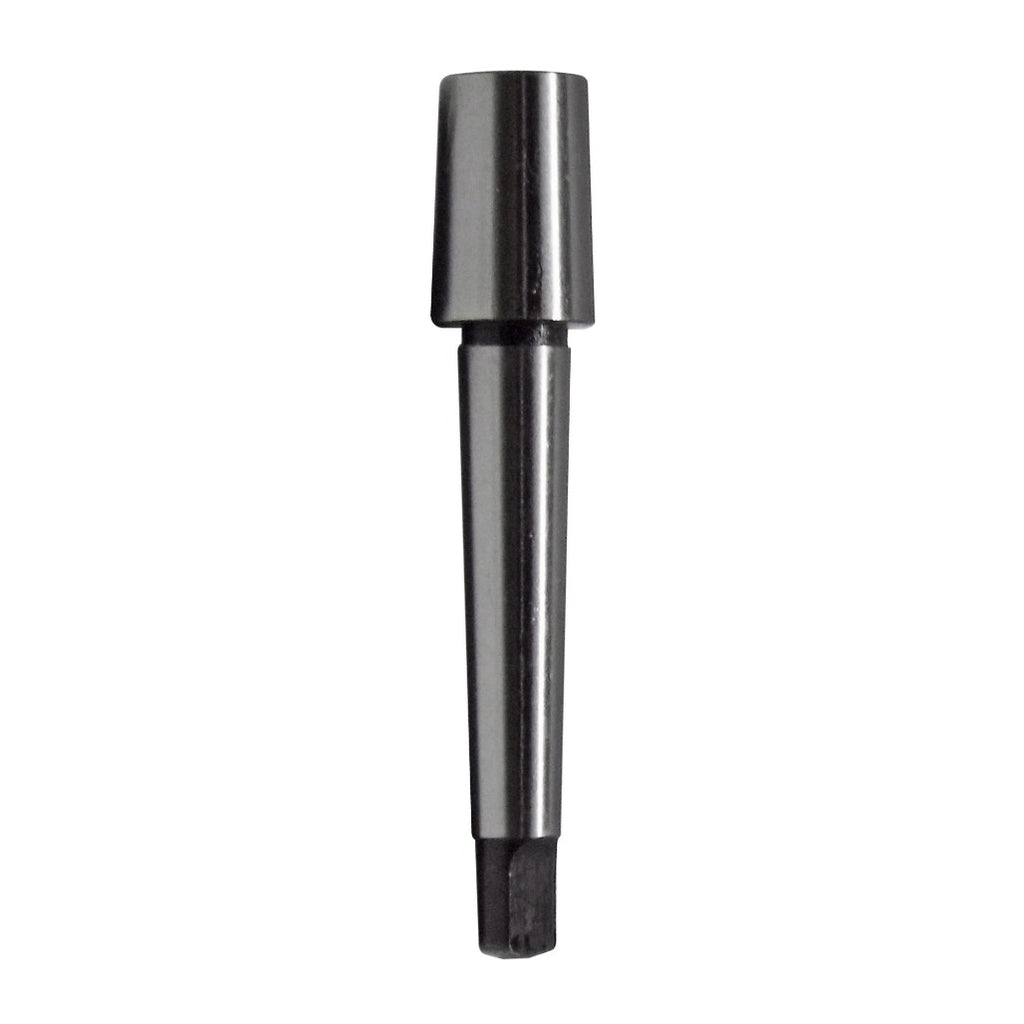

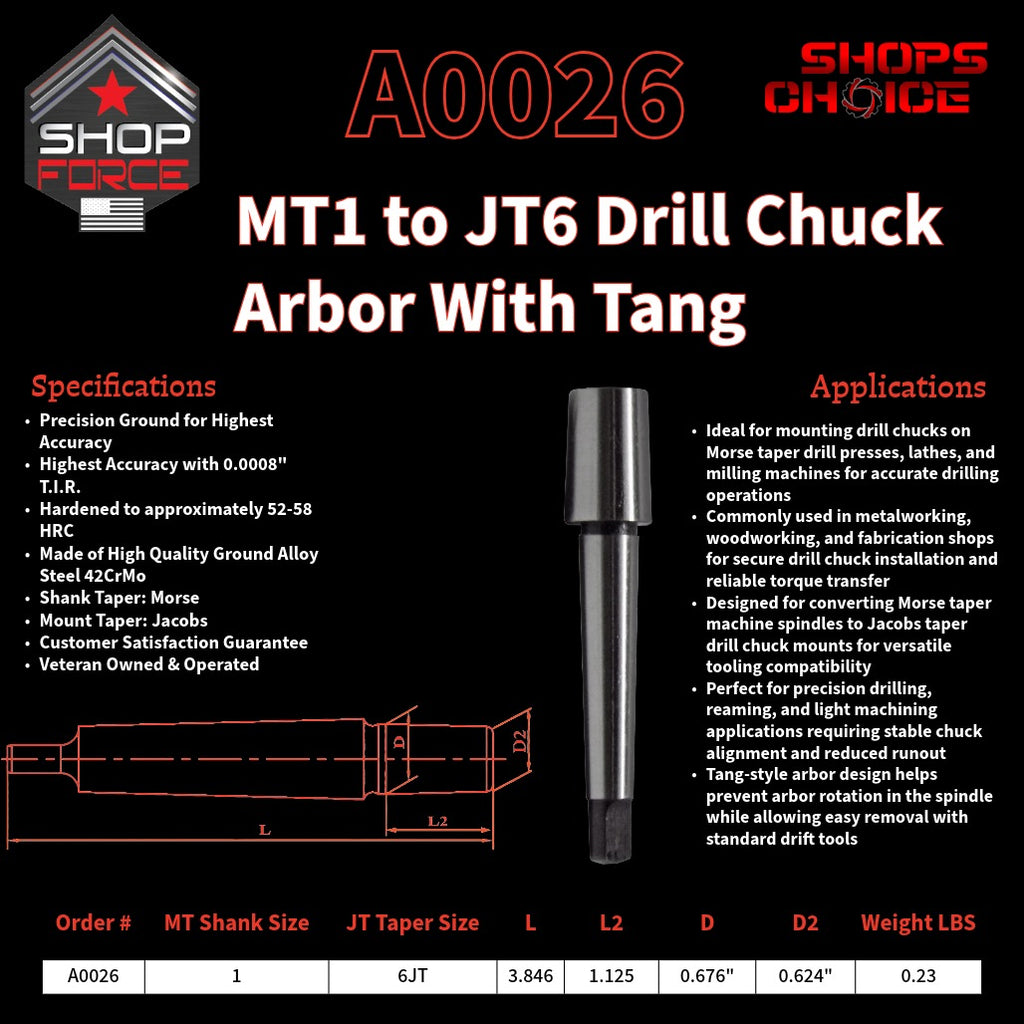

MT1 to JT6 Drill Chuck Arbor With Tang- Shop'sChoice™ (A0026). Precision-ground Morse taper to Jacobs taper drill chuck arbor with tang, designed for secure drill chuck mounting on compatible machines.
Specifications & Tolerances
- HIGHEST ACCURACY: Precision Ground
- HIGHEST TOLERANCE: Taper to Shank Runout < 0.0008"
- Hardened to approximately 52-58 HRC
- Shank Taper: Morse Taper
- Mount Taper: Jacobs Taper
- Made of High Quality Ground Alloy Steel 42CrMo
- Customer Satisfaction Guarantee
- Veteran Owned & Operated
Applications
- Ideal for mounting drill chucks on Morse taper drill presses, lathes, and milling machines for accurate drilling operations
- Commonly used in metalworking, woodworking, and fabrication shops for secure drill chuck installation and reliable torque transfer
- Designed for converting Morse taper machine spindles to Jacobs taper drill chuck mounts for versatile tooling compatibility
- Perfect for precision drilling, reaming, and light machining applications requiring stable chuck alignment and reduced runout
- Tang-style arbor design helps prevent arbor rotation in the spindle while allowing easy removal with standard drift tools

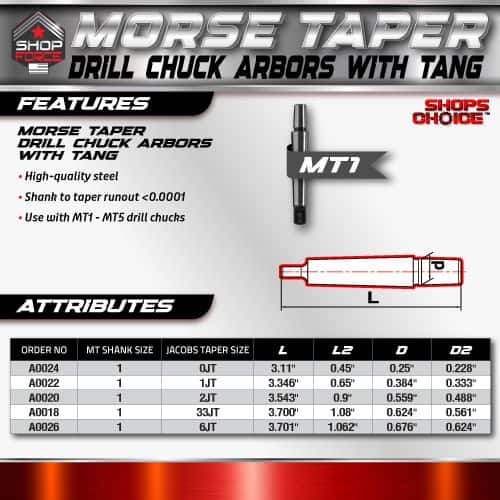

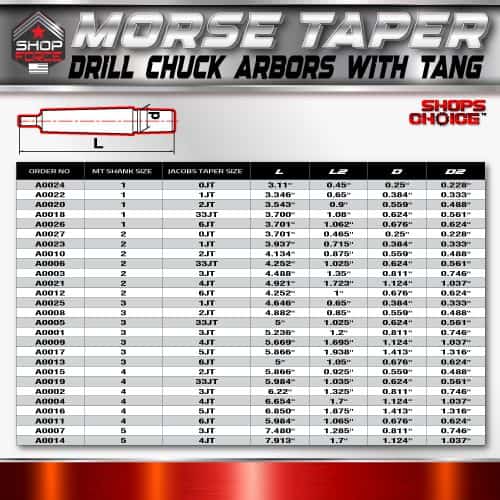

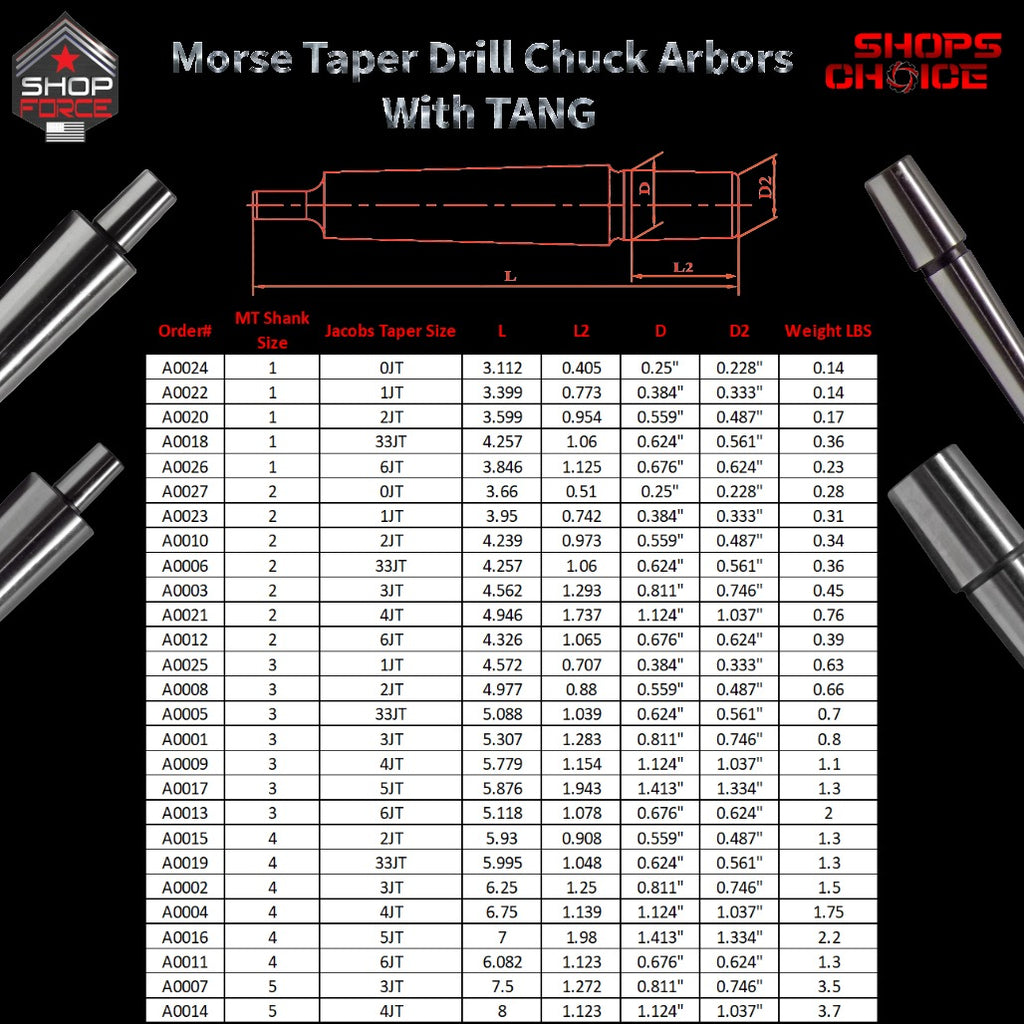

| MT1 Morse Taper With Tang Arbor Comparison | |||||||
|---|---|---|---|---|---|---|---|
| Order# | MT Size | JT Size | L | L2 | D | D2 | Weight LBS |
| A0024 | 1 | 0JT | 3.112 | 0.405 | 0.25" | 0.228" | 0.14 |
| A0022 | 1 | 1JT | 3.399 | 0.773 | 0.384" | 0.333" | 0.14 |
| A0020 | 1 | 2JT | 3.599 | 0.954 | 0.559" | 0.487" | 0.17 |
| A0018 | 1 | 33JT | 3.713 | 1.014 | 0.624" | 0.561" | 0.2 |
| A0026 | 1 | 6JT | 3.846 | 1.125 | 0.676" | 0.624" | 0.23 |
Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.
