ER16 ULTRA HIGH PRECISION SPRING COLLET INCH 7/32" - CP006 - CP006
$22.66

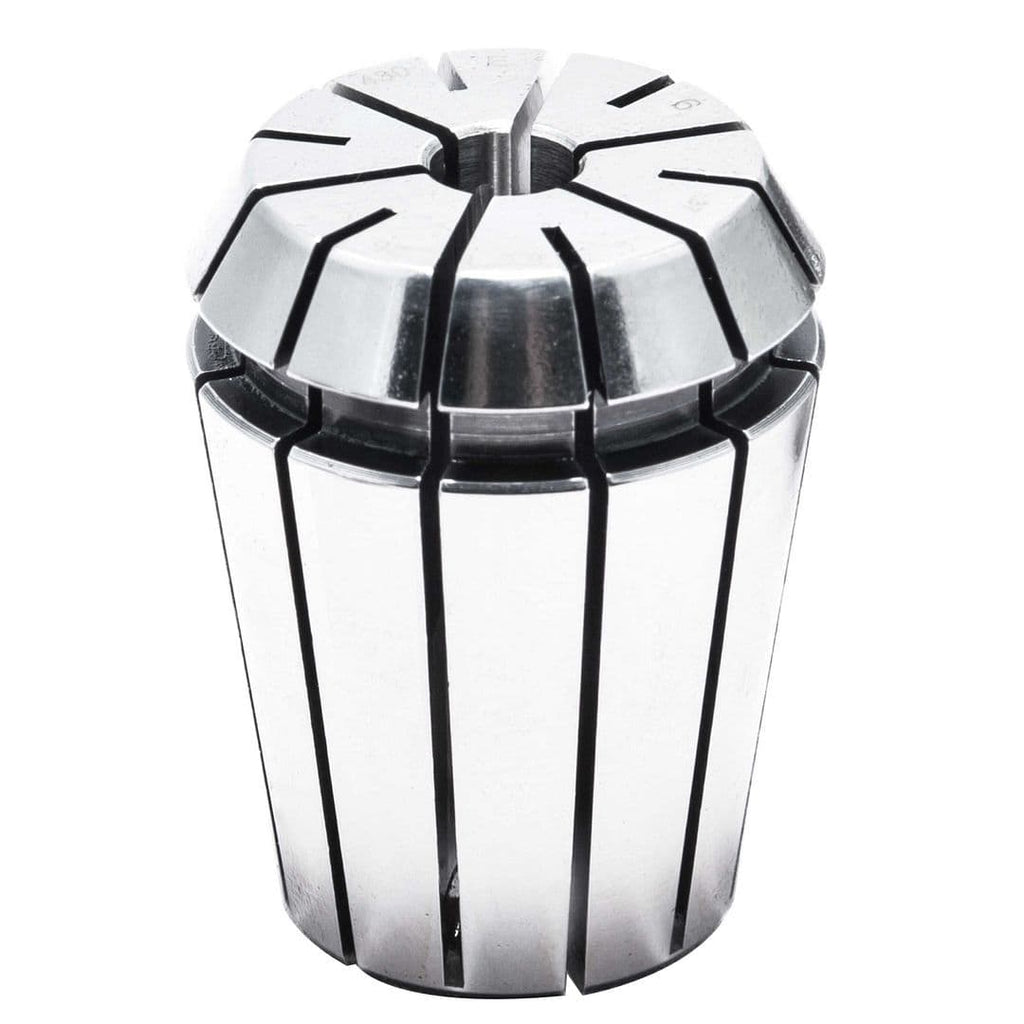

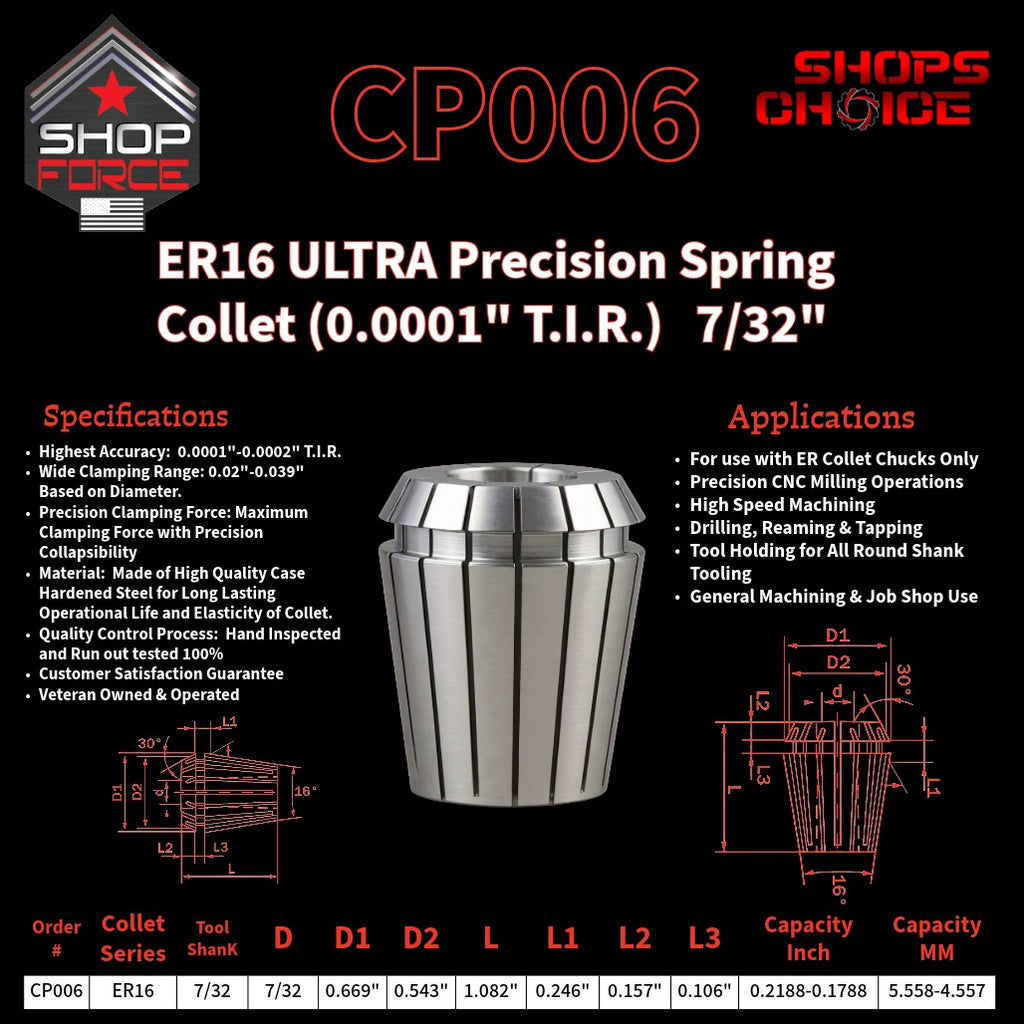

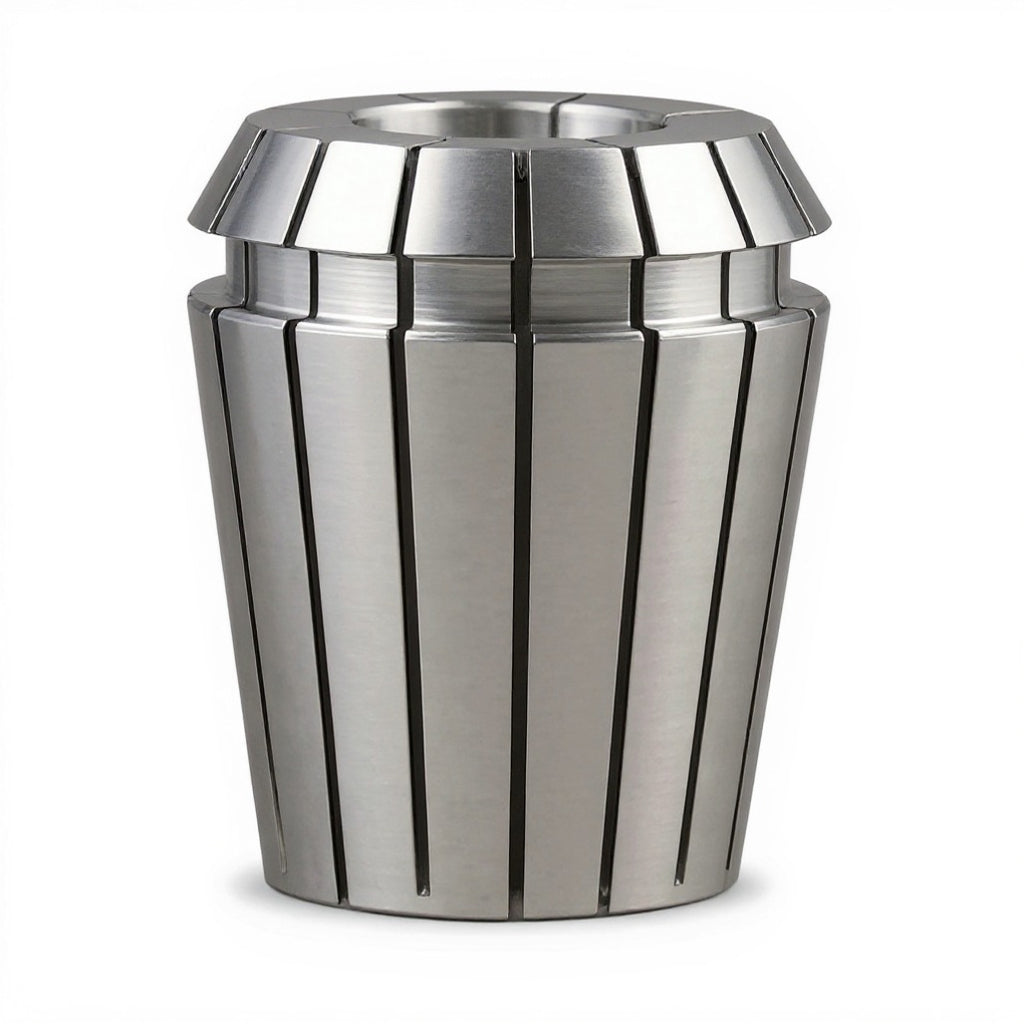

ER16 ULTRA Precision Spring Collet Shop'sChoice™ 7/32". Ultra Precision ER spring collet for accurate, secure toolholding in professional machining applications.
Specifications & Tolerances
- HIGHEST ACCURACY: Ultra Precision Spring Collets 0.0001"-0.0002" T.I.R.
- WIDE CLAMPING RANGE: Clamping Range 0.02"-0.039" Depending on Diameter.
- PRECISION CLAMPING FORCE: Provides Maximum Clamping force around tool with Precision Collapsability.
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet.
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications
- For Use with ER Collet Chucks

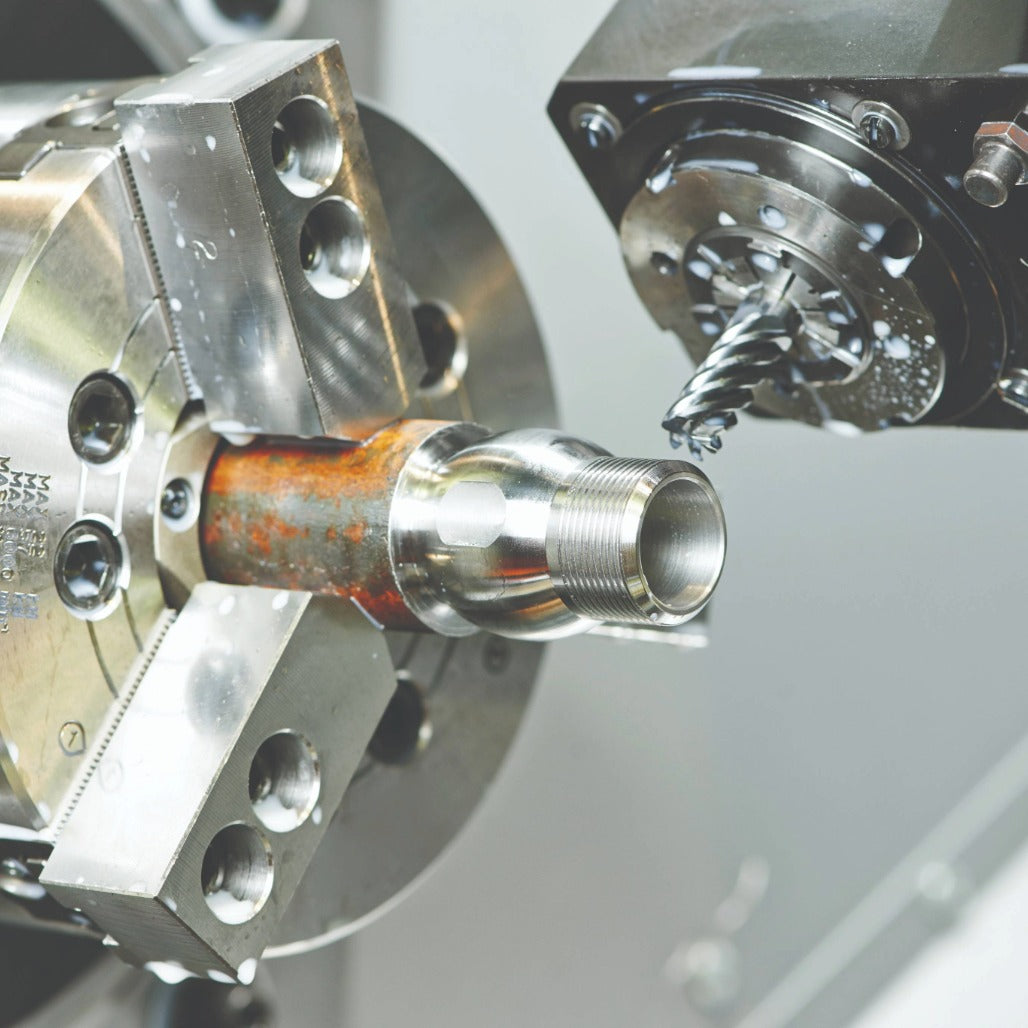

- Precision CNc Milling Operations
- High-Speed Machining (HSM)
- Drilling, Reaming & Tapping
- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

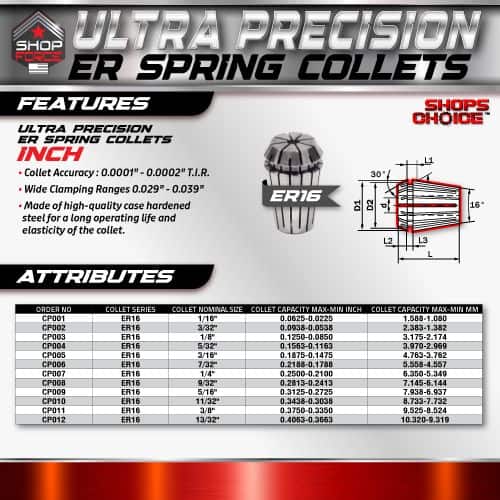

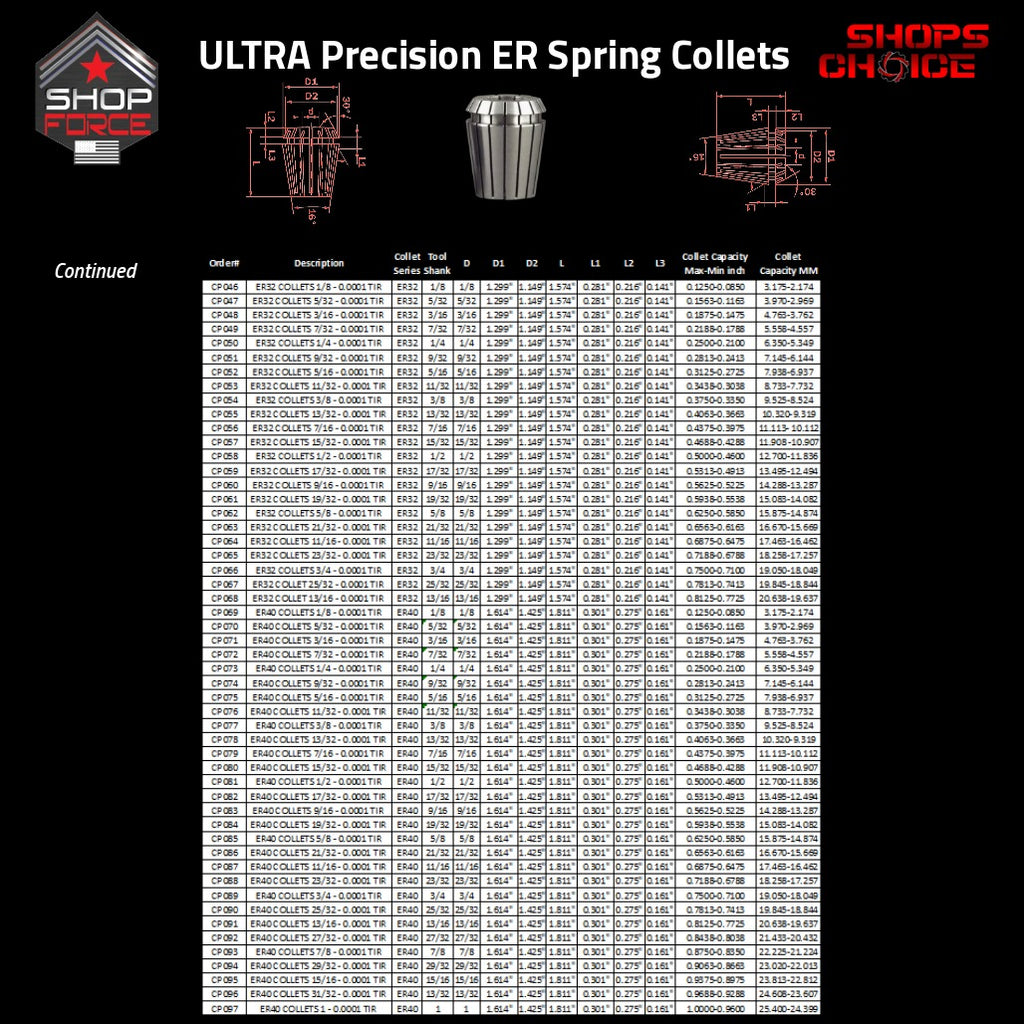

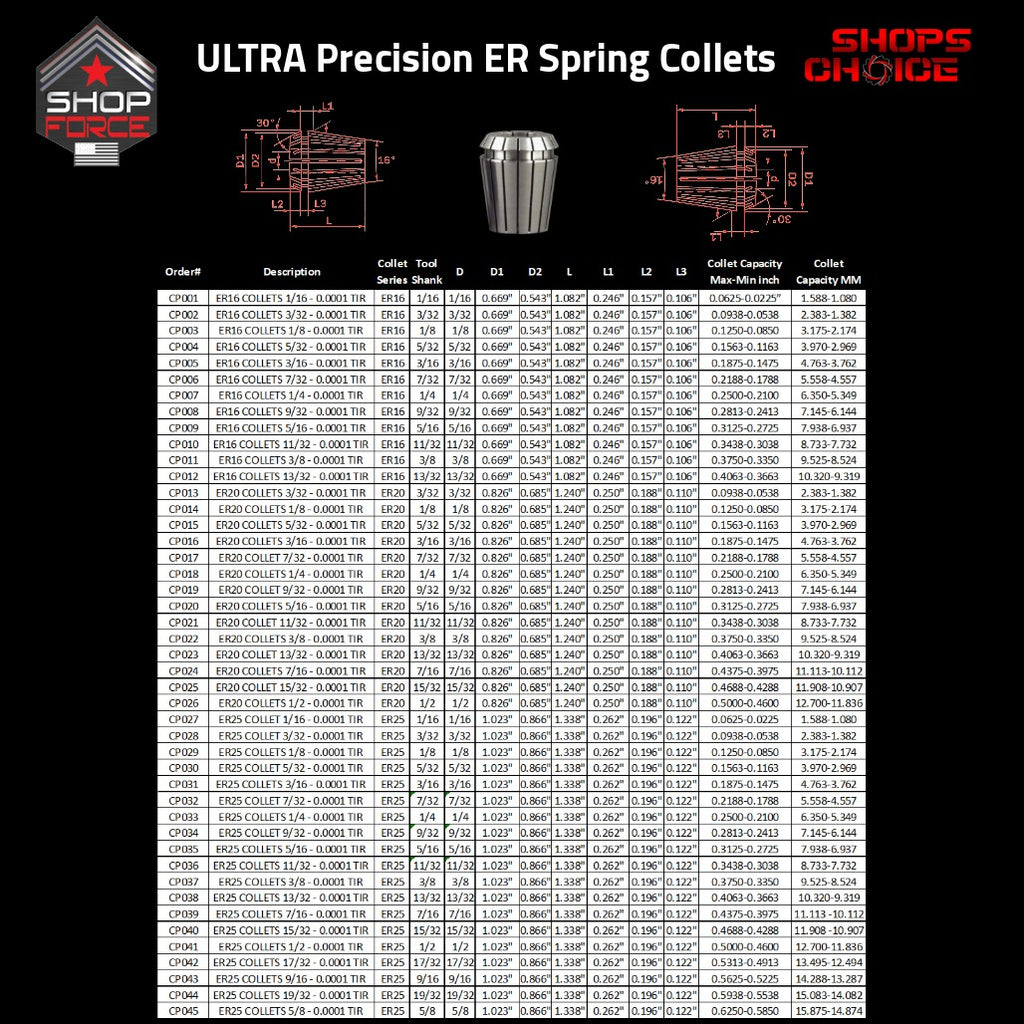

| Order# | Description | Collet Series | Tool Shank | D | D1 | D2 | L | L1 | L2 | L3 | Collet Capacity Max-Min inch | Collet Capacity MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CP001 | ER16 COLLETS 1/16 - 0.0001 TIR | ER16 | 1/16 | 1/16 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.0625-0.0225” | 1.588-1.080 |
| CP002 | ER16 COLLETS 3/32 - 0.0001 TIR | ER16 | 3/32 | 3/32 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.0938-0.0538 | 2.383-1.382 |
| CP003 | ER16 COLLETS 1/8 - 0.0001 TIR | ER16 | 1/8 | 1/8 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.1250-0.0850 | 3.175-2.174 |
| CP004 | ER16 COLLETS 5/32 - 0.0001 TIR | ER16 | 5/32 | 5/32 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.1563-0.1163 | 3.970-2.969 |
| CP005 | ER16 COLLETS 3/16 - 0.0001 TIR | ER16 | 3/16 | 3/16 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.1875-0.1475 | 4.763-3.762 |
| CP006 | ER16 COLLETS 7/32 - 0.0001 TIR | ER16 | 7/32 | 7/32 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.2188-0.1788 | 5.558-4.557 |
| CP007 | ER16 COLLETS 1/4 - 0.0001 TIR | ER16 | 1/4 | 1/4 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.2500-0.2100 | 6.350-5.349 |
| CP008 | ER16 COLLETS 9/32 - 0.0001 TIR | ER16 | 9/32 | 9/32 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.2813-0.2413 | 7.145-6.144 |
| CP009 | ER16 COLLETS 5/16 - 0.0001 TIR | ER16 | 5/16 | 5/16 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.3125-0.2725 | 7.938-6.937 |
| CP010 | ER16 COLLETS 11/32 - 0.0001 TIR | ER16 | 11/32 | 11/32 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.3438-0.3038 | 8.733-7.732 |
| CP011 | ER16 COLLETS 3/8 - 0.0001 TIR | ER16 | 3/8 | 3/8 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.3750-0.3350 | 9.525-8.524 |
| CP012 | ER16 COLLETS 13/32 - 0.0001 TIR | ER16 | 13/32 | 13/32 | 0.669" | 0.543" | 1.082" | 0.246" | 0.157" | 0.106" | 0.4063-0.3663 | 10.320-9.319 |
