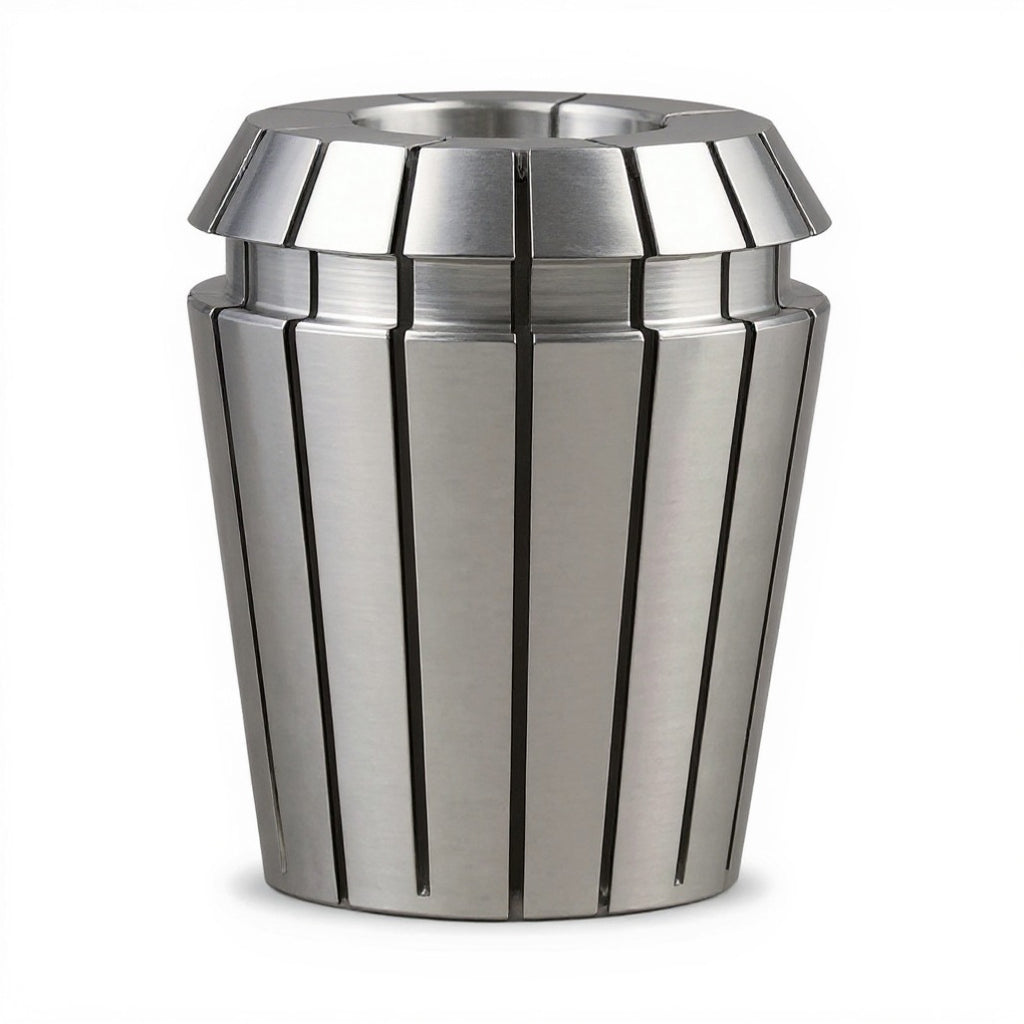

ER20 HIGH PRECISION SPRING COLLET INCH 3/8" - CS029 - CS029
$13.93

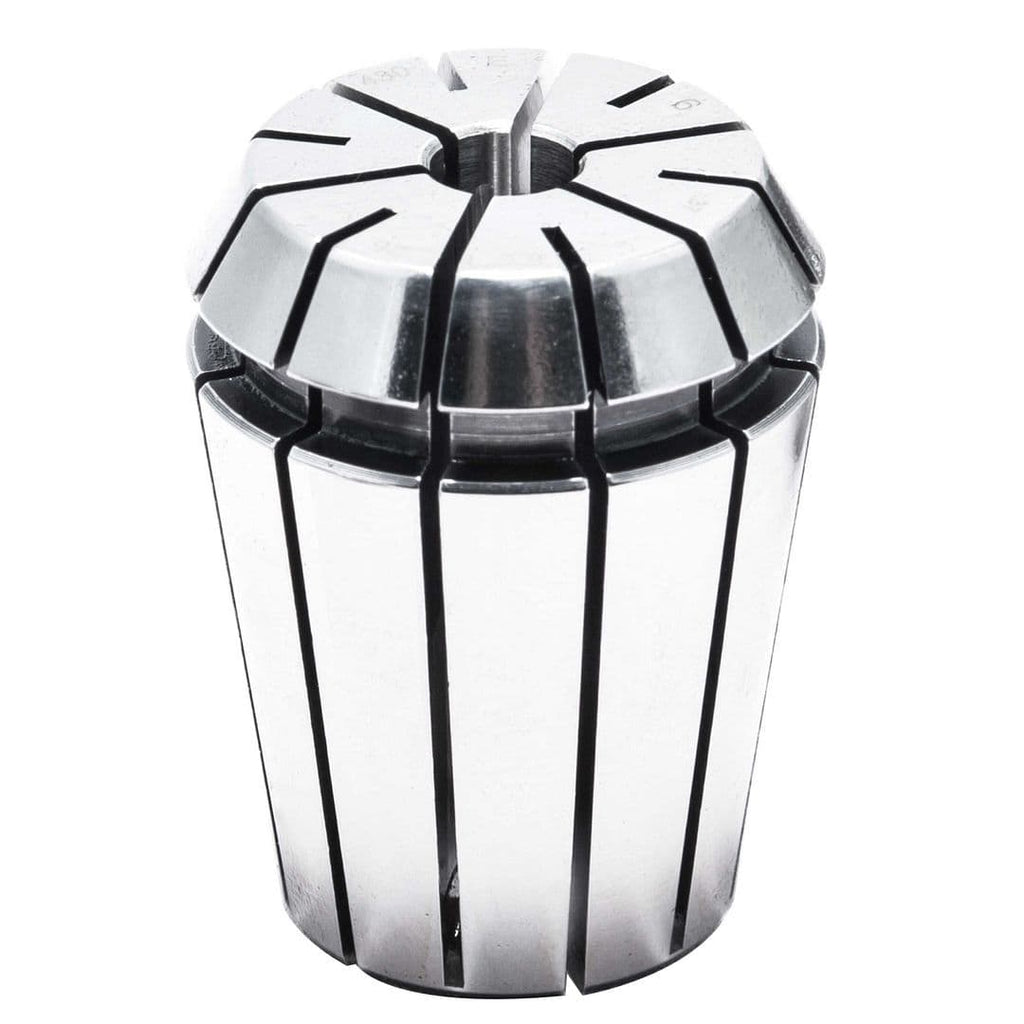

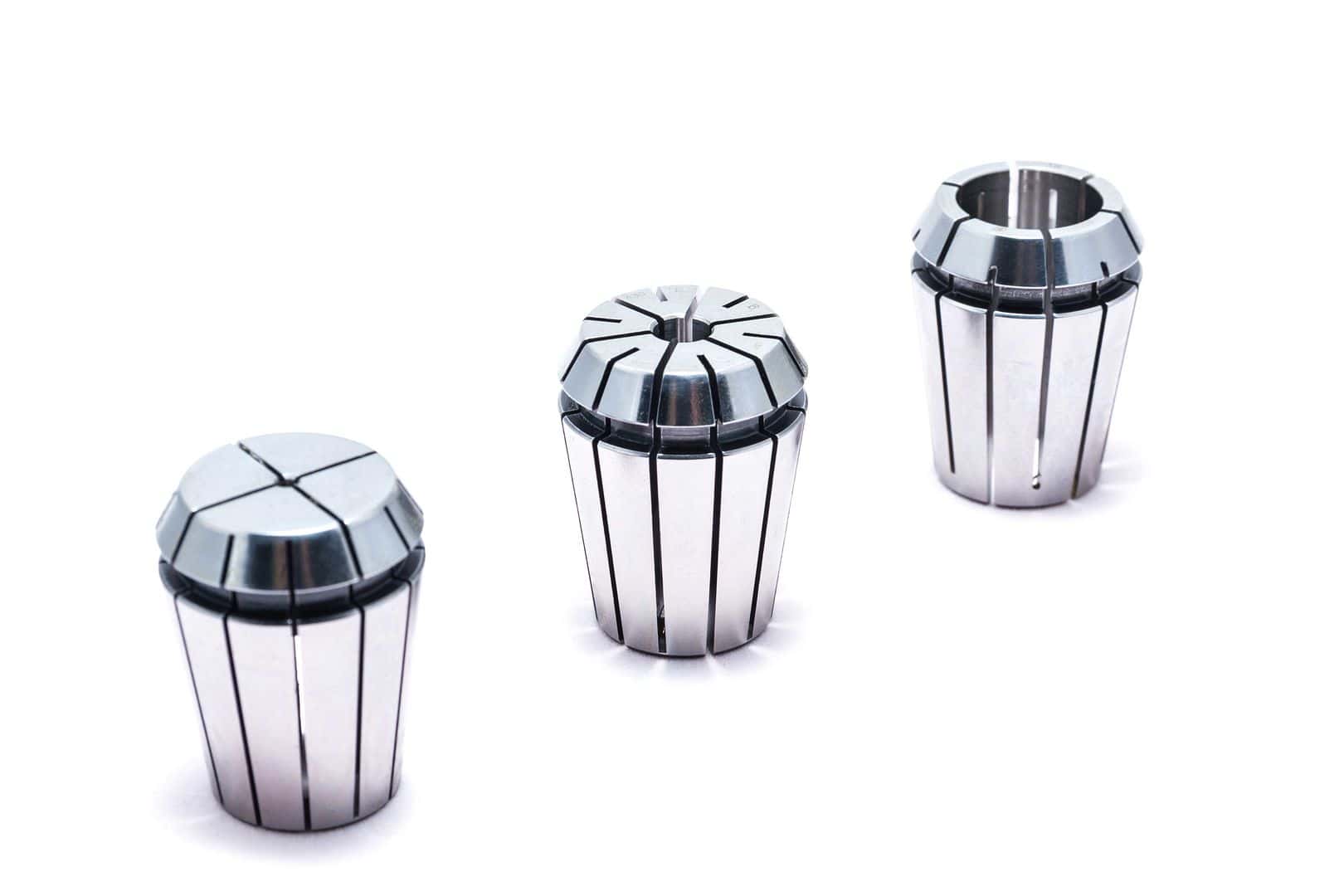

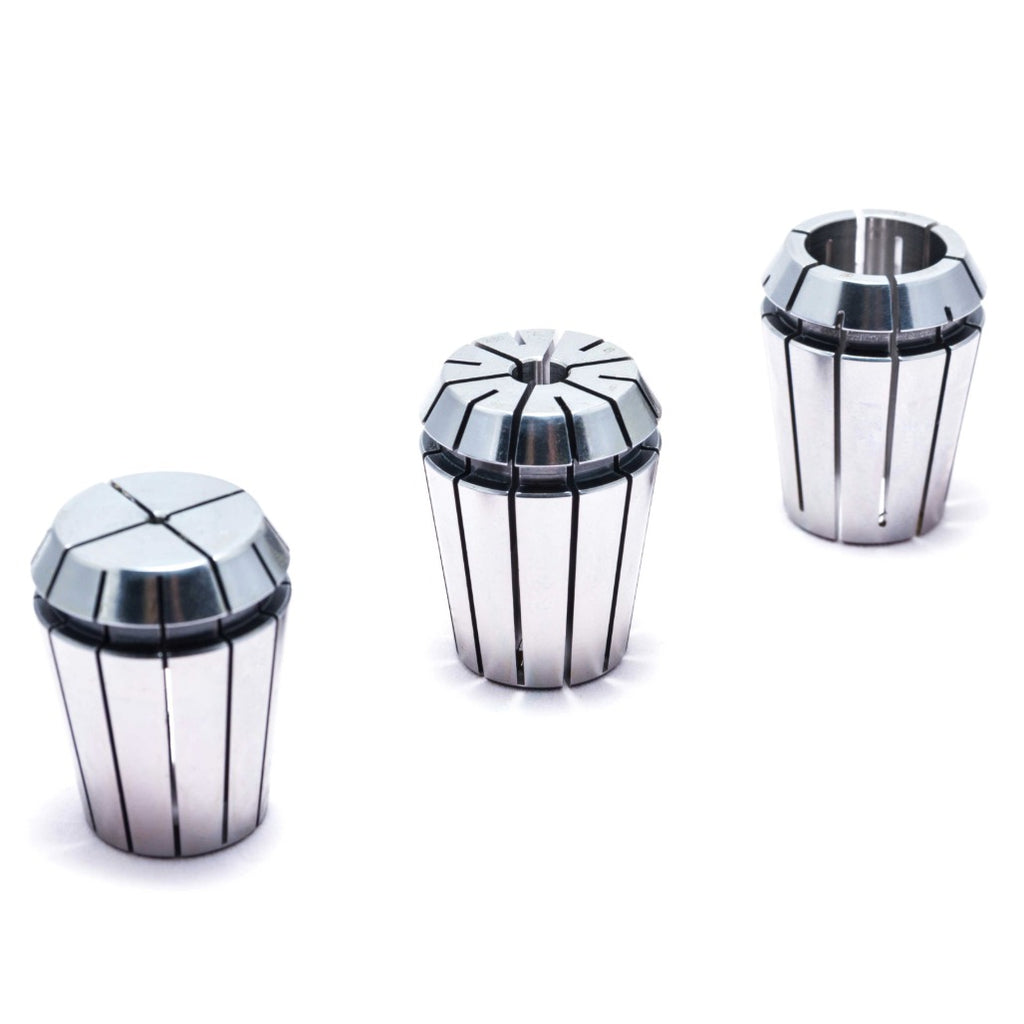

Shop-Force ER 20 High Precision Spring Collet INCH Shop'sChoice™ 3/8". Precision-machined for use with compatible ER20 collet chuck systems.

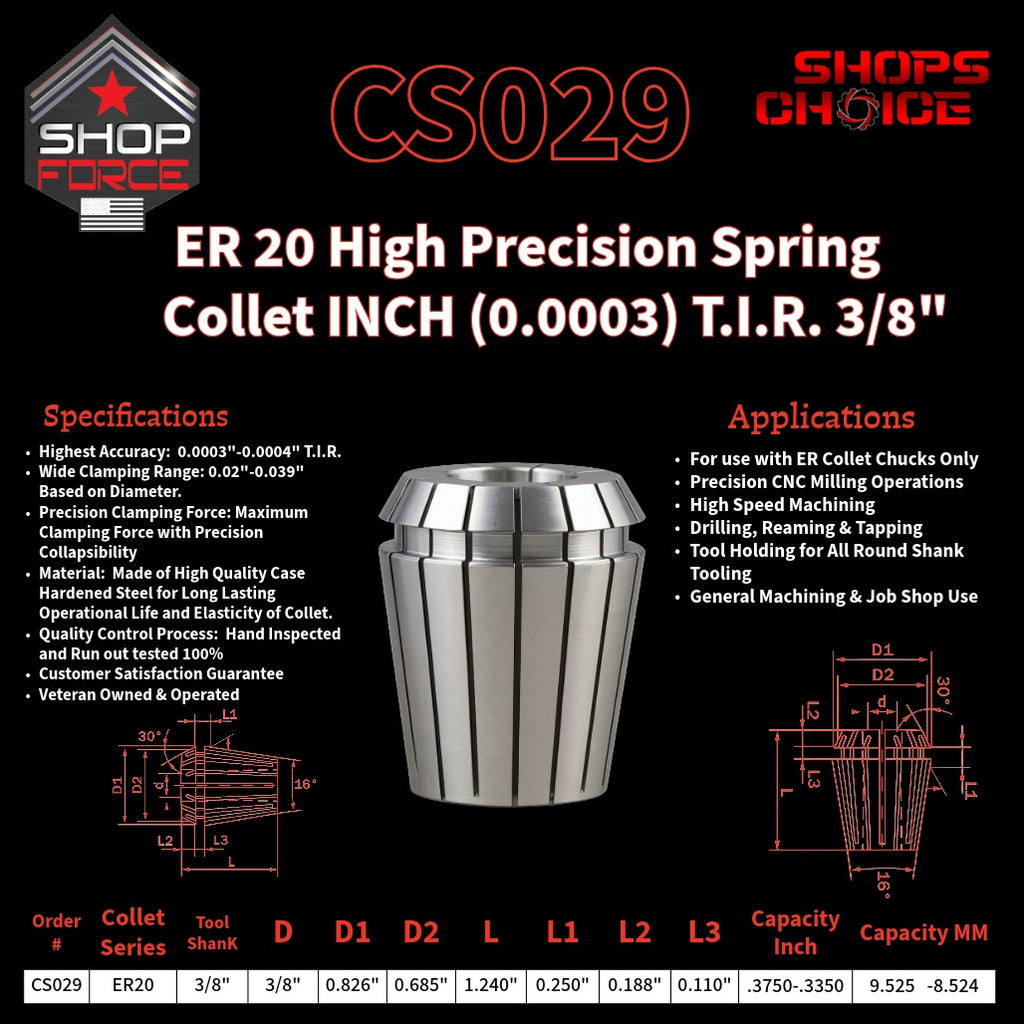

Specifications & Tolerances
- Use of Tool: To be used with ER Collet Chuck System in a Mill or Lathe
- HIGHEST ACCURACY: Collet Accuracy: 0.0003"-0.0004" T.I.R.
- WIDE CLAMPING RANGE: Clamping Range 0.02"-0.039" Depending on Diameter.
- PRECISION CLAMPING FORCE: Provides Maximum Clamping force with Precision Collapsability.
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet.
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated

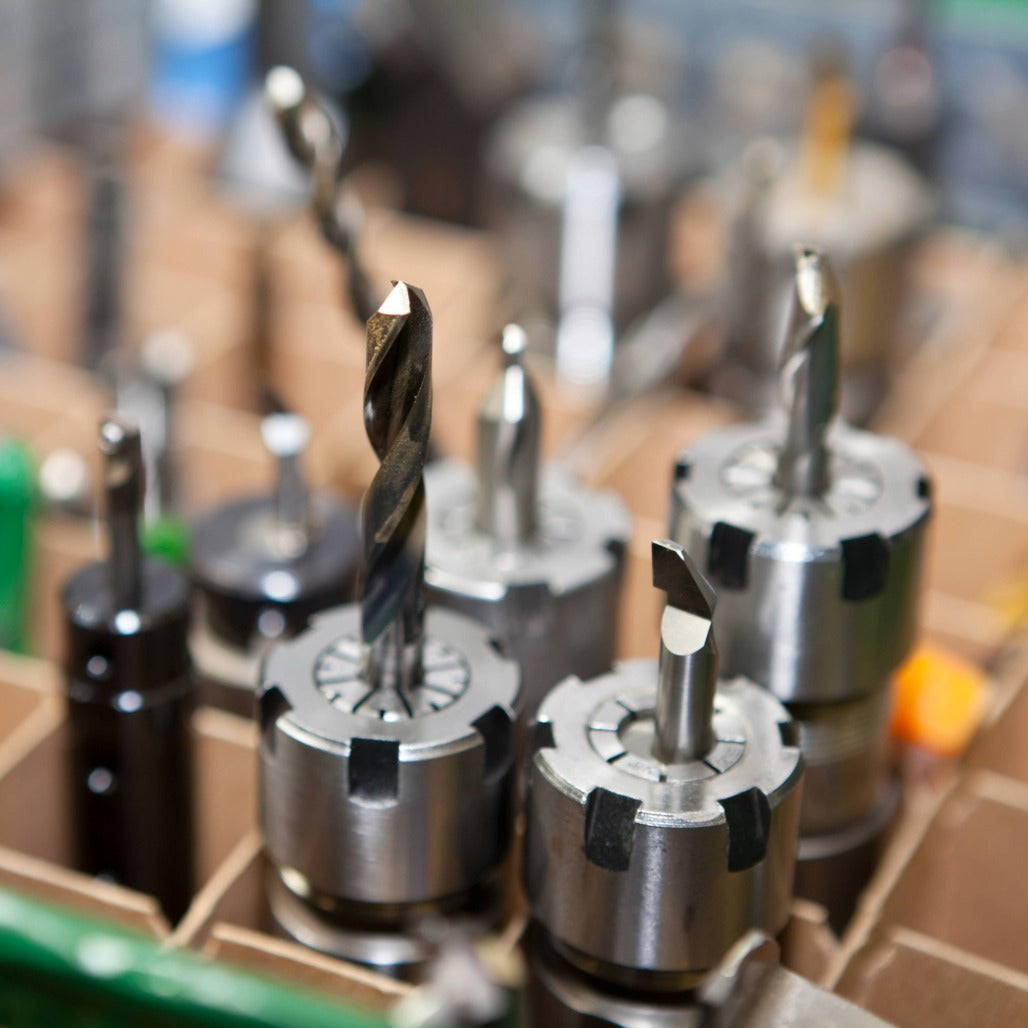

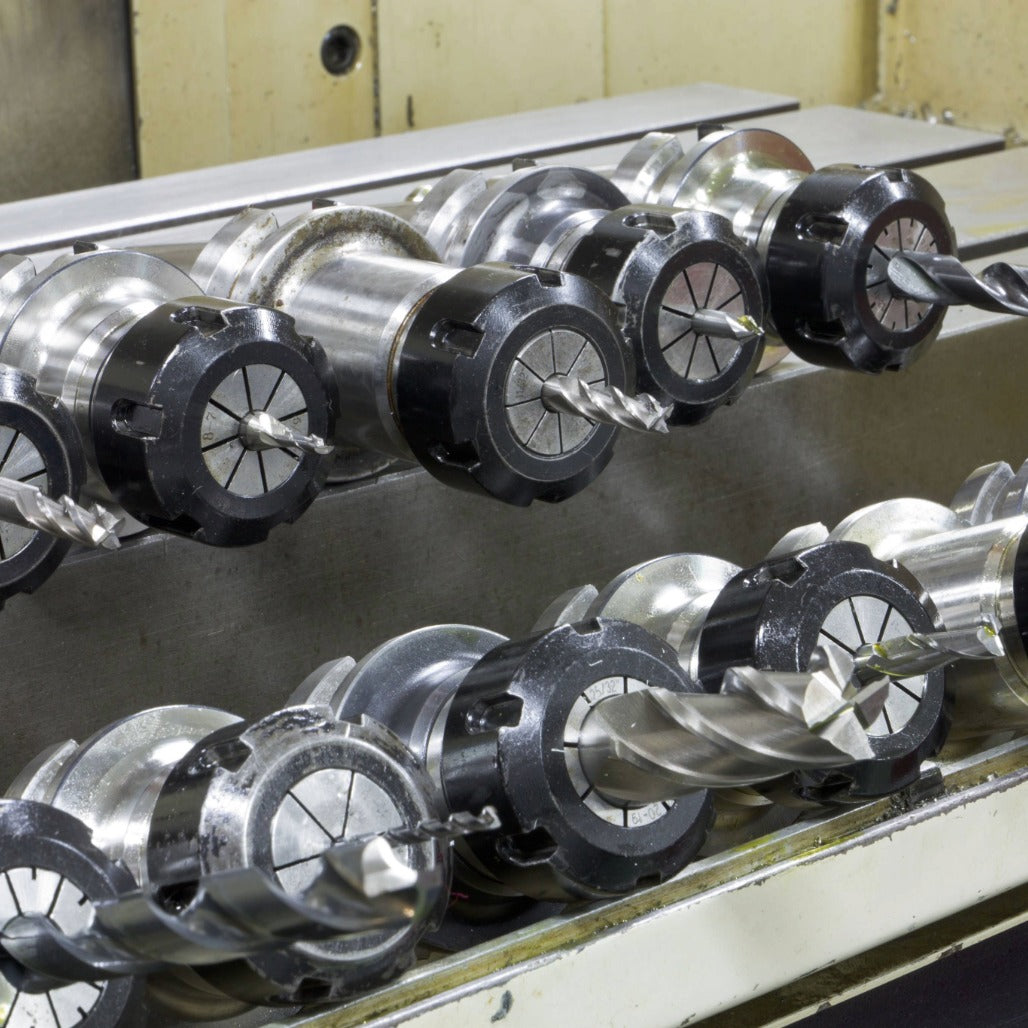

Applications
- For Use with ER Collet Chucks ONLY
- Precision CNc Milling Operations
- High-Speed Machining (HSM)
- Drilling, Reaming & Tapping
- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

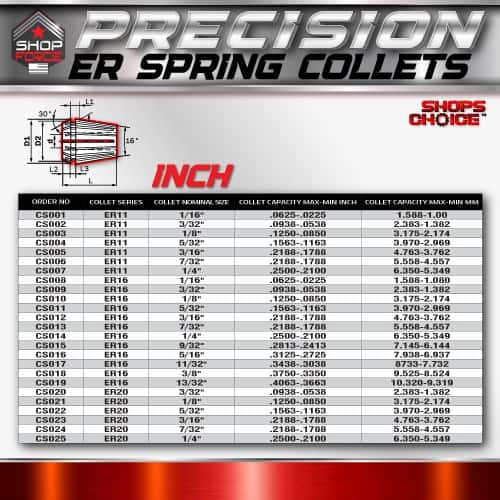

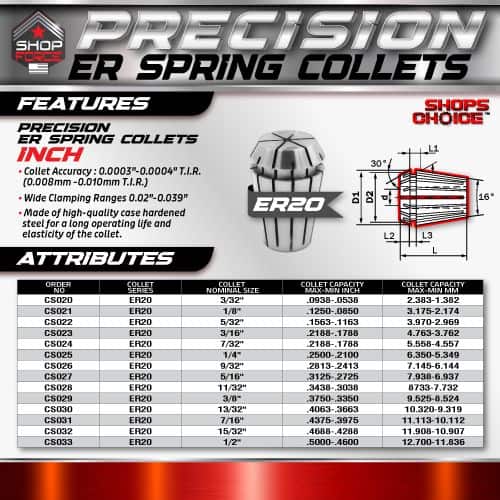

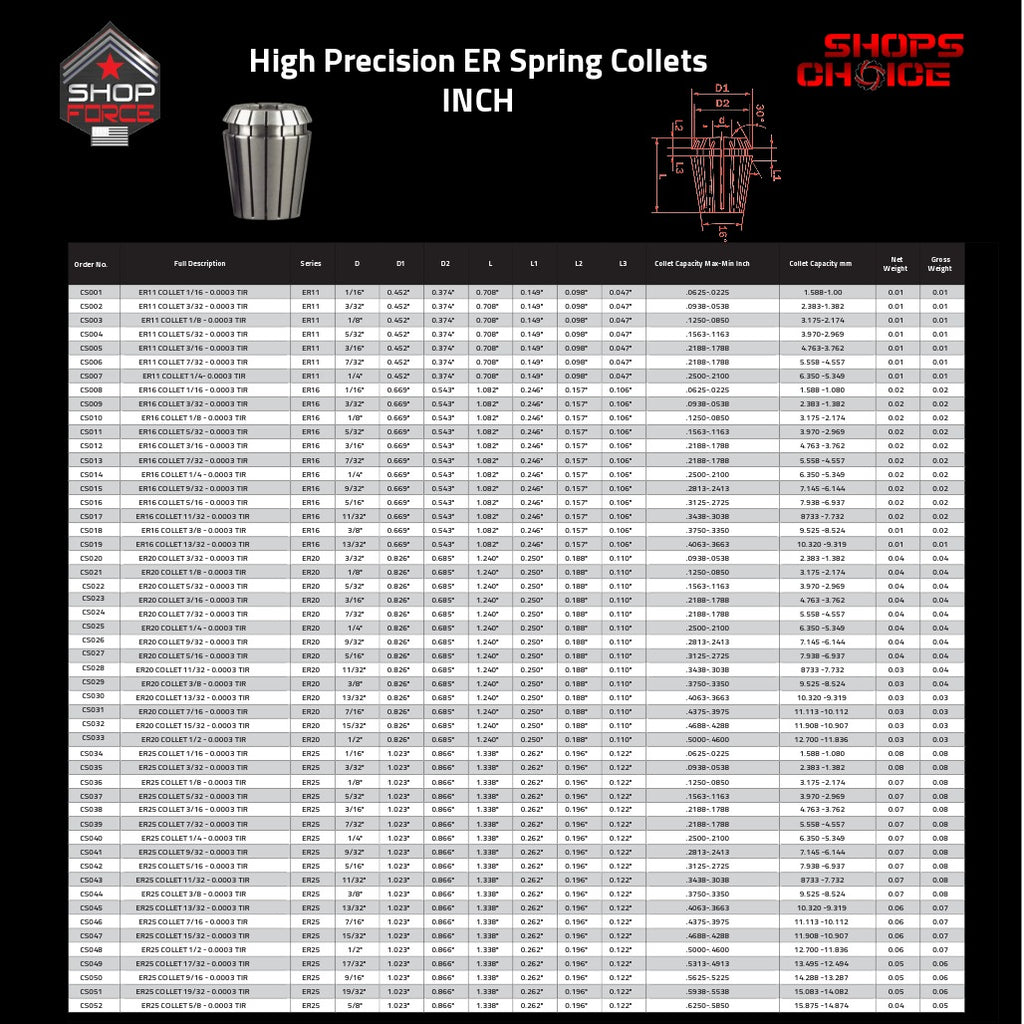

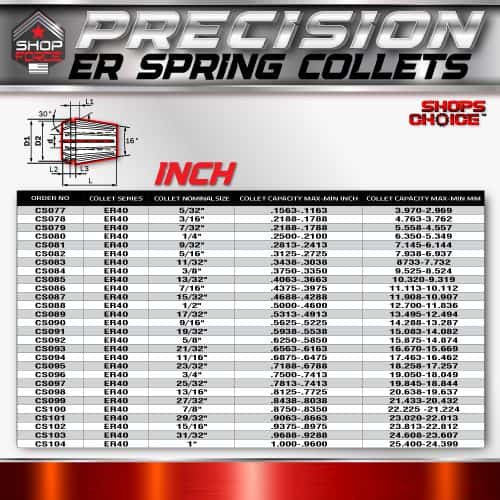

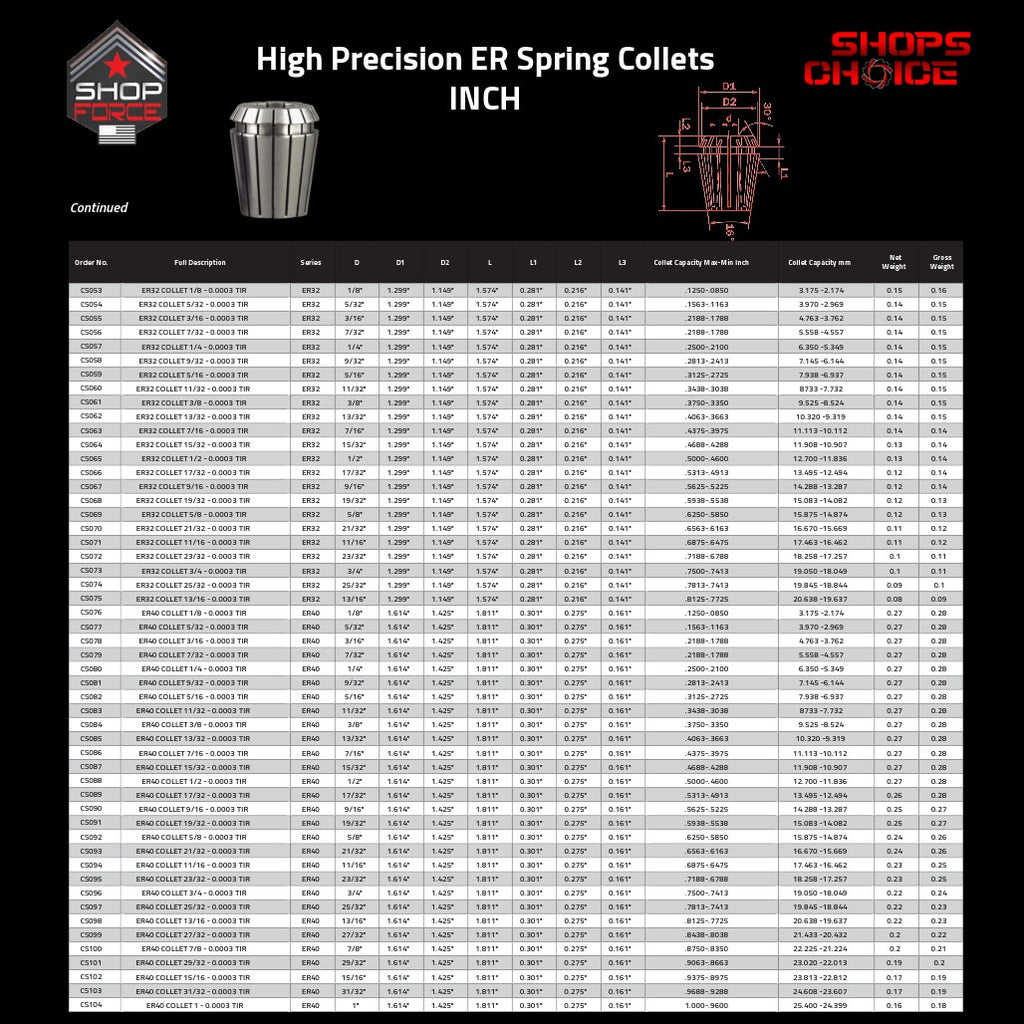

ER20 High Precision ER Inch Collets - Size and Dimensions
| Order# | Collet Series | Tool Shank | D | D1 | D2 | L | L1 | L2 | L3 | Collet Capacity Max-Min inch | Collet Capacity Max-Min MM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CS020 | ER20 | 3/32" | 3/32" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .0938-.0538 | 2.383 -1.382 |
| CS021 | ER20 | 1/8" | 1/8" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .1250-.0850 | 3.175 -2.174 |
| CS022 | ER20 | 5/32" | 5/32" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .1563-.1163 | 3.970 -2.969 |
| CS023 | ER20 | 3/16" | 3/16" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .1875-.1475 | 4.763 -3.762 |
| CS024 | ER20 | 7/32" | 7/32" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .2188-.1788 | 5.558 -4.557 |
| CS025 | ER20 | 1/4" | 1/4" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .2500-.2100 | 6.350 -5.349 |
| CS026 | ER20 | 9/32" | 9/32" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .2813-.2413 | 7.145 -6.144 |
| CS027 | ER20 | 5/16" | 5/16" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .3125-.2725 | 7.938 -6.937 |
| CS028 | ER20 | 11/32" | 11/32" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .3438-.3038 | 8733 -7.732 |
| CS029 | ER20 | 3/8" | 3/8" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .3750-.3350 | 9.525 -8.524 |
| CS030 | ER20 | 13/32 | 13/32 | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .4063-.3663 | 10.320 -9.319 |
| CS031 | ER20 | 7/16" | 7/16" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .4375-.3975 | 11.113 -10.112 |
| CS032 | ER20 | 15/32 | 15/32 | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .4688-.4288 | 11.908 -10.907 |
| CS033 | ER20 | 1/2" | 1/2" | 0.826" | 0.685" | 1.240" | 0.250" | 0.188" | 0.110" | .5000-.4600 | 12.700 -11.836 |
Shop-Force Quality
Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
