ER11 HIGH PRECISION SPRING COLLET SET Shop'sChoice - CS206 - CS206
$80.75

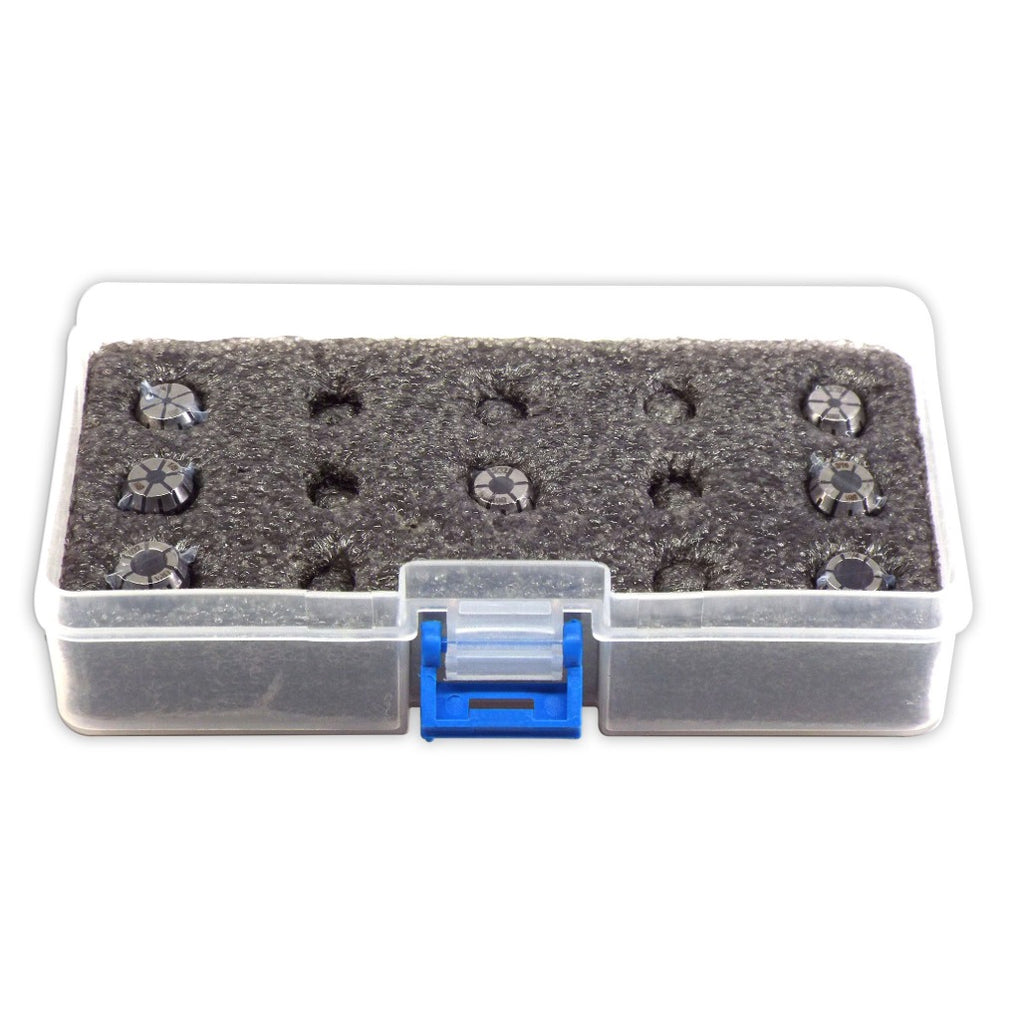

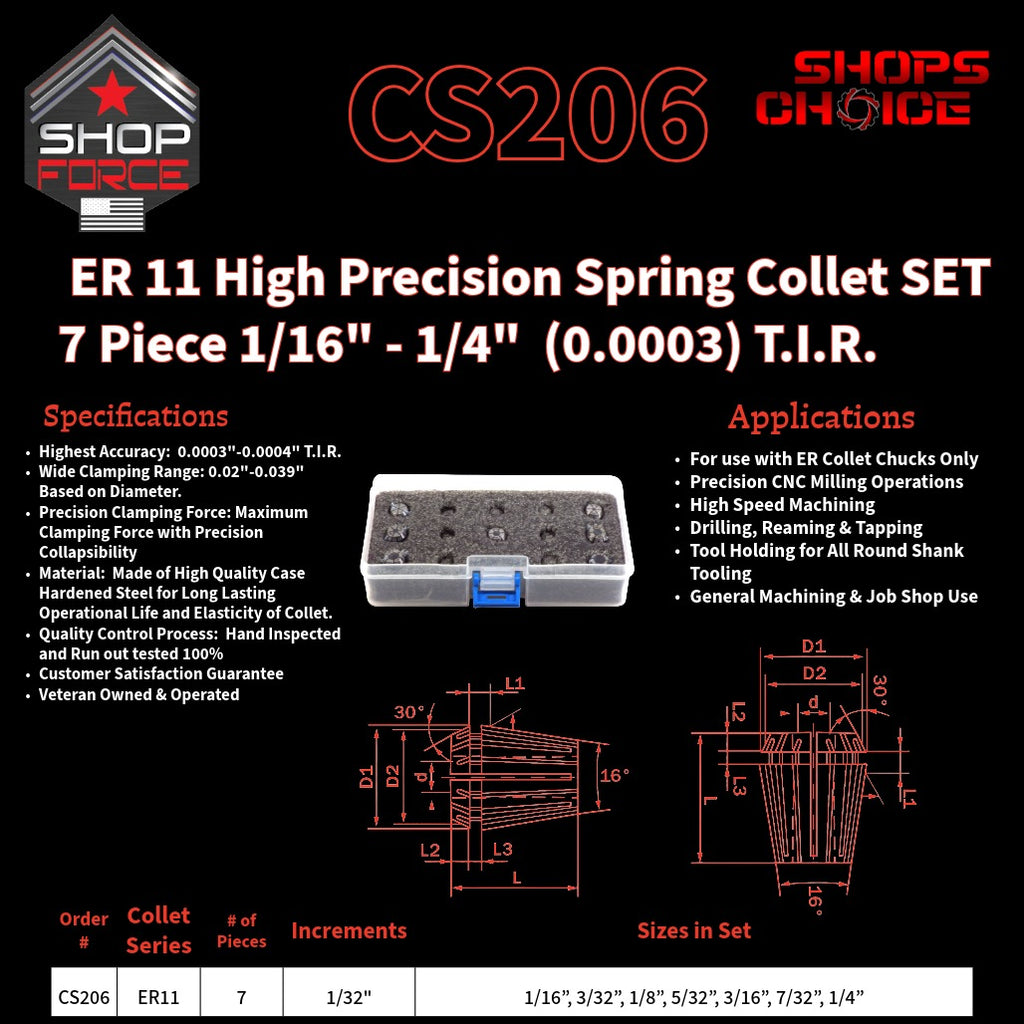

Shop-Force ER 11 High Precision Spring Collet SET 7 Piece 1/16" - 1/4". Precision-machined for use with compatible ER11 collet chuck systems.
Specifications & Tolerances
- Use of Tool: To be used with ER Collet Chuck System in a Mill or Lathe
- HIGHEST ACCURACY: Collet Accuracy: 0.0003"-0.0004" T.I.R.
- WIDE CLAMPING RANGE: Clamping Range 0.02"-0.039" Depending on Diameter.
- PRECISION CLAMPING FORCE: Provides Maximum Clamping force with Precision Collapsability.
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet.
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications
- For Use with ER Collet Chucks
- Precision CNc Milling Operations
- High-Speed Machining (HSM)
- Drilling, Reaming & Tapping
- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

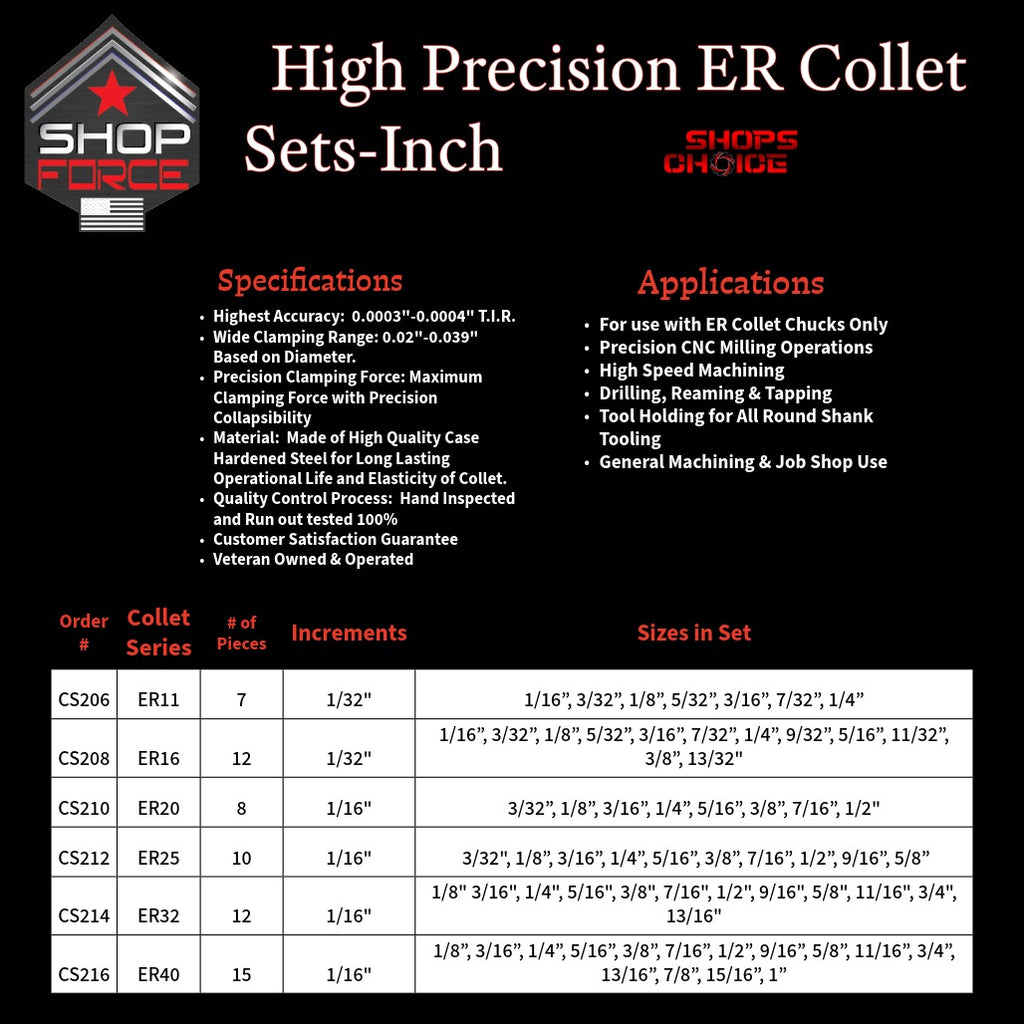

High Precision Inch ER Collet Sets — All Available Sets
| Order# | Collet Series | Pieces | Increments | Sizes in Set |
|---|---|---|---|---|
| CS206 | ER11 | 7 | 1/32" | 1/16”, 3/32”, 1/8”, 5/32”, 3/16”, 7/32”, 1/4” |
| CS208 | ER16 | 12 | 1/32" | 1/16”, 3/32”, 1/8”, 5/32”, 3/16”, 7/32”, 1/4”, 9/32”, 5/16”, 11/32”, 3/8”, 13/32” |
| CS210 | ER20 | 8 | 1/16" | 3/32”, 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2” |
| CS212 | ER25 | 10 | 1/16" | 3/32", 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8” |
| CS214 | ER32 | 12 | 1/16" | 1/8" 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16" |
| CS216 | ER40 | 15 | 1/16" | 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 13/16”, 7/8”, 15/16”, 1” |
Shop-Force Quality
Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
