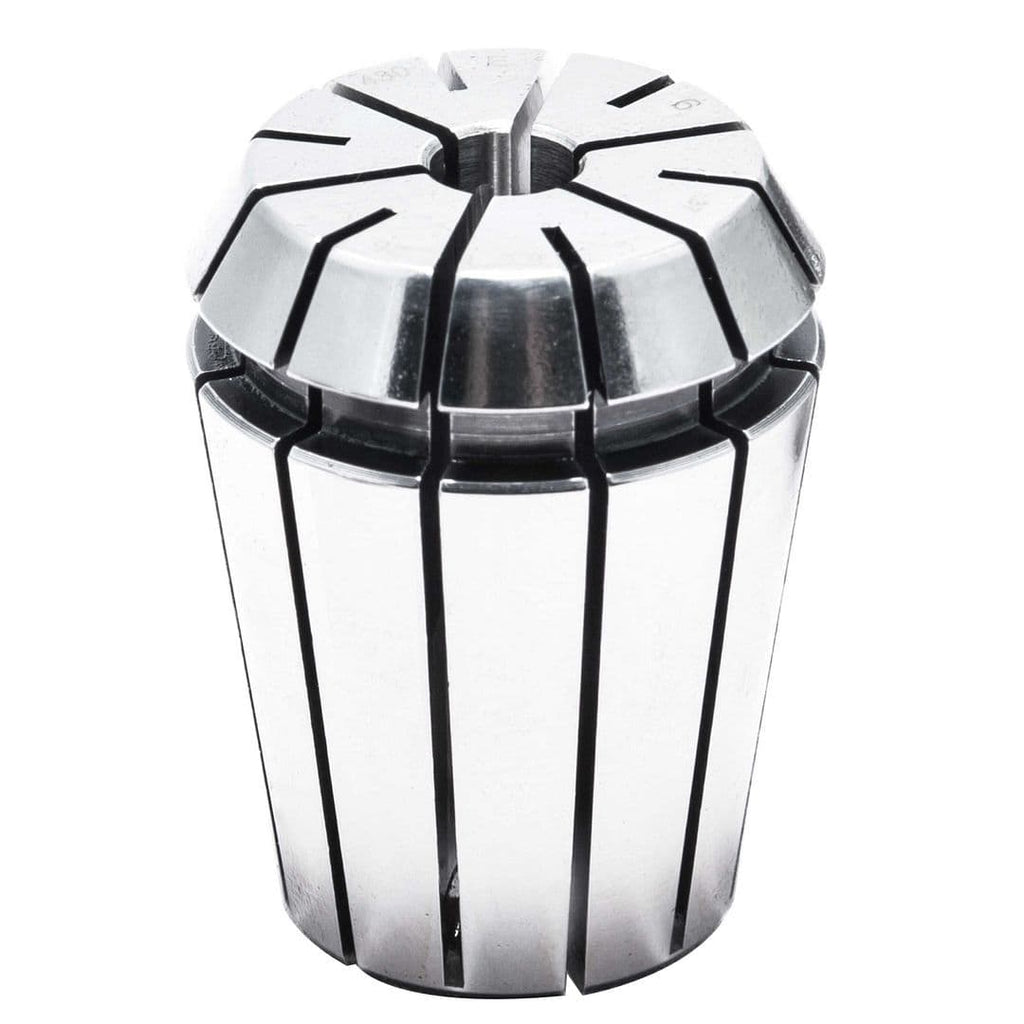

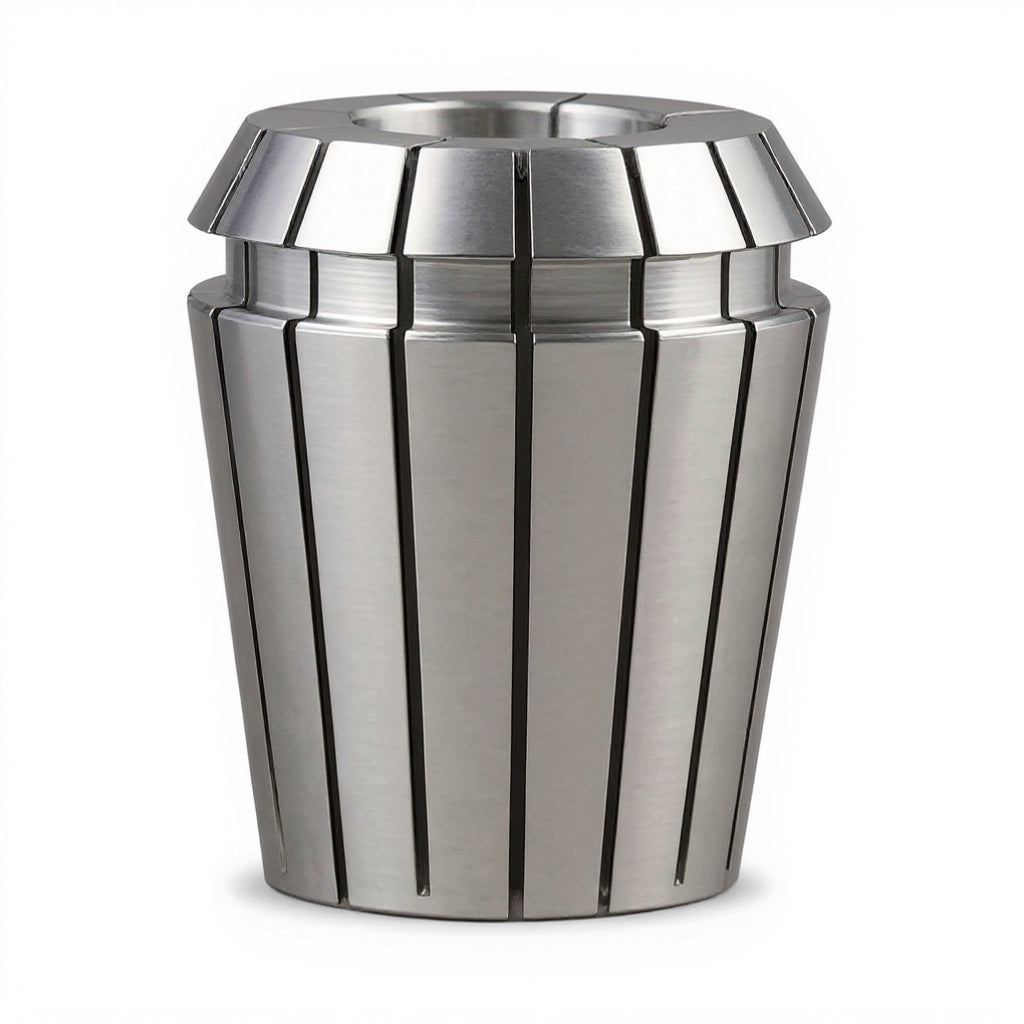

ER11 HIGH PRECISION SPRING COLLET METRIC 5MM - CS113 - CS113
$13.93

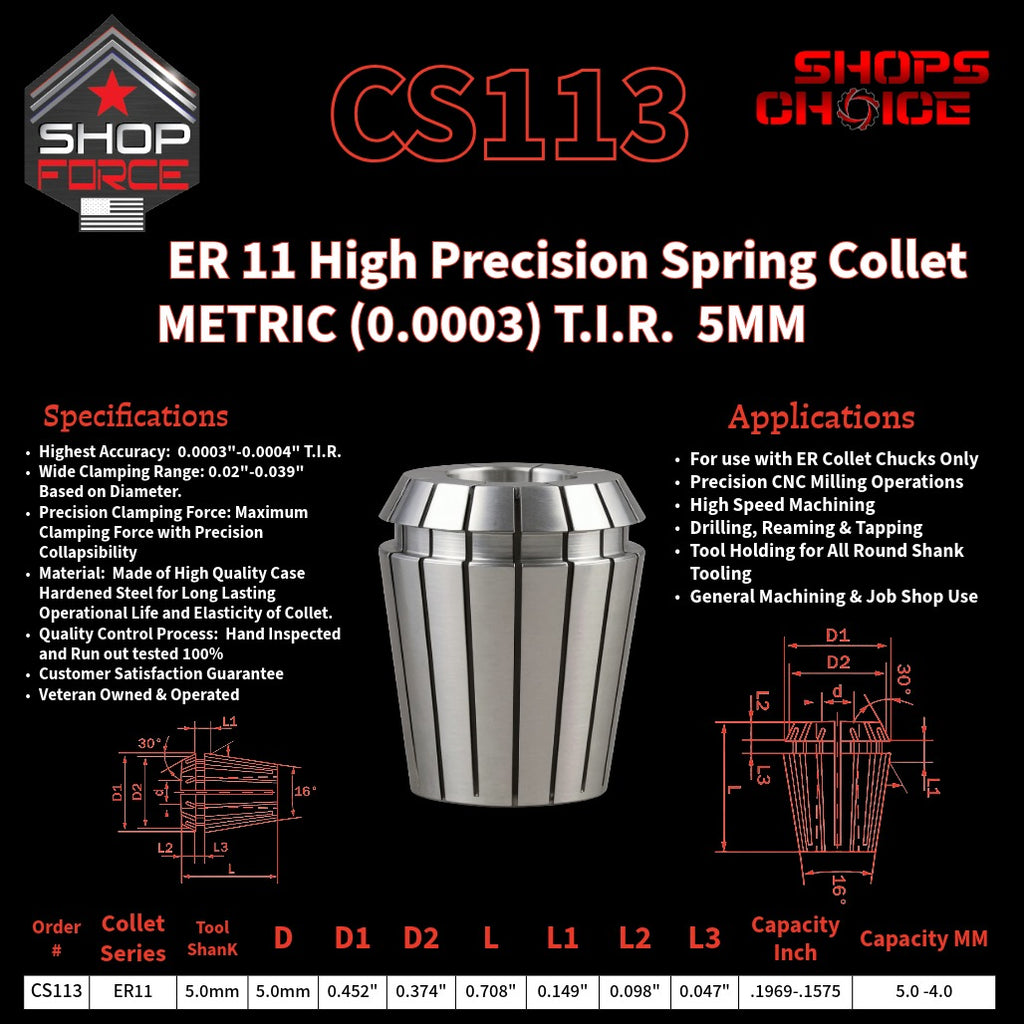

Shop-Force ER 11 High Precision Spring Collet Metric Shop'sChoice™ 5mm. Designed for accurate, repeatable tool holding in ER collet chuck systems for precision machining applications.
Specifications & Tolerances
- HIGHEST ACCURACY: Collet Accuracy: 0.0003"-0.0004" T.I.R
- WIDE CLAMPING RANGE: Clamping Range 0.02"-0.039" Depending on Diameter
- PRECISION CLAMPING FORCE: Provides Maximum Clamping force with Precision Collapsability
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications

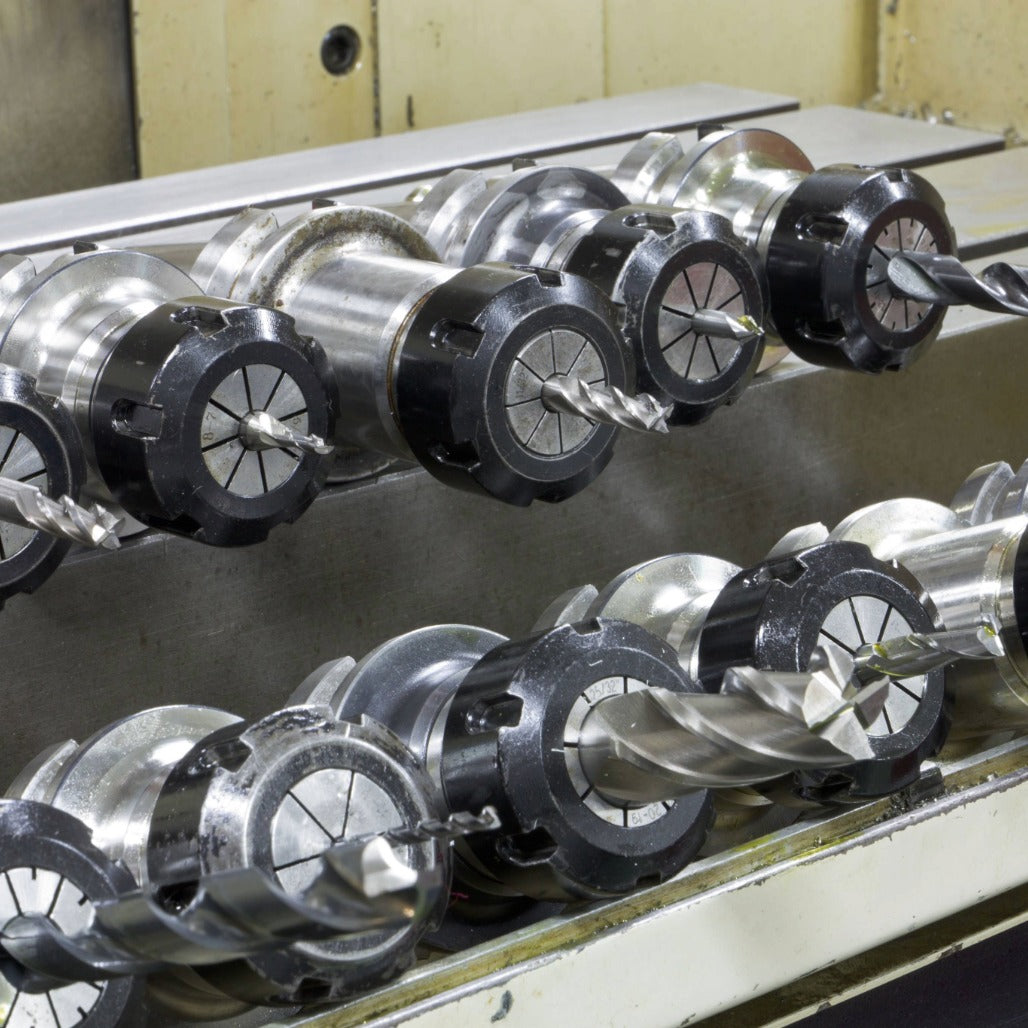

- For Use with ER Collet Chucks

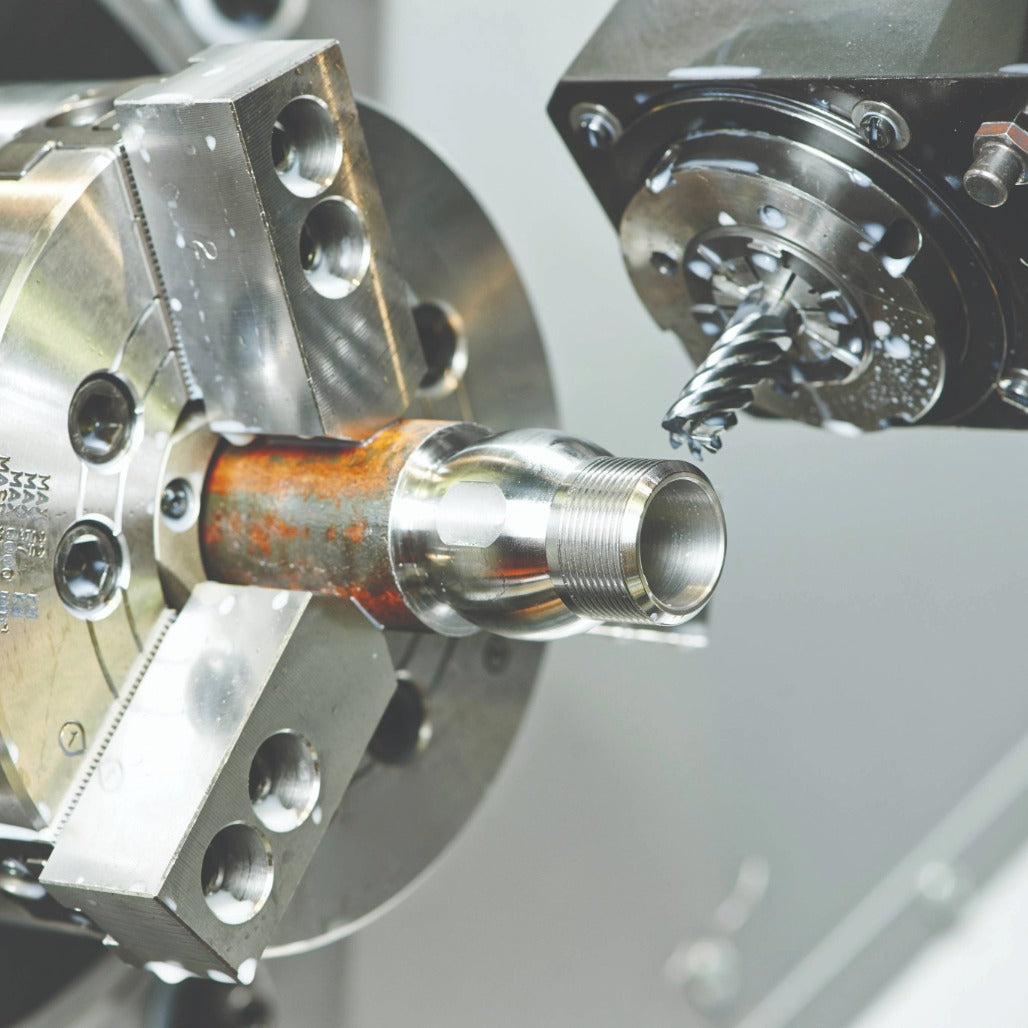

- Precision CNc Milling Operations
- High-Speed Machining (HSM)

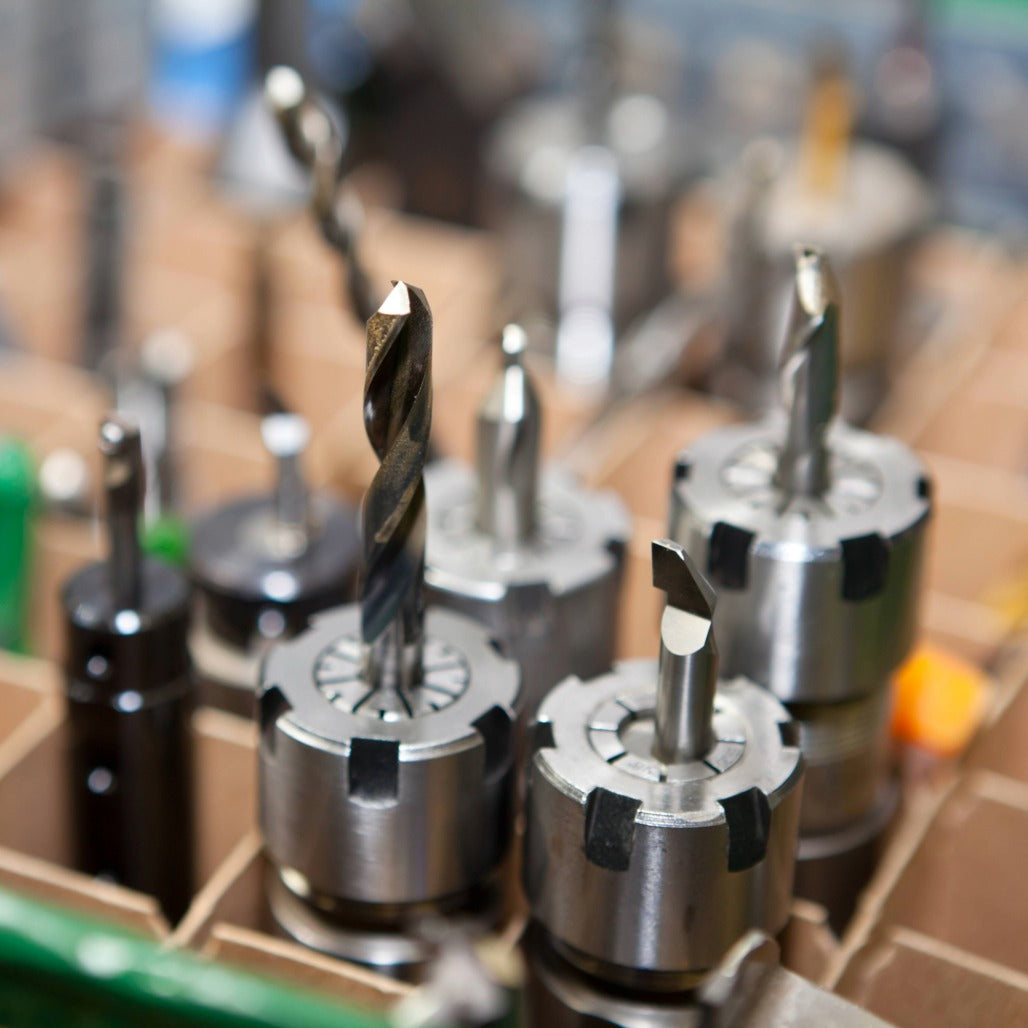

- Drilling, Reaming & Tapping
- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

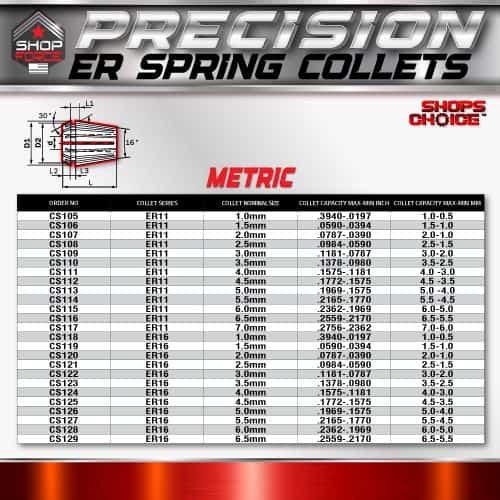

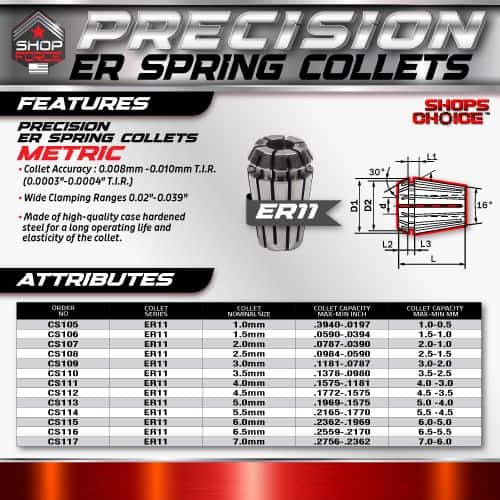

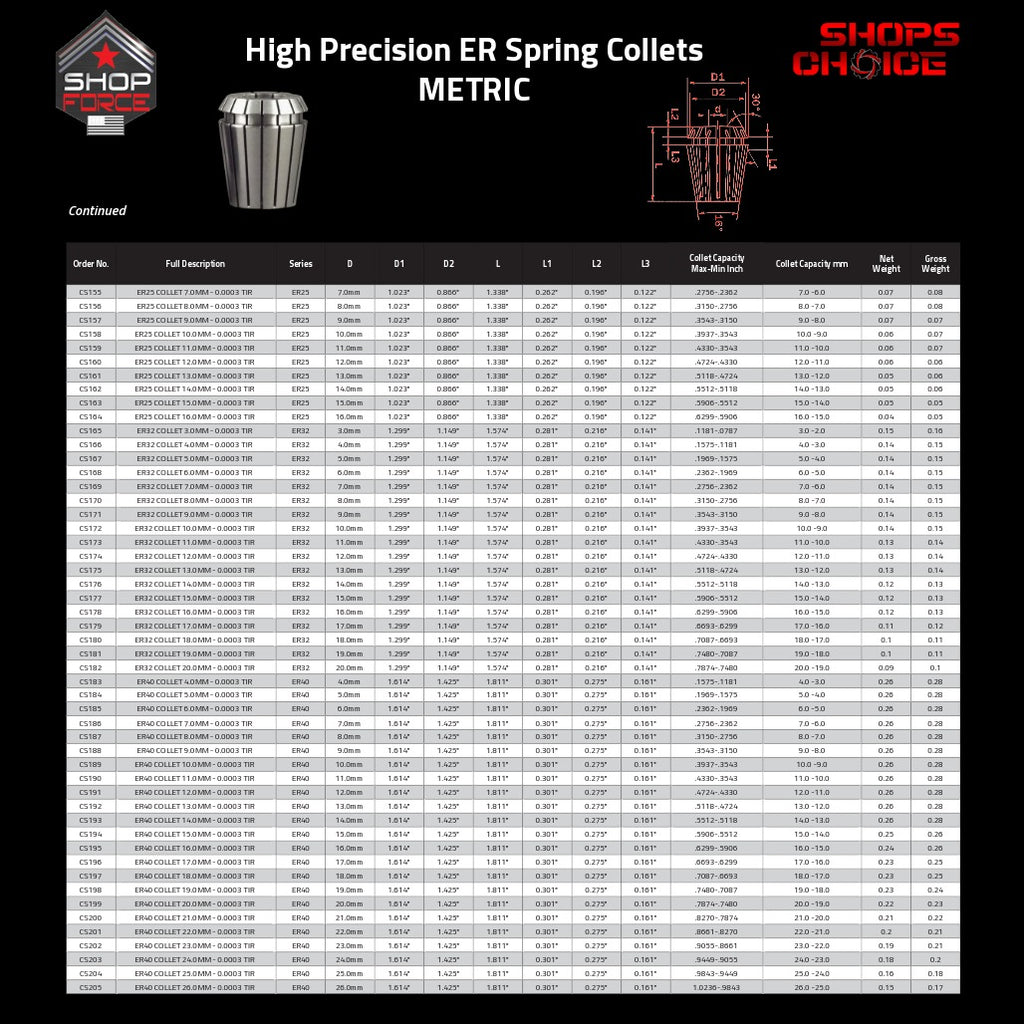

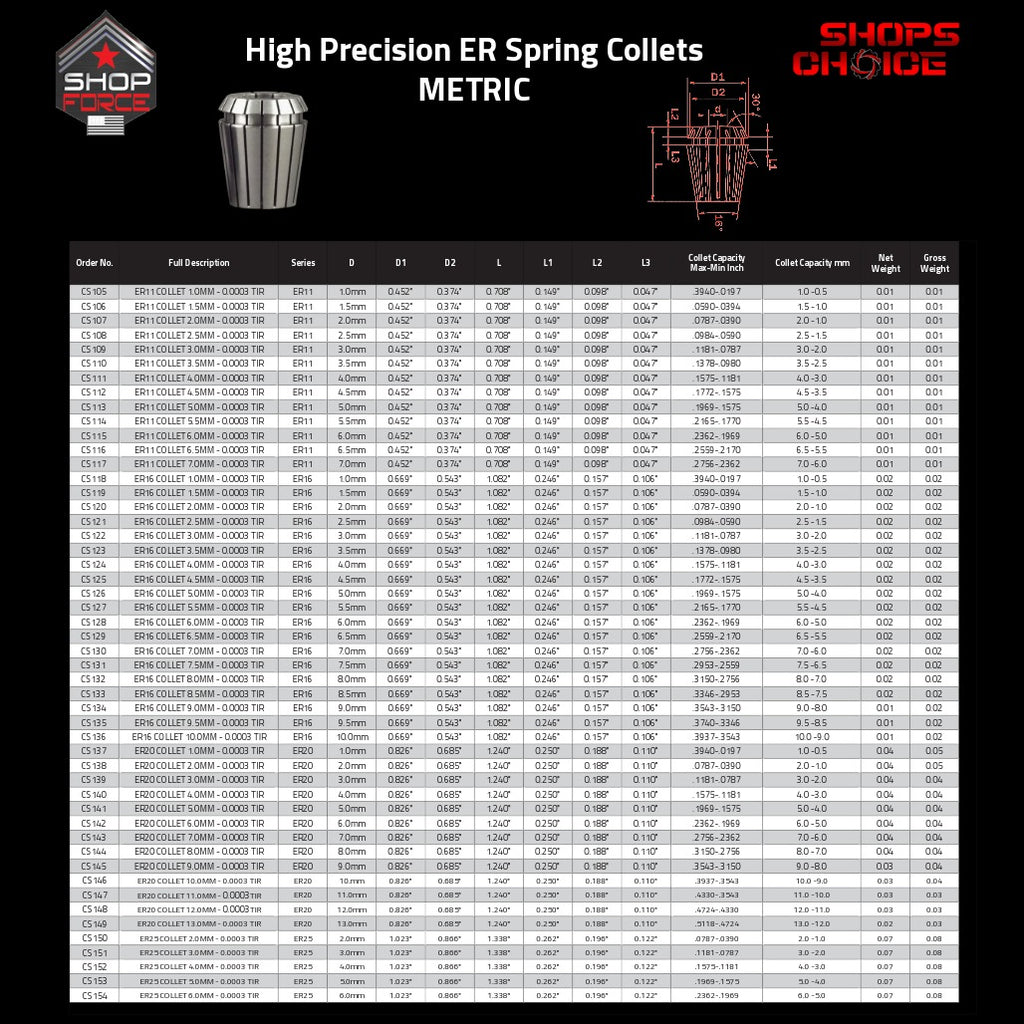

High Precision Metric ER11 ER Collets — Complete Size Chart
| Order# | Collet Series | Tool Shank | D | D1 | D2 | L | L1 | L2 | L3 | Collet Capacity Max-Min inch | Collet Capacity Max-Min MM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CS105 | ER11 | 1.0mm | 1.0mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .3940-.0197 | 1.0 -0.5 |
| CS106 | ER11 | 1.5mm | 1.5mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .0590-.0394 | 1.5 -1.0 |
| CS107 | ER11 | 2.0mm | 2.0mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .0787-.0390 | 2.0 -1.0 |
| CS108 | ER11 | 2.5mm | 2.5mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .0984-.0590 | 2.5 -1.5 |
| CS109 | ER11 | 3.0mm | 3.0mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1181-.0787 | 3.0 -2.0 |
| CS110 | ER11 | 3.5mm | 3.5mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1378-.0980 | 3.5 -2.5 |
| CS111 | ER11 | 4.0mm | 4.0mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1575-.1181 | 4.0 -3.0 |
| CS112 | ER11 | 4.5mm | 4.5mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1772-.1575 | 4.5 -3.5 |
| CS113 | ER11 | 5.0mm | 5.0mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1969-.1575 | 5.0 -4.0 |
| CS114 | ER11 | 5.5mm | 5.5mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .2165-.1770 | 5.5 -4.5 |
| CS115 | ER11 | 6.0mm | 6.0mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .2362-.1969 | 6.0 -5.0 |
| CS116 | ER11 | 6.5mm | 6.5mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .2559-.2170 | 6.5 -5.5 |
| CS117 | ER11 | 7.0mm | 7.0mm | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .2756-.2362 | 7.0 -6.0 |
