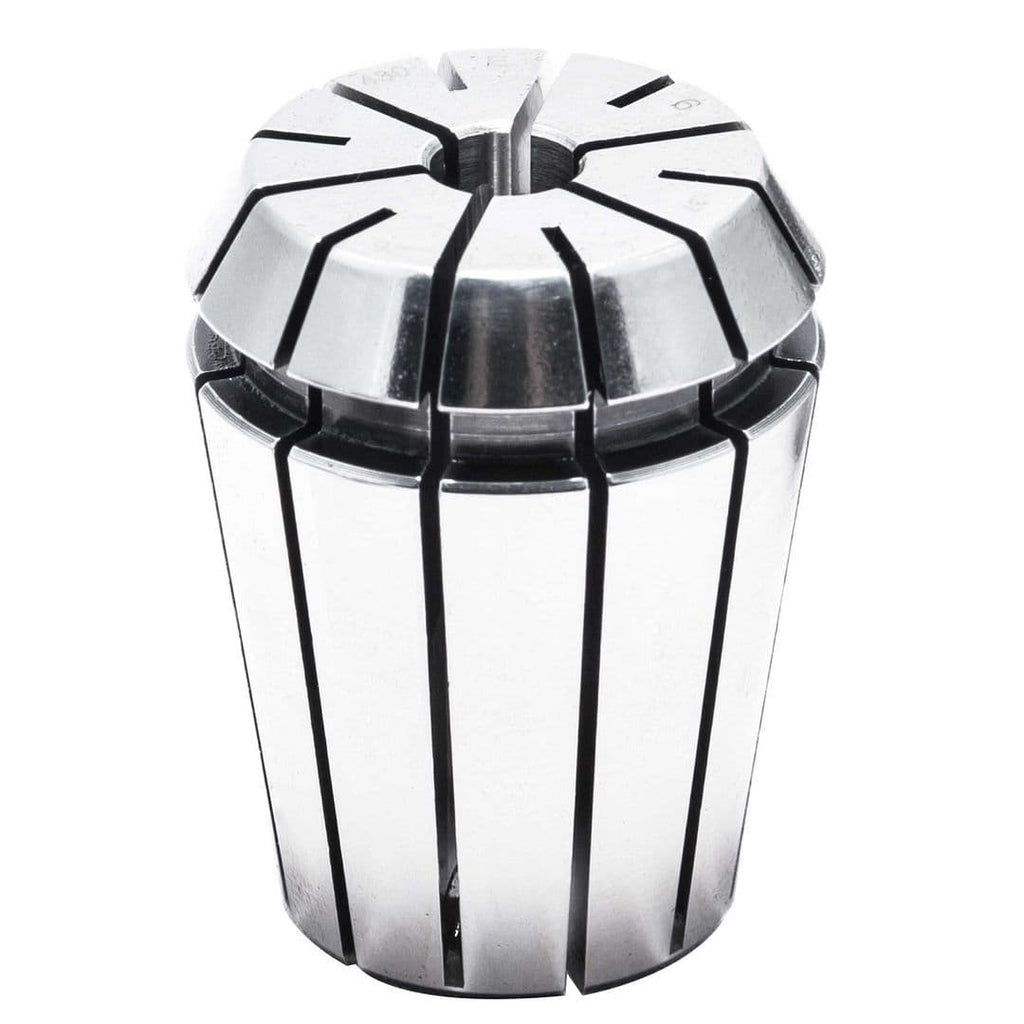

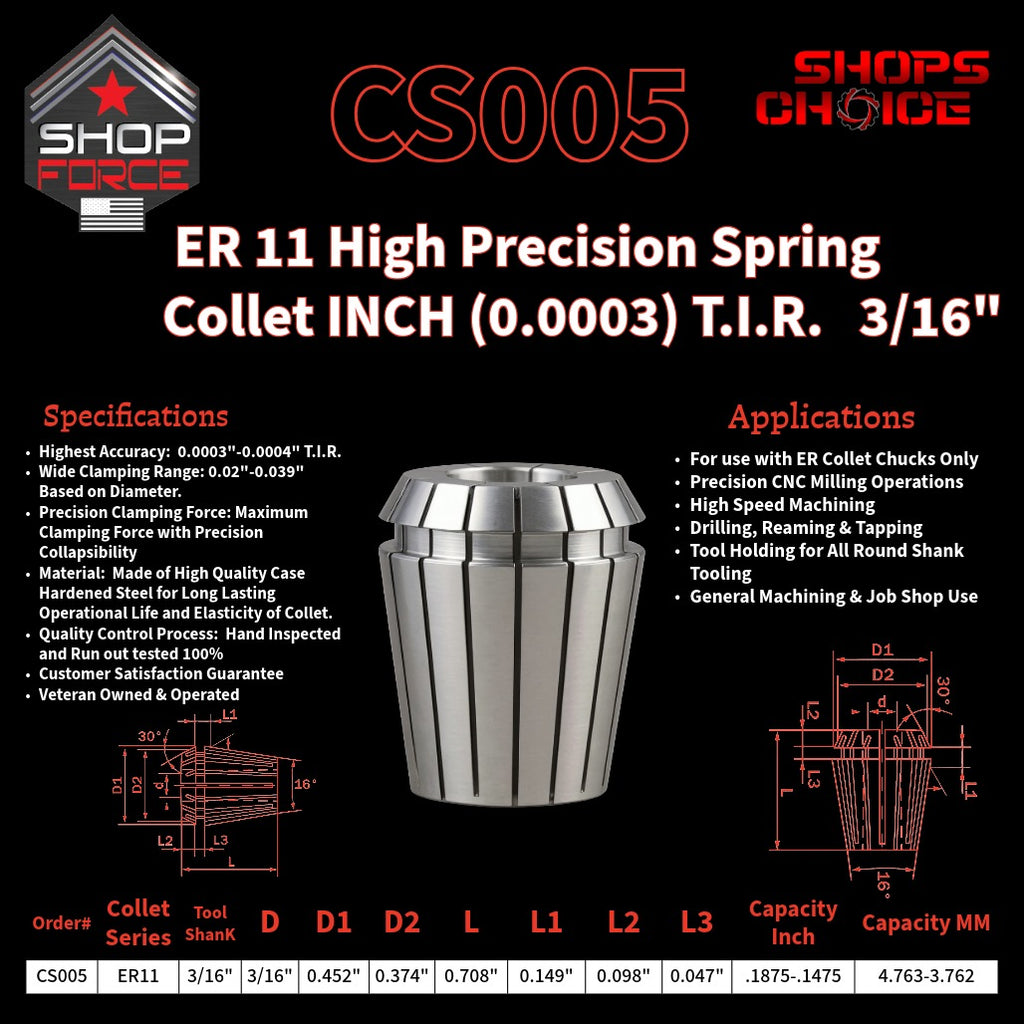

ER11 HIGH PRECISION SPRING COLLET INCH 3/16" - CS005 - CS005
$13.93

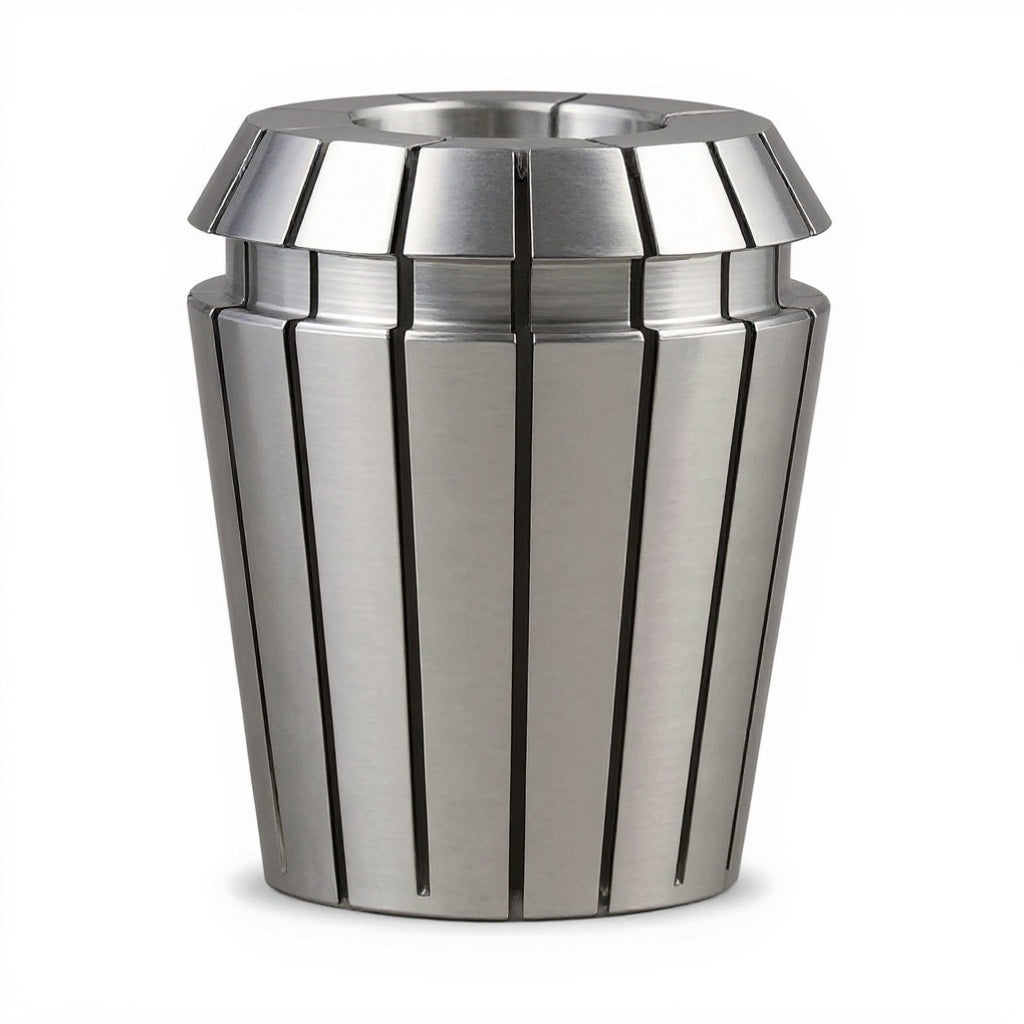

Shop-Force ER 11 High Precision Spring Collet INCH Shop'sChoice™ 3/16". Precision-machined for use with compatible ER11 collet chuck systems.
Specifications & Tolerances
- Use of Tool: To be used with ER Collet Chuck System in a Mill or Lathe
- HIGHEST ACCURACY: Collet Accuracy: 0.0003"-0.0004" T.I.R.
- WIDE CLAMPING RANGE: Clamping Range 0.02"-0.039" Depending on Diameter.
- PRECISION CLAMPING FORCE: Provides Maximum Clamping force with Precision Collapsability.
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet.
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications
- For Use with ER Collet Chucks ONLY

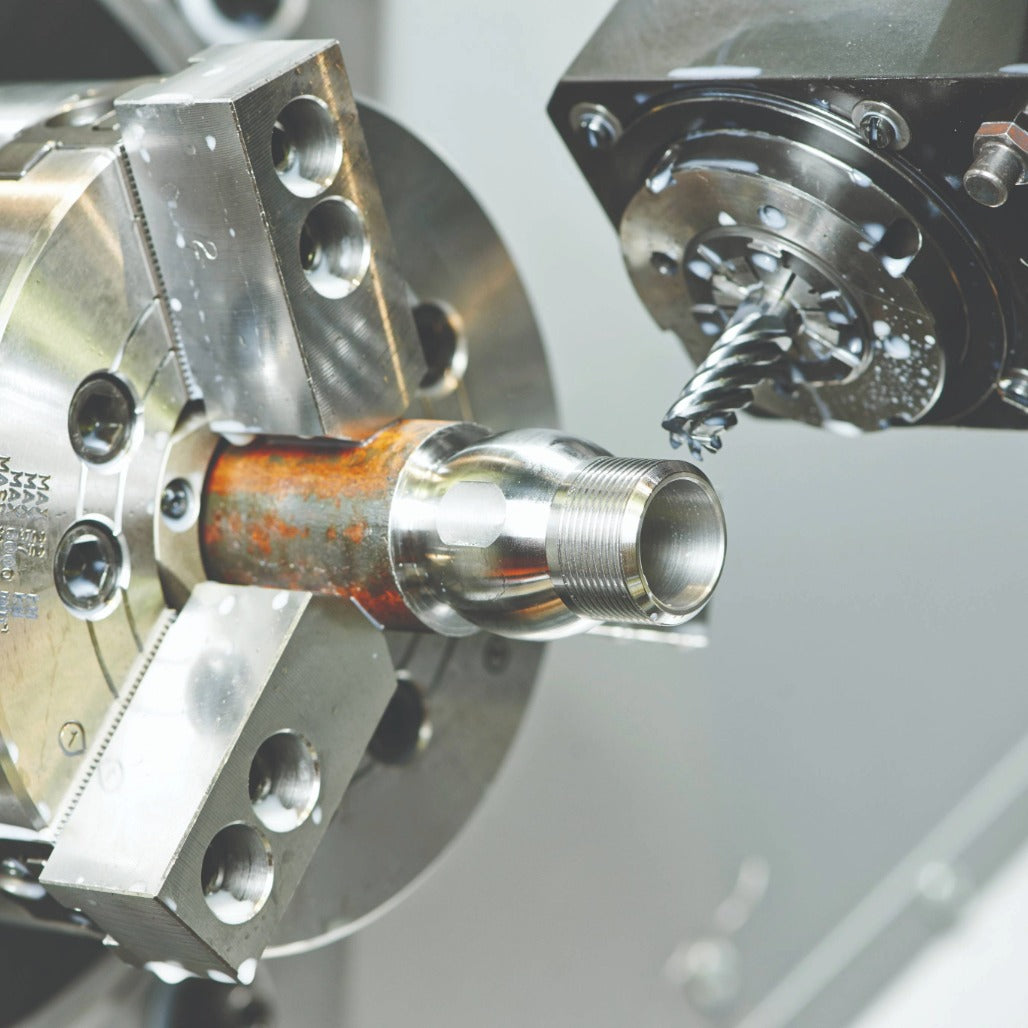

- Precision CNc Milling Operations
- High-Speed Machining (HSM)
- Drilling, Reaming & Tapping

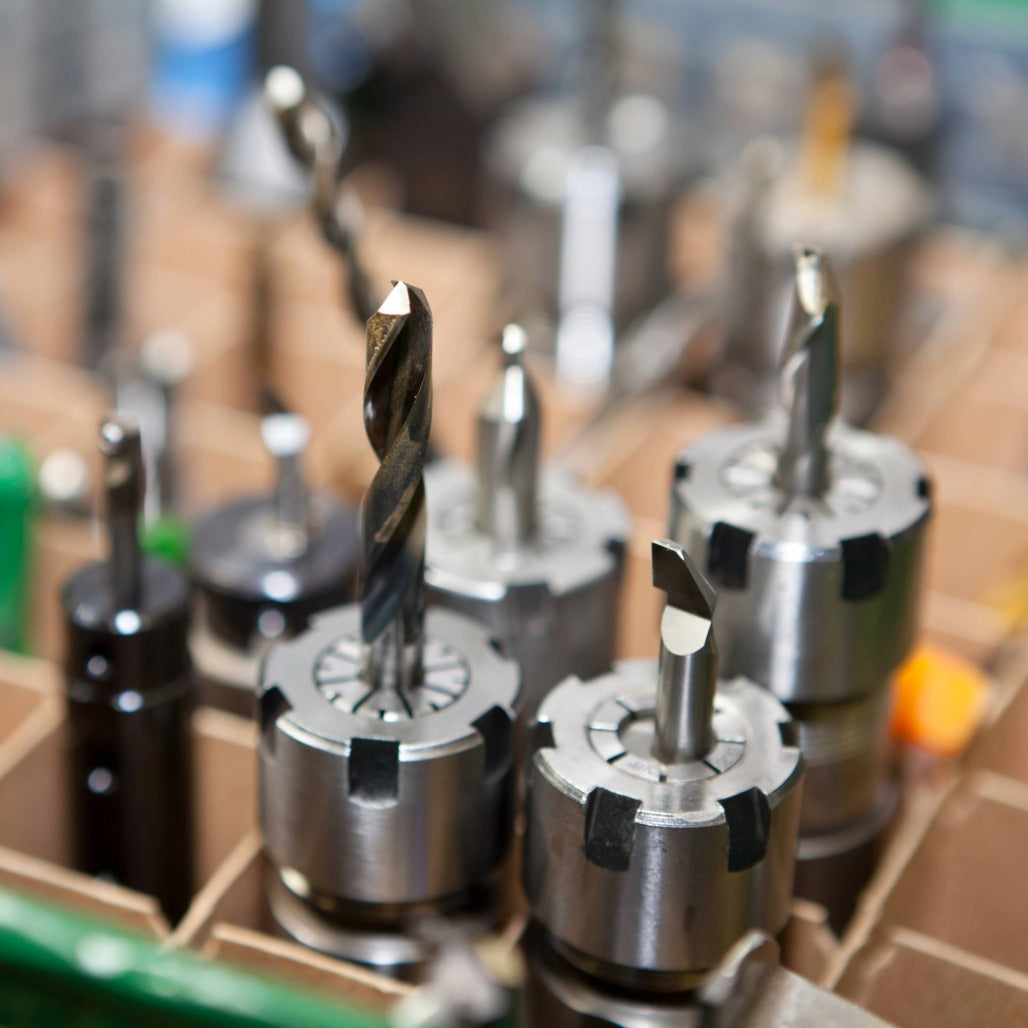

- Tool Holding for all Round Shank Tooling
- General Machining & Job Shop Use.

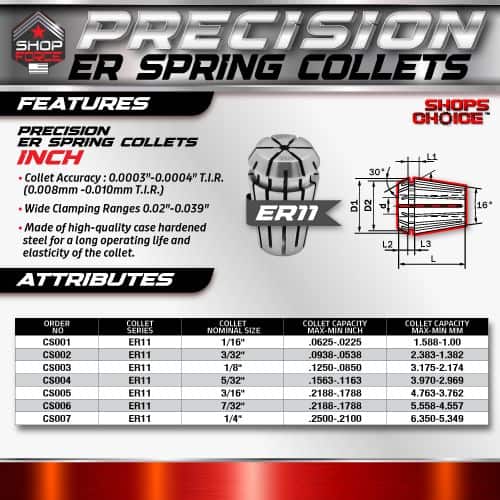

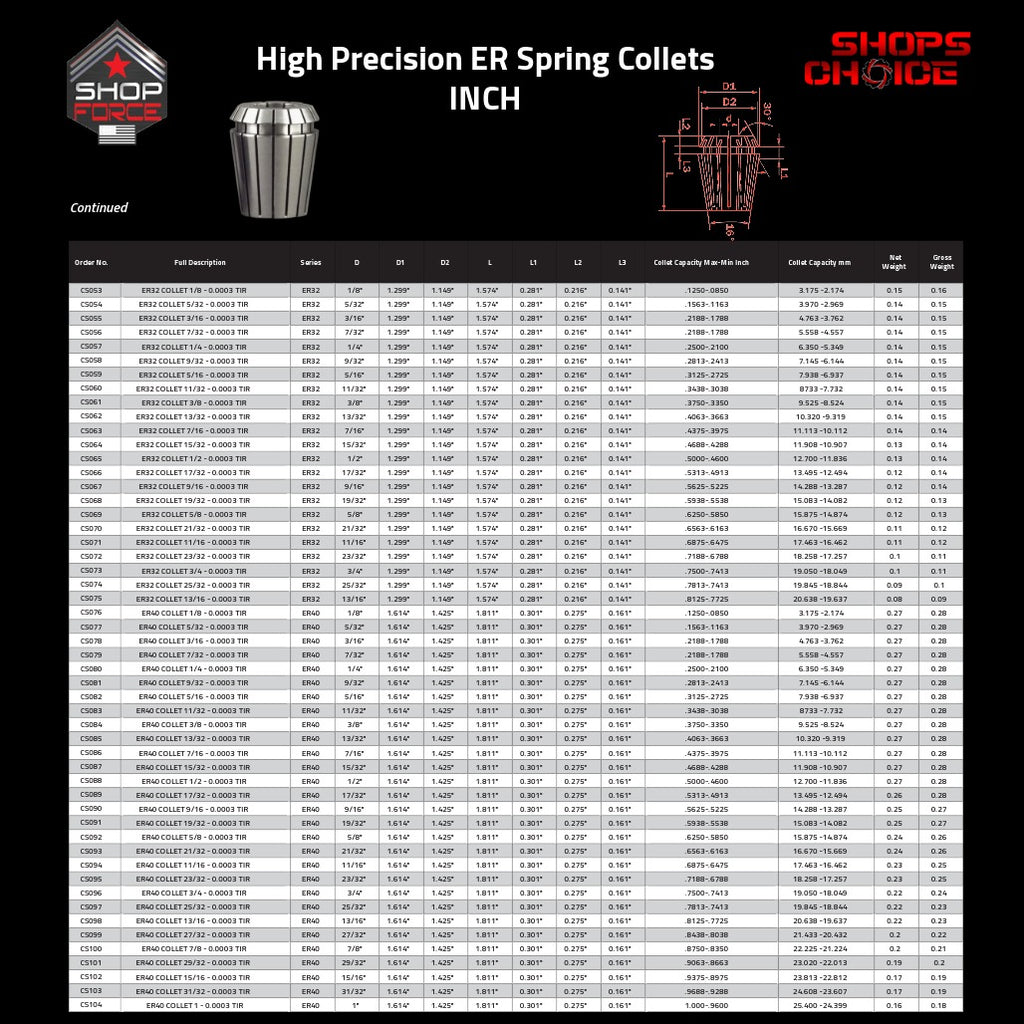

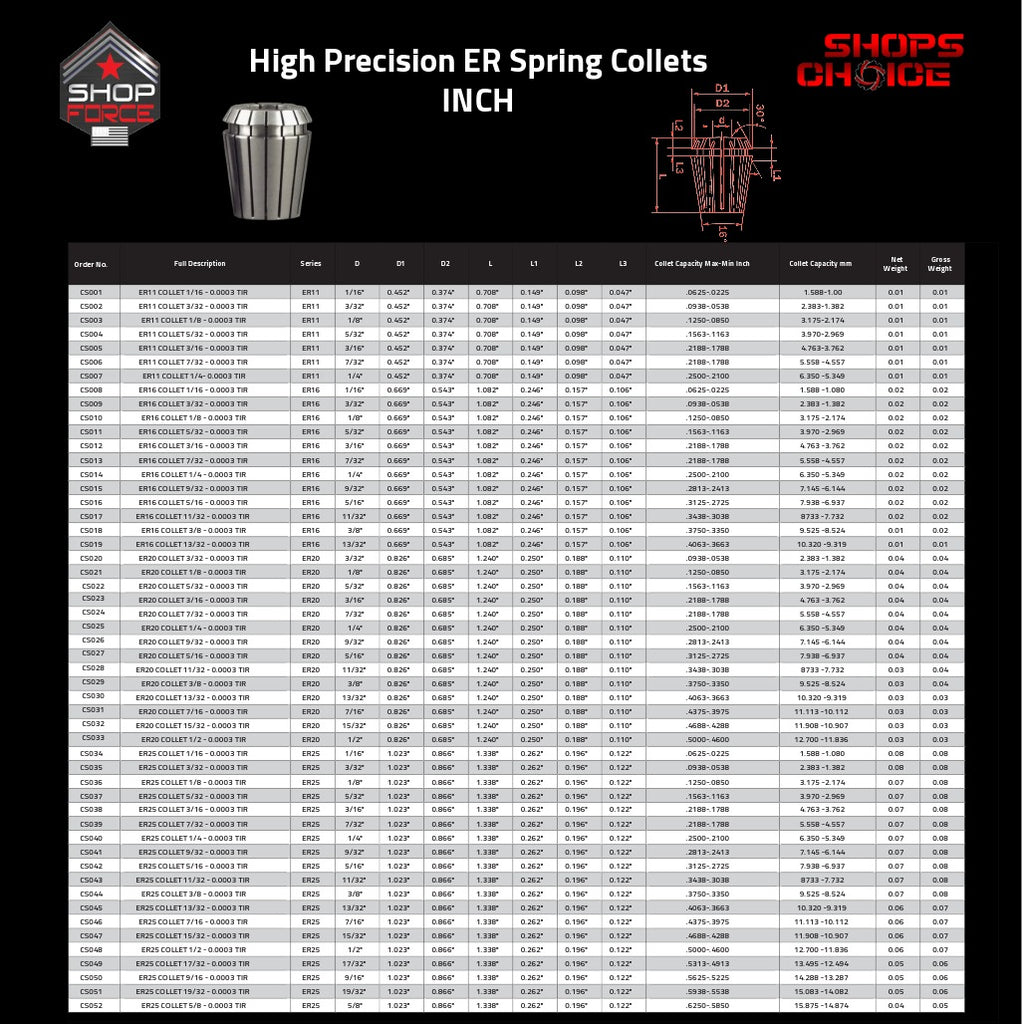

ER11 High Precision ER Inch Collets - Size and Dimensions
| Order# | Collet Series | Tool Shank | D | D1 | D2 | L | L1 | L2 | L3 | Collet Capacity Max-Min inch | Collet Capacity Max-Min MM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CS001 | ER11 | 1/16” | 1/16” | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .0625-.0225” | 1.588-1.00mm |
| CS002 | ER11 | 3/32” | 3/32” | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .0938-.0538 | 2.383-1.382 |
| CS003 | ER11 | 1/8” | 1/8” | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1250-.0850 | 3.175-2.174 |
| CS004 | ER11 | 5/32” | 5/32” | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1563-.1163 | 3.970-2.969 |
| CS005 | ER11 | 3/16" | 3/16" | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .1875-.1475 | 4.763-3.762 |
| CS006 | ER11 | 7/32" | 7/32" | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .2188-.1788 | 5.558 -4.557 |
| CS007 | ER11 | 1/4" | 1/4" | 0.452" | 0.374" | 0.708" | 0.149" | 0.098" | 0.047" | .2500-.2100 | 6.350 -5.349 |
