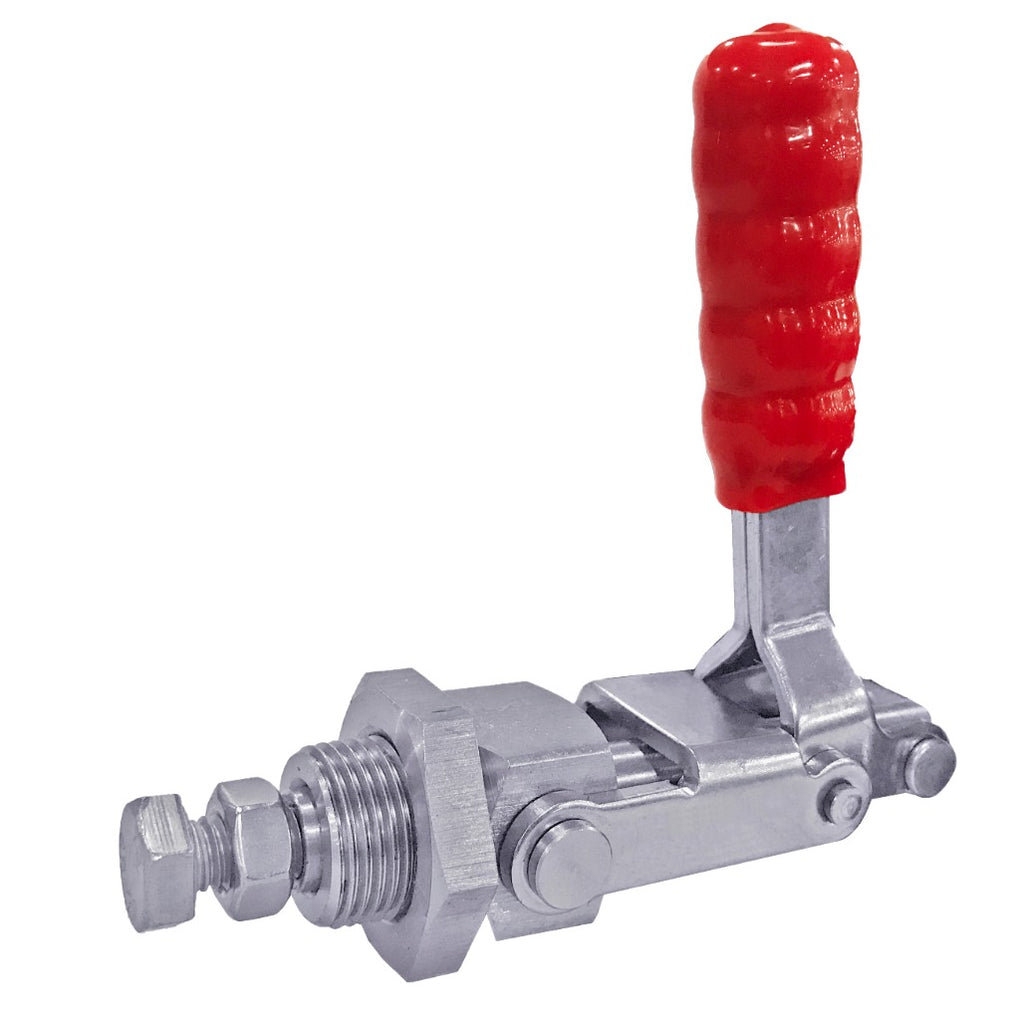

300LB PUSH/PULL (STRAIGHT LINE) CLAMP - 15000 - Shop-Force - 15000

300LB PUSH/PULL (STRAIGHT LINE) CLAMP - 15000 - Shop-Force - 15000

$53.24

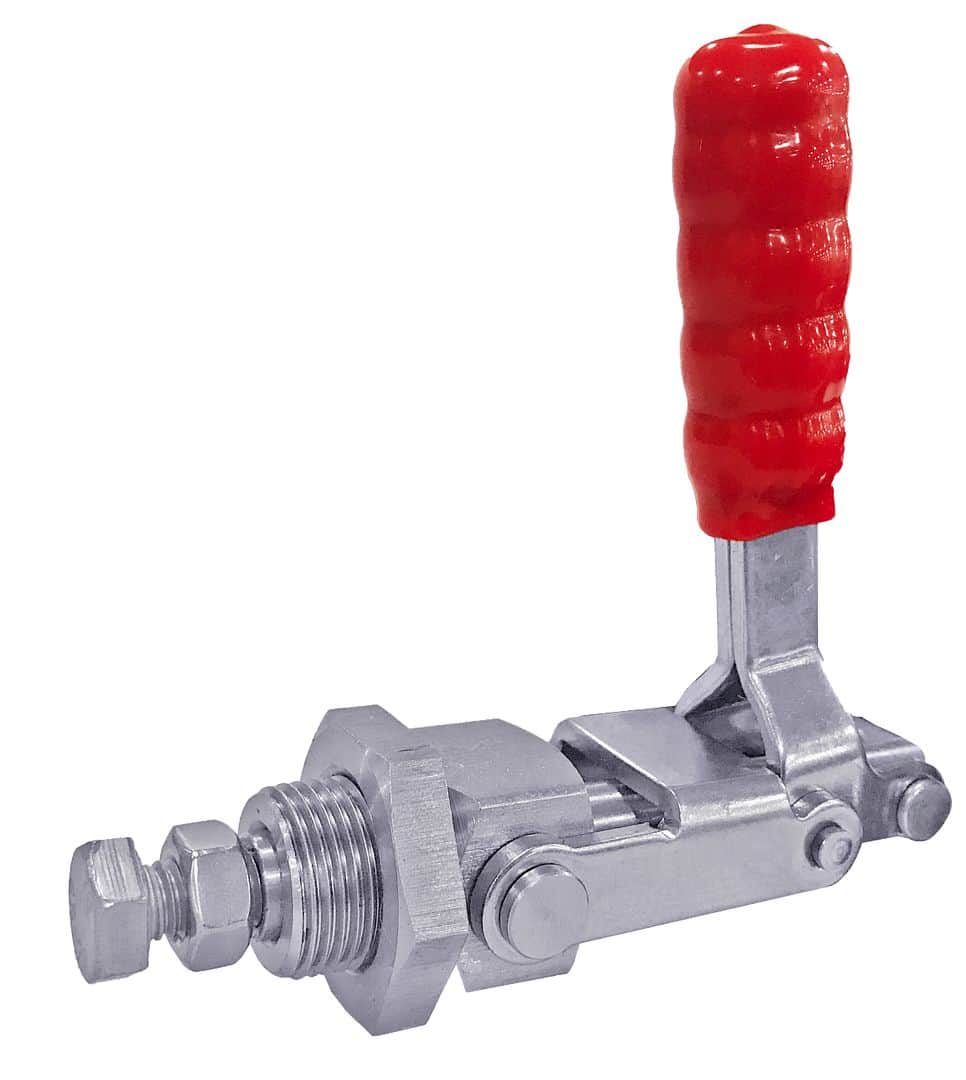

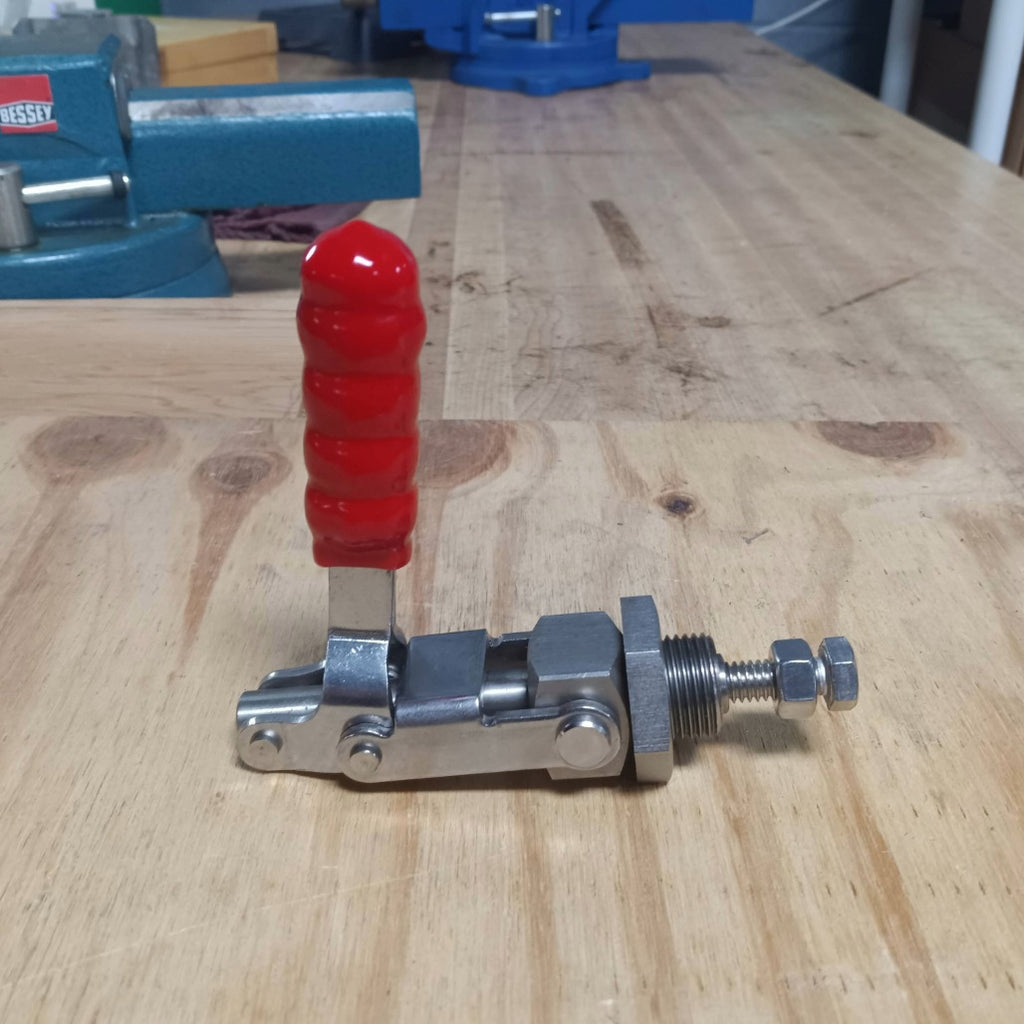

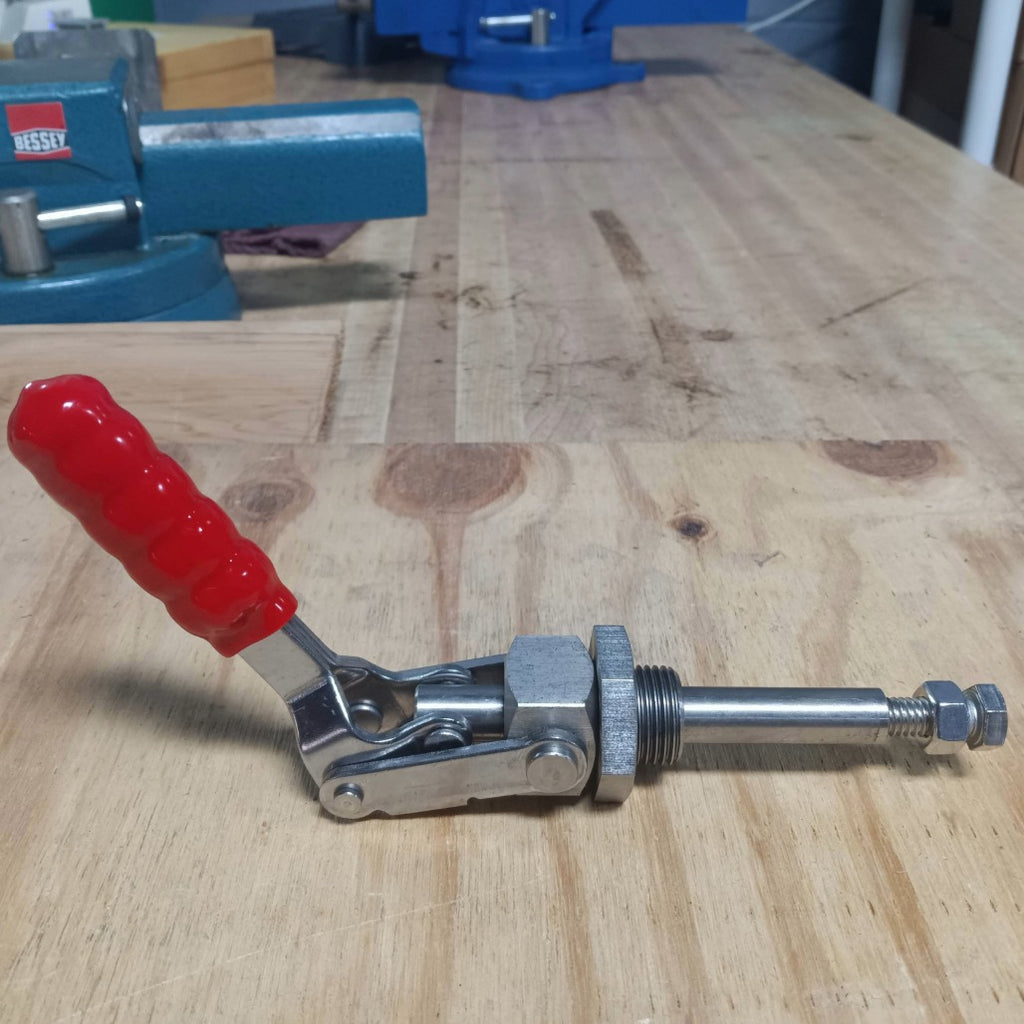

Shop-Force 300 lb stainless steel straight-line push/pull toggle clamp provides precise linear action for workholding, fixturing, positioning and testing. Its over-center locking mechanism holds the plunger in position for repeatable clamping. Constructed from 304 stainless steel, this through-hole-mount clamp includes a 5/16-18 threaded stainless steel spindle assembly with nut.

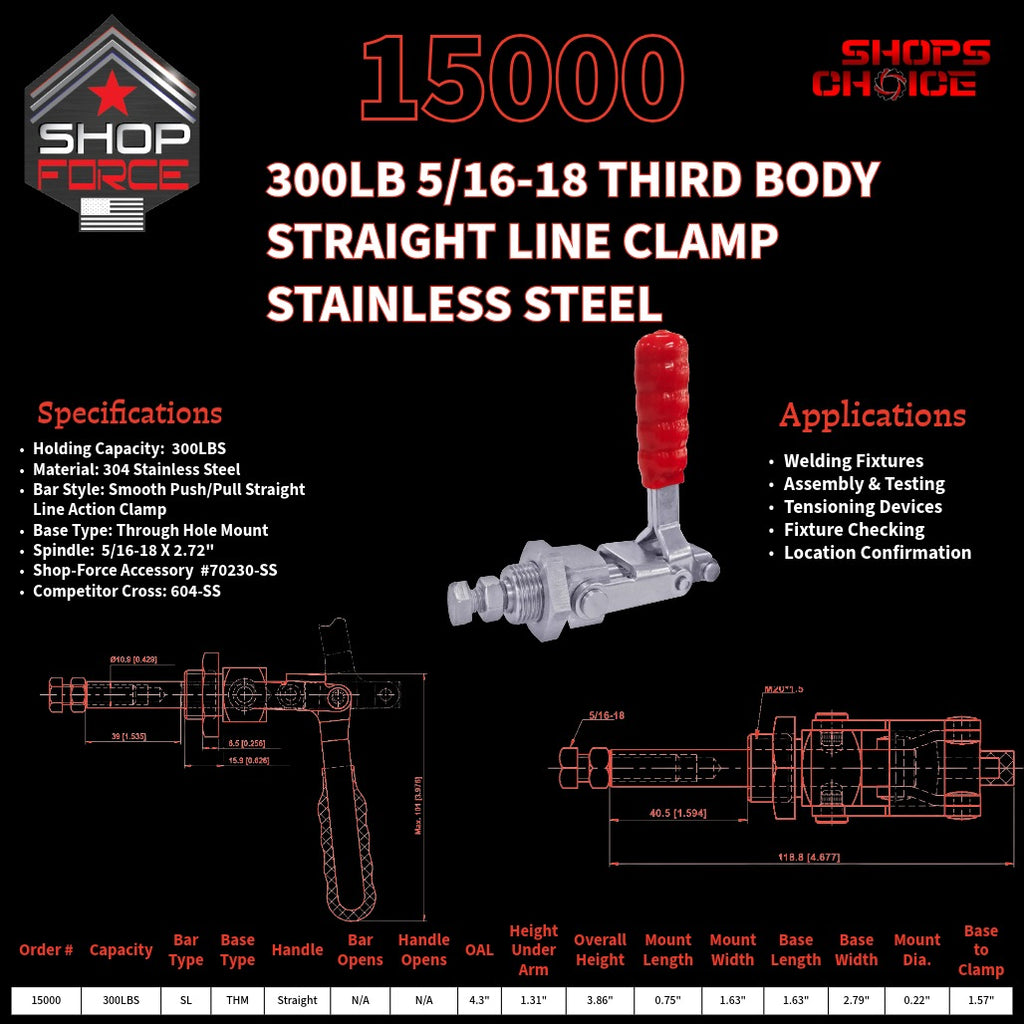

Specifications & Tolerances

  • Competitor: 604-SS
  • Holding Capacity: 300 LBS Clamping Pressure
  • Material: Made of 304 Stainless Steel
  • Bar Style: Smooth Push/Pull Straight Line Action Clamp
  • Base Type: Through Hole Mount
  • Spindle Size: 5/16-18 X 2.72" HEX FULL THREAD STAINLESS STEEL SPINDLE ASSEMBLY WITH NUT
  • Shop-Force Accessory # 70230-SS
  • Customer Satisfaction Guarantee
  • Veteran-Owned and Operated

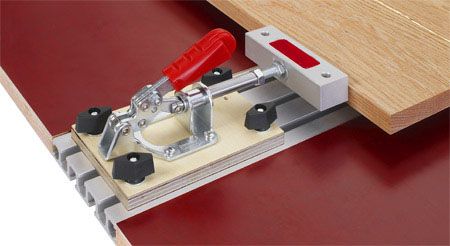

Applications

  • Assembly operations
  • Welding fixtures
  • Tensioning devices
  • Checking fixtures
  • Location confirmation

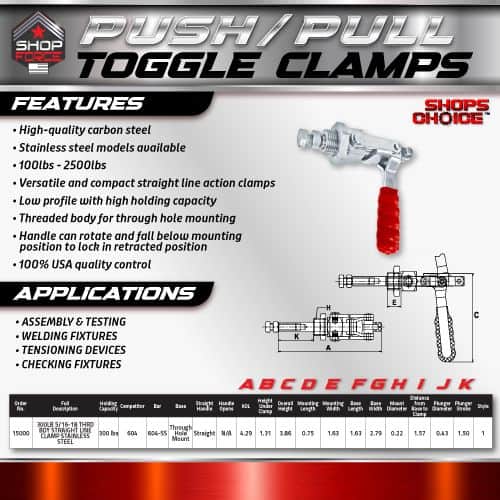

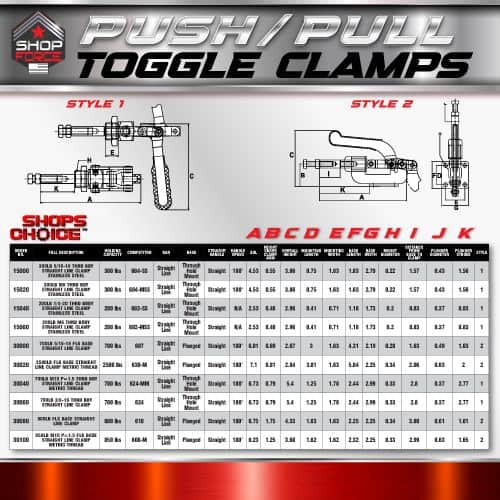

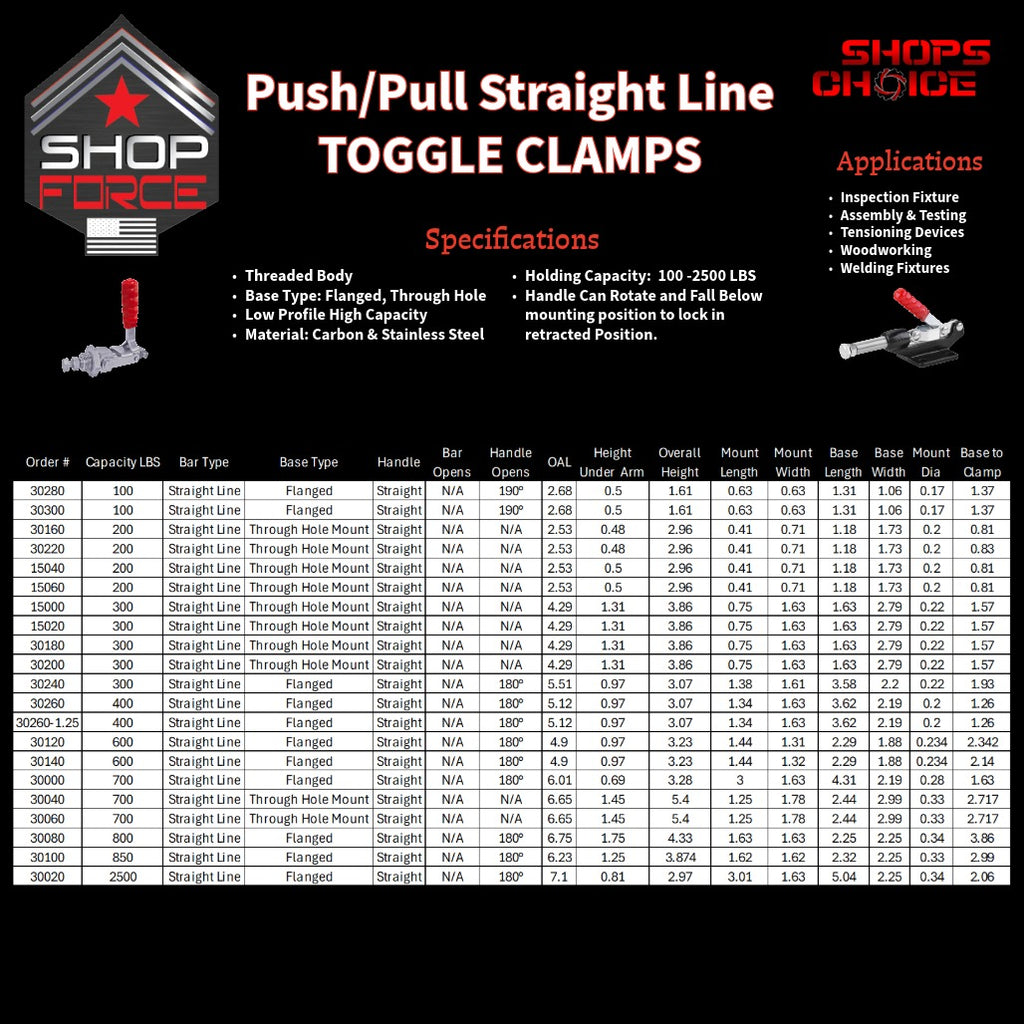

Push/Pull Straight Line Toggle Clamp Comparison Chart

Compare models, holding capacities, mounting configurations, and dimensions.

Order # Capacity LBS Bar Type Base Type Handle Bar Opens Handle Opens OAL Height Under Arm Overall Height Mount Length Mount Width Base Length Base Width Mount Dia Base to Clamp
30280 100 Straight Line Flanged Straight N/A 190° 2.68 0.5 1.61 0.63 0.63 1.31 1.06 0.17 1.37
30300 100 Straight Line Flanged Straight N/A 190° 2.68 0.5 1.61 0.63 0.63 1.31 1.06 0.17 1.37
30160 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.48 2.96 0.41 0.71 1.18 1.73 0.2 0.81
30220 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.48 2.96 0.41 0.71 1.18 1.73 0.2 0.83
15040 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.5 2.96 0.41 0.71 1.18 1.73 0.2 0.81
15060 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.5 2.96 0.41 0.71 1.18 1.73 0.2 0.81
15000 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
15020 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
30180 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
30200 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
30240 300 Straight Line Flanged Straight N/A 180° 5.51 0.97 3.07 1.38 1.61 3.58 2.2 0.22 1.93
30260 400 Straight Line Flanged Straight N/A 180° 5.12 0.97 3.07 1.34 1.63 3.62 2.19 0.2 1.26
30260-1.25 400 Straight Line Flanged Straight N/A 180° 5.12 0.97 3.07 1.34 1.63 3.62 2.19 0.2 1.26
30120 600 Straight Line Flanged Straight N/A 180° 4.9 0.97 3.23 1.44 1.31 2.29 1.88 0.234 2.342
30140 600 Straight Line Flanged Straight N/A 180° 4.9 0.97 3.23 1.44 1.32 2.29 1.88 0.234 2.14
30000 700 Straight Line Flanged Straight N/A 180° 6.01 0.69 3.28 3 1.63 4.31 2.19 0.28 1.63
30040 700 Straight Line Through Hole Mount Straight N/A N/A 6.65 1.45 5.4 1.25 1.78 2.44 2.99 0.33 2.717
30060 700 Straight Line Through Hole Mount Straight N/A N/A 6.65 1.45 5.4 1.25 1.78 2.44 2.99 0.33 2.717
30080 800 Straight Line Flanged Straight N/A 180° 6.75 1.75 4.33 1.63 1.63 2.25 2.25 0.34 3.86
30100 850 Straight Line Flanged Straight N/A 180° 6.23 1.25 3.874 1.62 1.62 2.32 2.25 0.33 2.99
30020 2500 Straight Line Flanged Straight N/A 180° 7.1 0.81 2.97 3.01 1.63 5.04 2.25 0.34 2.06

Shop-Force Quality

Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
