100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
  • 100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300
100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300

100LB PUSH/PULL (STRAIGHT LINE) CLAMP - 30300 - Shop-Force - 30300

$11.37

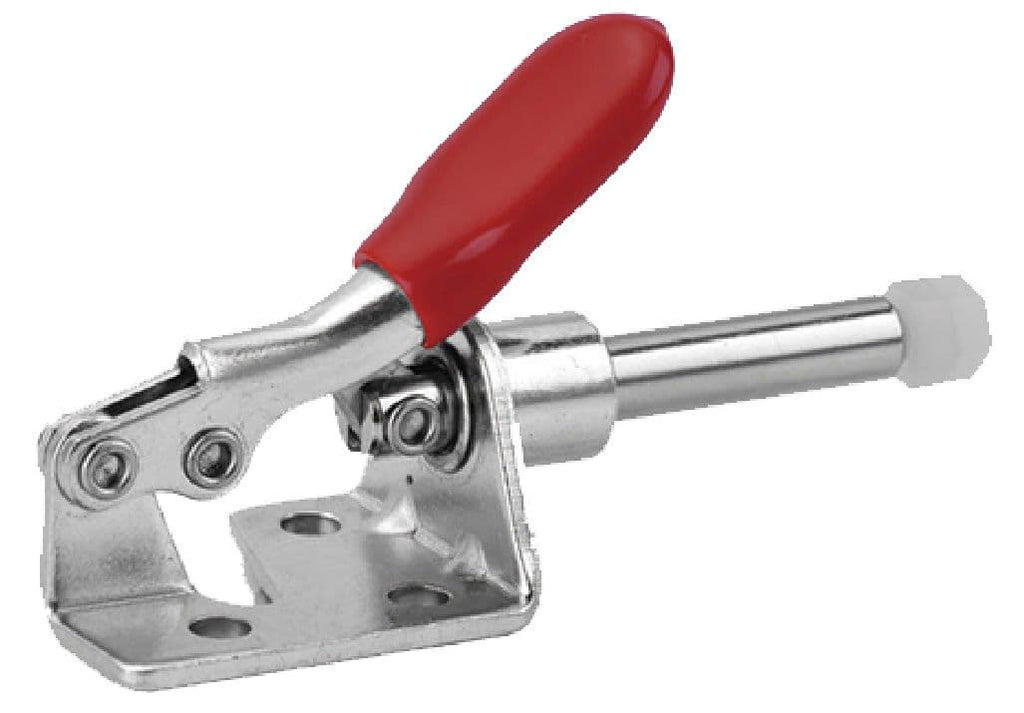

Shop-Force 100 lb straight-line push/pull toggle clamp provides linear clamping action for workholding, fixtures, positioning, and inspection applications. This steel clamp features a flanged base configuration and an over-center locking mechanism for repeatable plunger positioning. Spindle specification: #8-32 X .625" HEX FULL THREAD SPINDLE ASSEMBLY.

Specifications & Tolerances

  • Competitor:601
  • Holding Capacity: 100 LBS Clamping Pressure
  • Material: Made of High Quality Steel
  • Bar Style: Smooth Push/Pull Straight line Action Clamp
  • Base Type: Flanged
  • Spindle Size: #8-32 X .625" HEX FULL THREAD SPINDLE ASSEMBLY
  • Shop-Force Accessory # 70180
  • Customer Satisfaction Guarantee
  • Veteran-Owned and Operated

Applications

  • Assembly
  • Welding Fixtures
  • Tensioning devices
  • Checking Fixtures
  • Location Confirmation

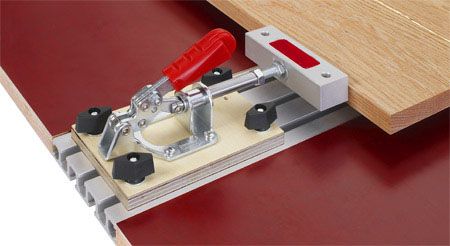

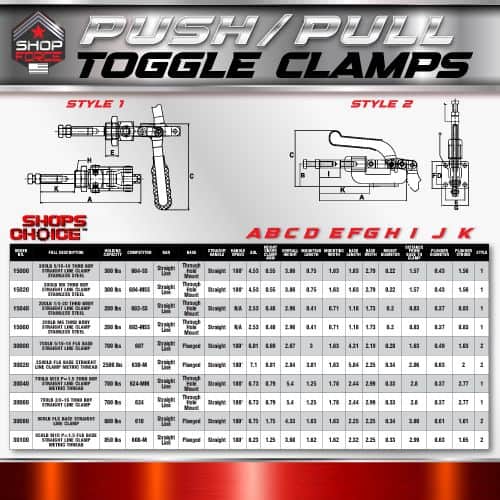

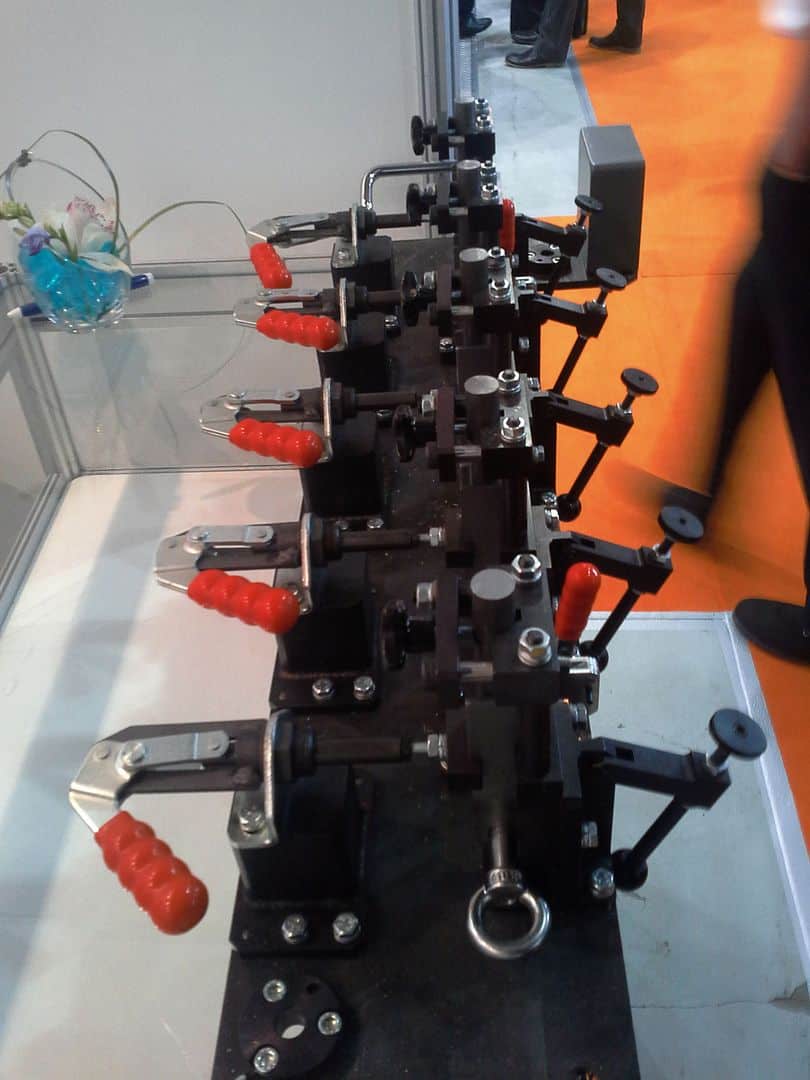

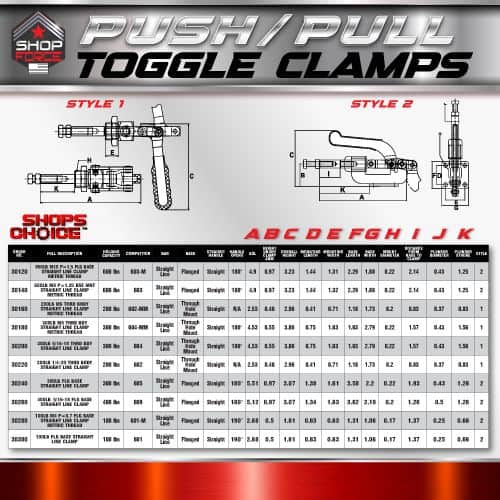

Push/Pull Straight Line Toggle Clamp Comparison Chart

Compare models, holding capacities, mounting configurations, and dimensions.

Order # Capacity LBS Bar Type Base Type Handle Bar Opens Handle Opens OAL Height Under Arm Overall Height Mount Length Mount Width Base Length Base Width Mount Dia Base to Clamp
30280 100 Straight Line Flanged Straight N/A 190° 2.68 0.5 1.61 0.63 0.63 1.31 1.06 0.17 1.37
30300 100 Straight Line Flanged Straight N/A 190° 2.68 0.5 1.61 0.63 0.63 1.31 1.06 0.17 1.37
30160 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.48 2.96 0.41 0.71 1.18 1.73 0.2 0.81
30220 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.48 2.96 0.41 0.71 1.18 1.73 0.2 0.83
15040 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.5 2.96 0.41 0.71 1.18 1.73 0.2 0.81
15060 200 Straight Line Through Hole Mount Straight N/A N/A 2.53 0.5 2.96 0.41 0.71 1.18 1.73 0.2 0.81
15000 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
15020 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
30180 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
30200 300 Straight Line Through Hole Mount Straight N/A N/A 4.29 1.31 3.86 0.75 1.63 1.63 2.79 0.22 1.57
30240 300 Straight Line Flanged Straight N/A 180° 5.51 0.97 3.07 1.38 1.61 3.58 2.2 0.22 1.93
30260 400 Straight Line Flanged Straight N/A 180° 5.12 0.97 3.07 1.34 1.63 3.62 2.19 0.2 1.26
30260-1.25 400 Straight Line Flanged Straight N/A 180° 5.12 0.97 3.07 1.34 1.63 3.62 2.19 0.2 1.26
30120 600 Straight Line Flanged Straight N/A 180° 4.9 0.97 3.23 1.44 1.31 2.29 1.88 0.234 2.342
30140 600 Straight Line Flanged Straight N/A 180° 4.9 0.97 3.23 1.44 1.32 2.29 1.88 0.234 2.14
30000 700 Straight Line Flanged Straight N/A 180° 6.01 0.69 3.28 3 1.63 4.31 2.19 0.28 1.63
30040 700 Straight Line Through Hole Mount Straight N/A N/A 6.65 1.45 5.4 1.25 1.78 2.44 2.99 0.33 2.717
30060 700 Straight Line Through Hole Mount Straight N/A N/A 6.65 1.45 5.4 1.25 1.78 2.44 2.99 0.33 2.717
30080 800 Straight Line Flanged Straight N/A 180° 6.75 1.75 4.33 1.63 1.63 2.25 2.25 0.34 3.86
30100 850 Straight Line Flanged Straight N/A 180° 6.23 1.25 3.874 1.62 1.62 2.32 2.25 0.33 2.99
30020 2500 Straight Line Flanged Straight N/A 180° 7.1 0.81 2.97 3.01 1.63 5.04 2.25 0.34 2.06
