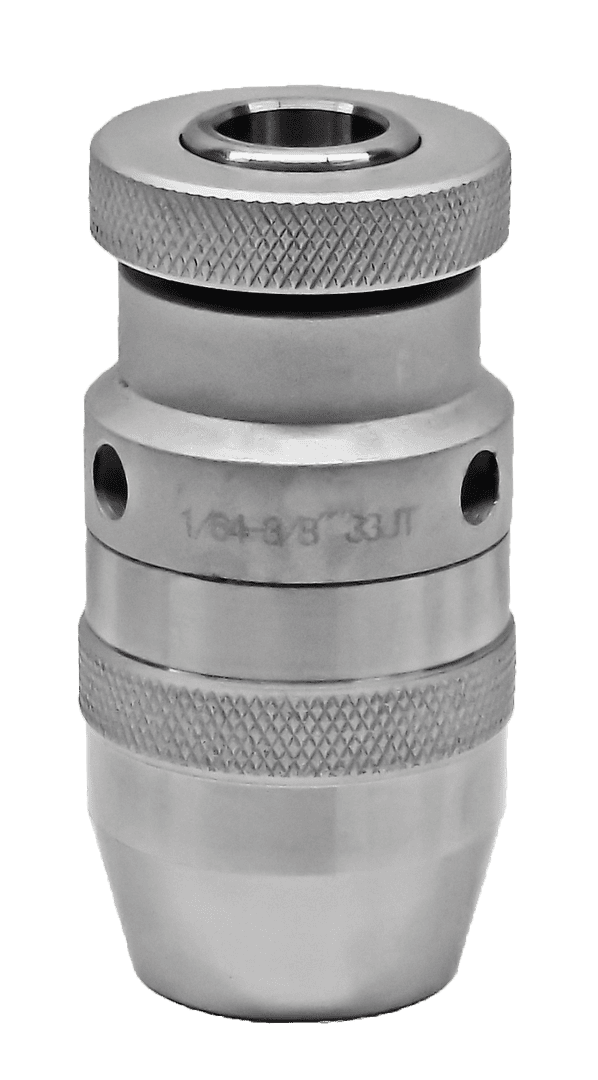

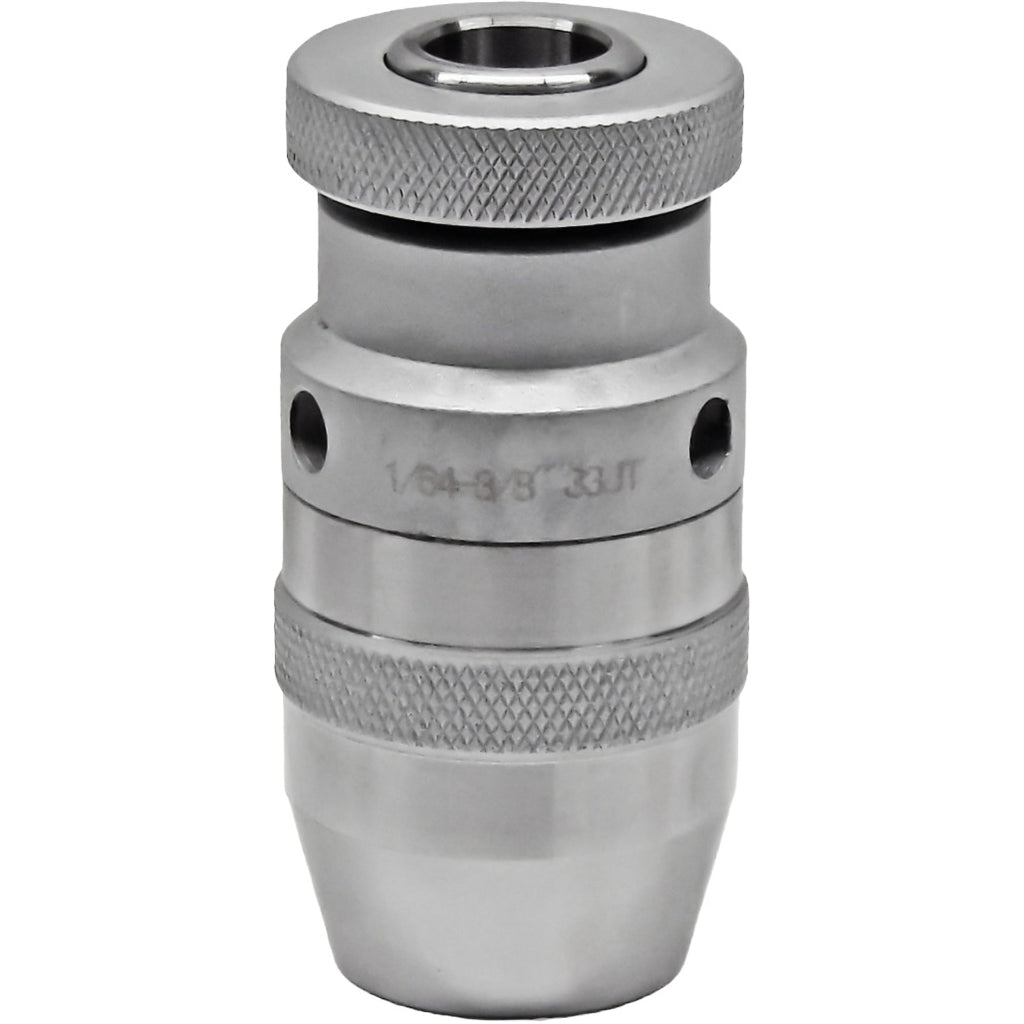

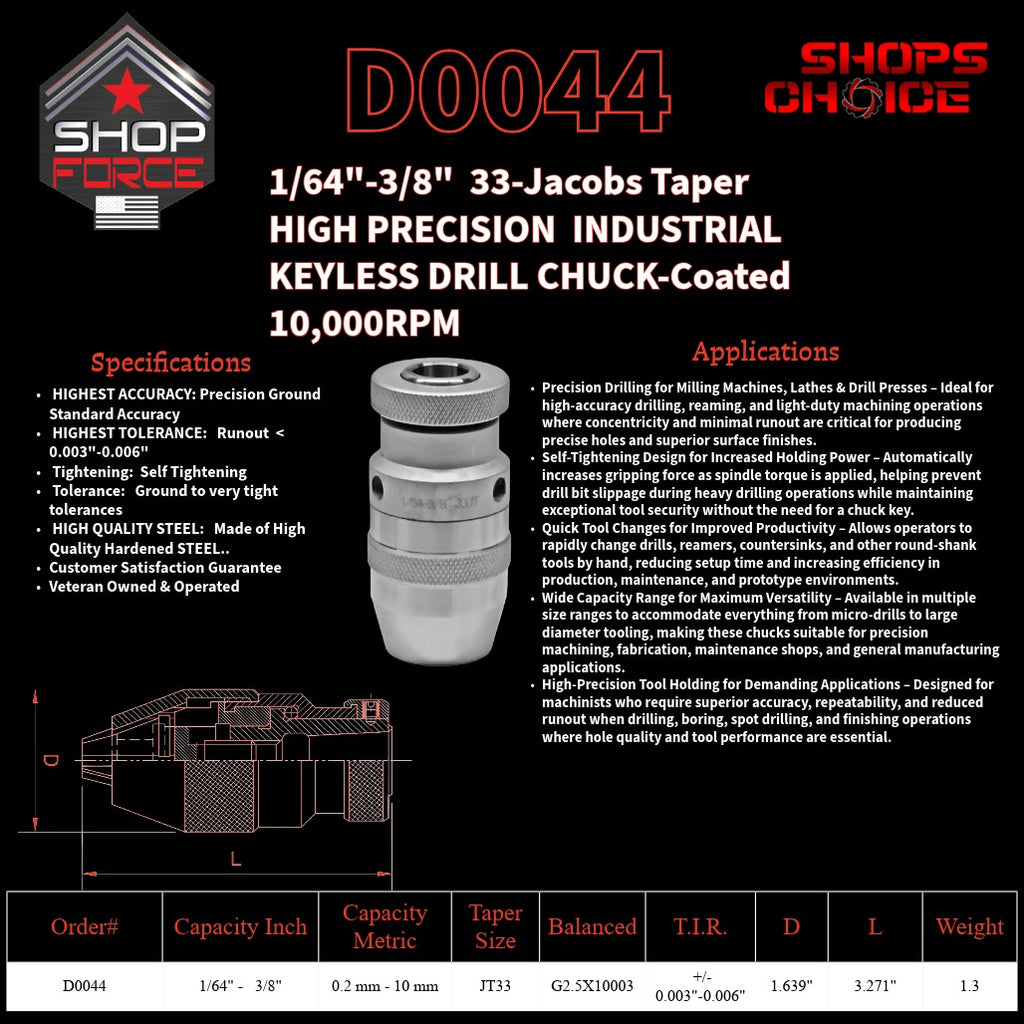

High Precision Coated Keyless Drill Chuck, 1/64"-3/8" Capacity, JT33 Jacobs Taper, 10,000 RPM - D0044
$112.65
Shop-Force High Precision Coated Industrial Keyless Drill Chuck (D0044). 1/64"-3/8" 33-Jacobs Taper HIGH PRECISION INDUSTRIAL KEYLESS DRILL CHUCK-Coated 10,000RPM. Designed for reliable, keyless tool gripping and drilling operations. See the product specifications and full high precision coated comparison chart for capacities, mounting taper and dimensions.

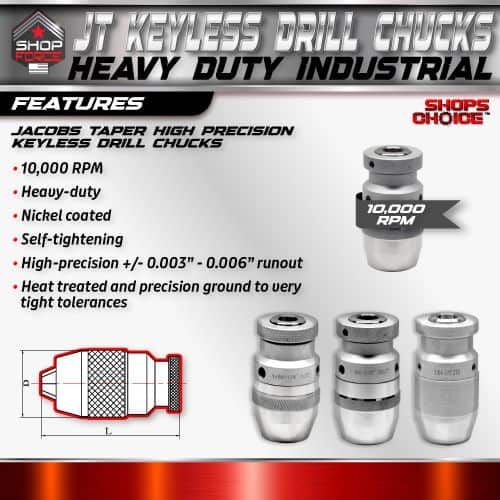

Specifications & Tolerances
- HIGHEST ACCURACY: Precision Ground Standard Accuracy
- HIGHEST TOLERANCE: Runout < 0.003"-0.006"
- Coated: Nickel Coated
- Tightening: Self Tightening
- Tolerance: Ground to very tight tolerances
- HIGH QUALITY STEEL: Made of High Quality Hardened STEEL..
- custom Satisfaction Guarantee
- Veteran Owned Business
Applications

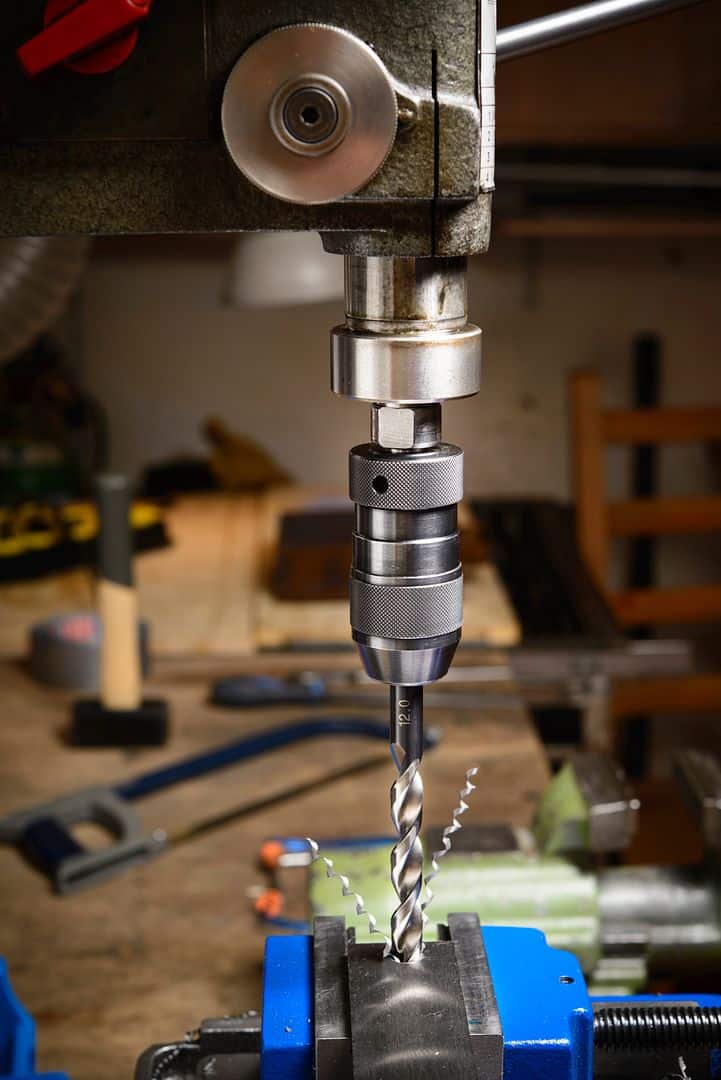

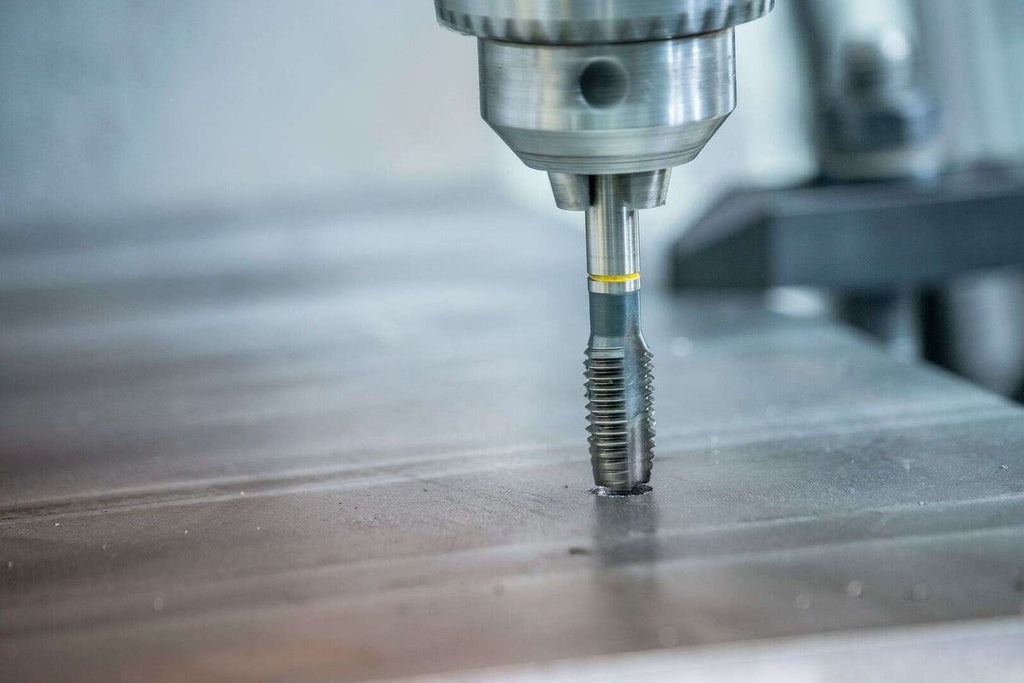

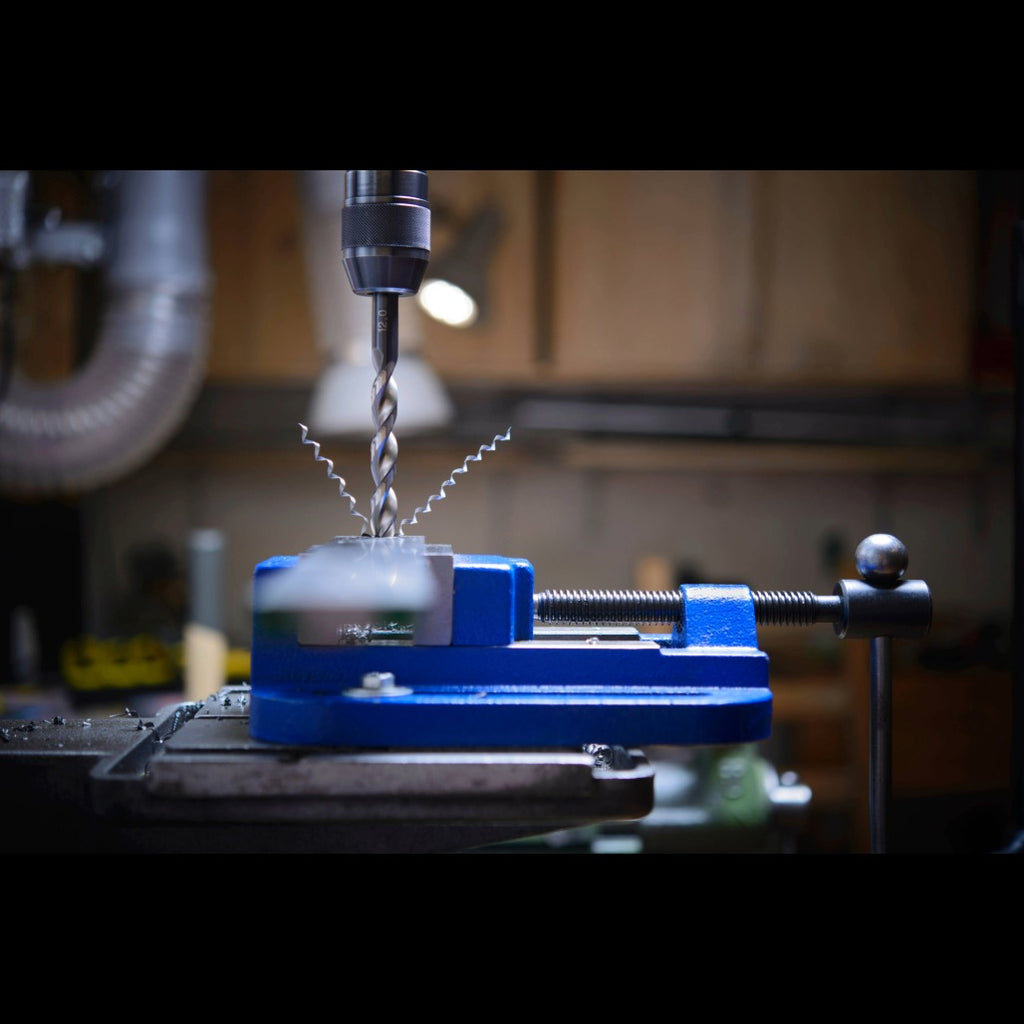

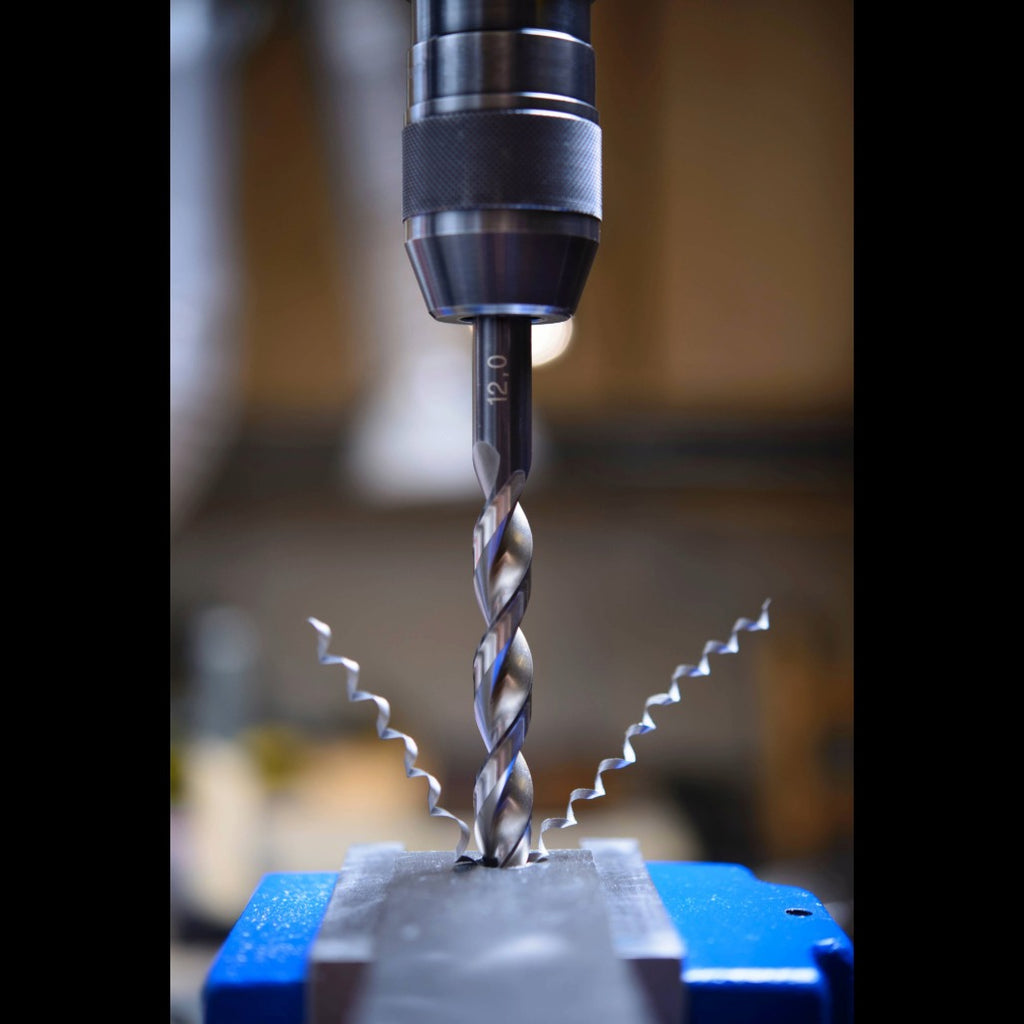

- Precision Drilling for Milling Machines, Lathes & Drill Presses – Ideal for high-accuracy drilling, reaming, and light-duty machining operations where concentricity and minimal runout are critical for producing precise holes and superior surface finishes.
- Self-Tightening Design for Increased Holding Power – Automatically increases gripping force as spindle torque is applied, helping prevent drill bit slippage during heavy drilling operations while maintaining exceptional tool security without the need for a chuck key.
- Quick Tool Changes for Improved Productivity – Allows operators to rapidly change drills, reamers, countersinks, and other round-shank tools by hand, reducing setup time and increasing efficiency in production, maintenance, and prototype environments.
- Wide Capacity Range for Maximum Versatility – Available in multiple size ranges to accommodate everything from micro-drills to large diameter tooling, making these chucks suitable for precision machining, fabrication, maintenance shops, and general manufacturing applications.
- High-Precision Tool Holding for Demanding Applications – Designed for machinists who require superior accuracy, repeatability, and reduced runout when drilling, boring, spot drilling, and finishing operations where hole quality and tool performance are essential.

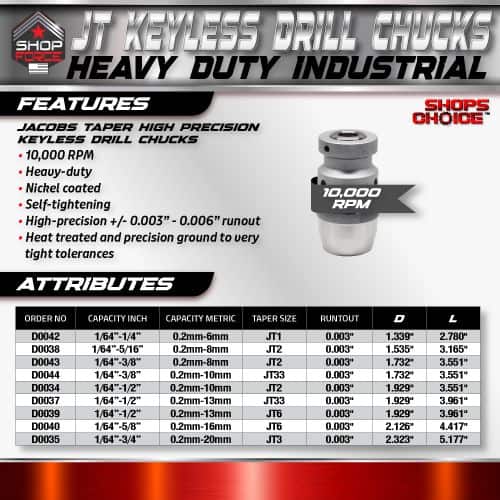

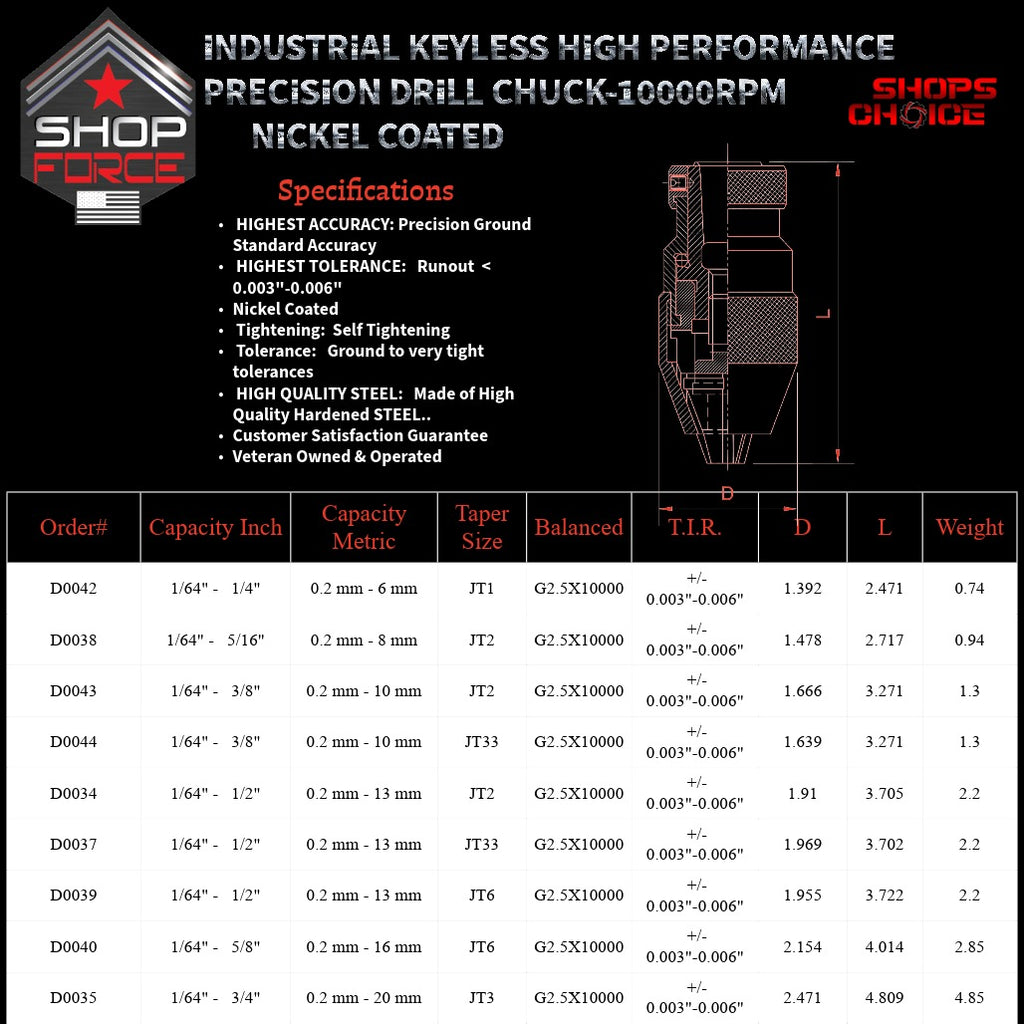

| Order# | Capacity Inch | Capacity Metric | Taper Size | Balanced | T.I.R. | D | L | Weight |
|---|---|---|---|---|---|---|---|---|
| D0042 | 1/64" - 1/4" | 0.2 mm - 6 mm | JT1 | G2.5X10000 | +/- 0.003"-0.006" | 1.392 | 2.471 | 0.74 |
| D0038 | 1/64" - 5/16" | 0.2 mm - 8 mm | JT2 | G2.5X10000 | +/- 0.003"-0.006" | 1.478 | 2.717 | 0.94 |
| D0043 | 1/64" - 3/8" | 0.2 mm - 10 mm | JT2 | G2.5X10000 | +/- 0.003"-0.006" | 1.666 | 3.271 | 1.3 |
| D0044 | 1/64" - 3/8" | 0.2 mm - 10 mm | JT33 | G2.5X10000 | +/- 0.003"-0.006" | 1.639 | 3.271 | 1.3 |
| D0034 | 1/64" - 1/2" | 0.2 mm - 13 mm | JT2 | G2.5X10000 | +/- 0.003"-0.006" | 1.91 | 3.705 | 2.2 |
| D0037 | 1/64" - 1/2" | 0.2 mm - 13 mm | JT33 | G2.5X10000 | +/- 0.003"-0.006" | 1.969 | 3.702 | 2.2 |
| D0039 | 1/64" - 1/2" | 0.2 mm - 13 mm | JT6 | G2.5X10000 | +/- 0.003"-0.006" | 1.955 | 3.722 | 2.2 |
| D0040 | 1/64" - 5/8" | 0.2 mm - 16 mm | JT6 | G2.5X10000 | +/- 0.003"-0.006" | 2.154 | 4.014 | 2.85 |
| D0035 | 1/64" - 3/4" | 0.2 mm - 20 mm | JT3 | G2.5X10000 | +/- 0.003"-0.006" | 2.471 | 4.809 | 4.85 |
Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.
