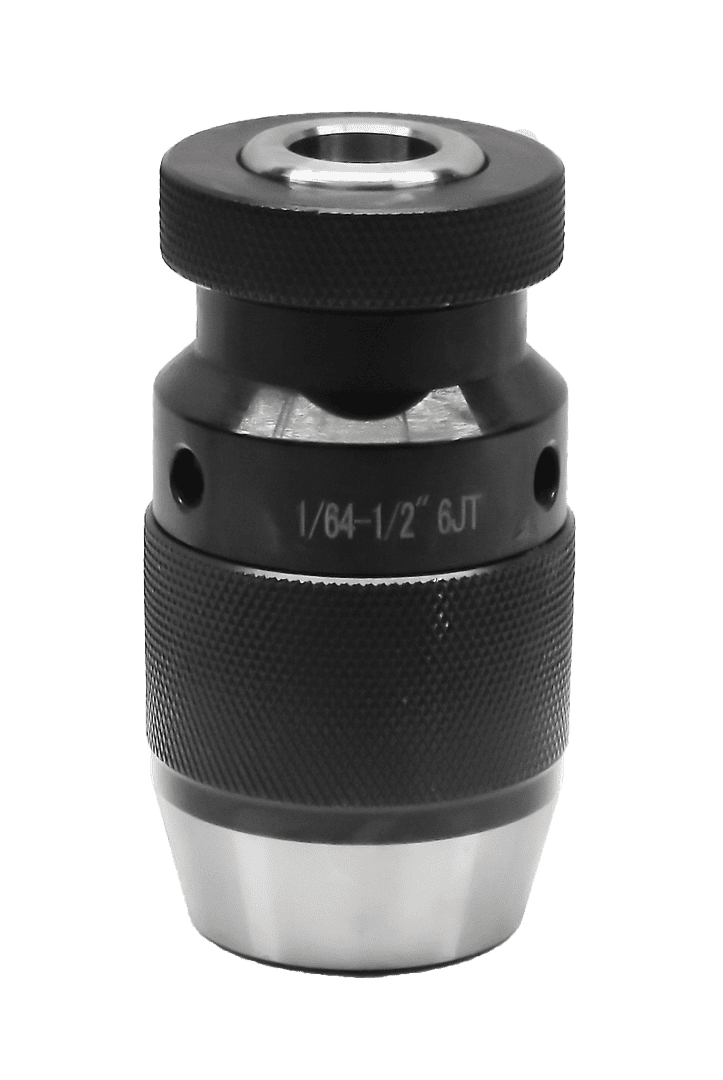

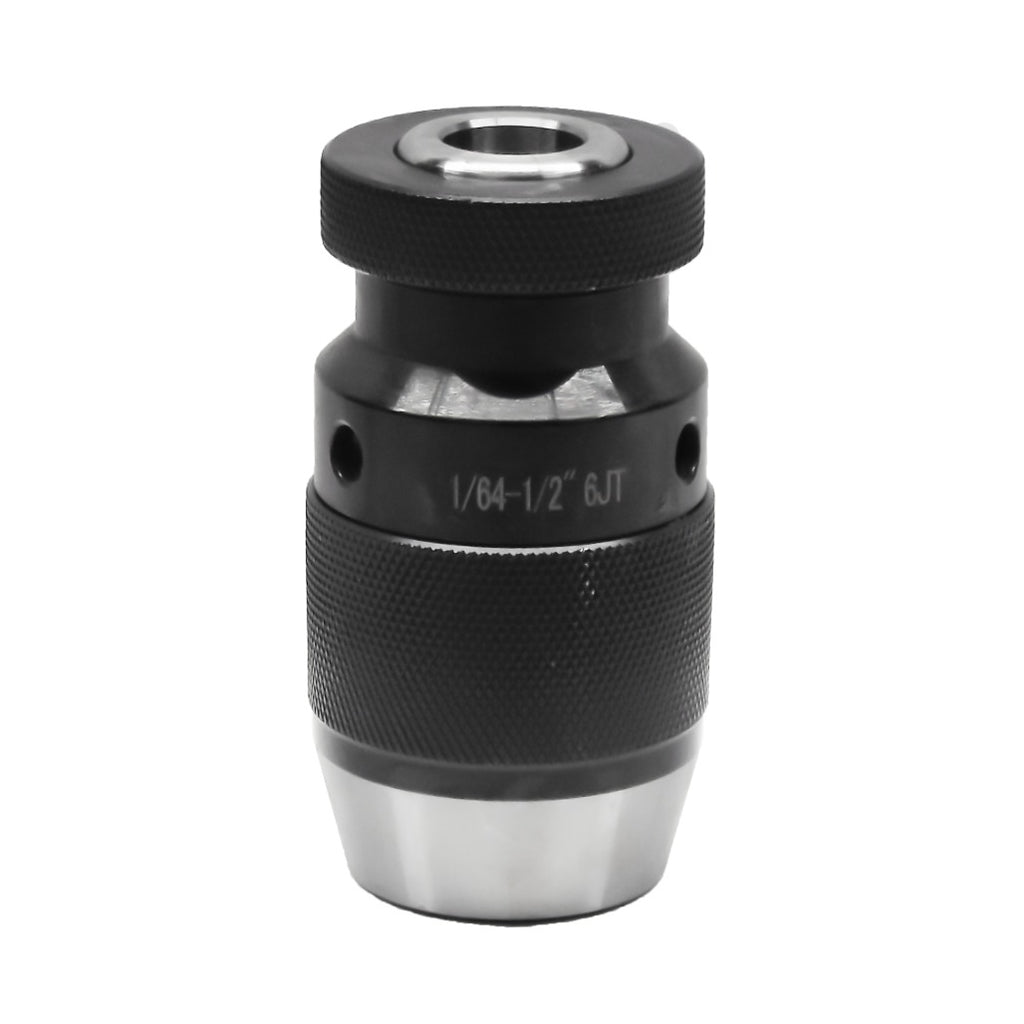

Standard Precision Keyless Drill Chuck, 1/64"-1/2" Capacity, JT6 Jacobs Taper, 4,000 RPM -  D0021

Standard Precision Keyless Drill Chuck, 1/64"-1/2" Capacity, JT6 Jacobs Taper, 4,000 RPM - D0021

Sale price  $64.67 Regular price  $142.79

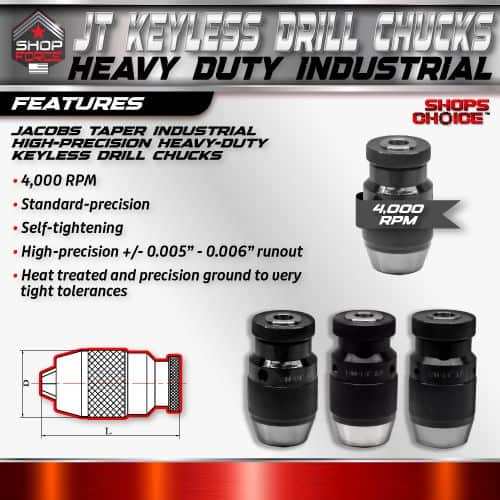

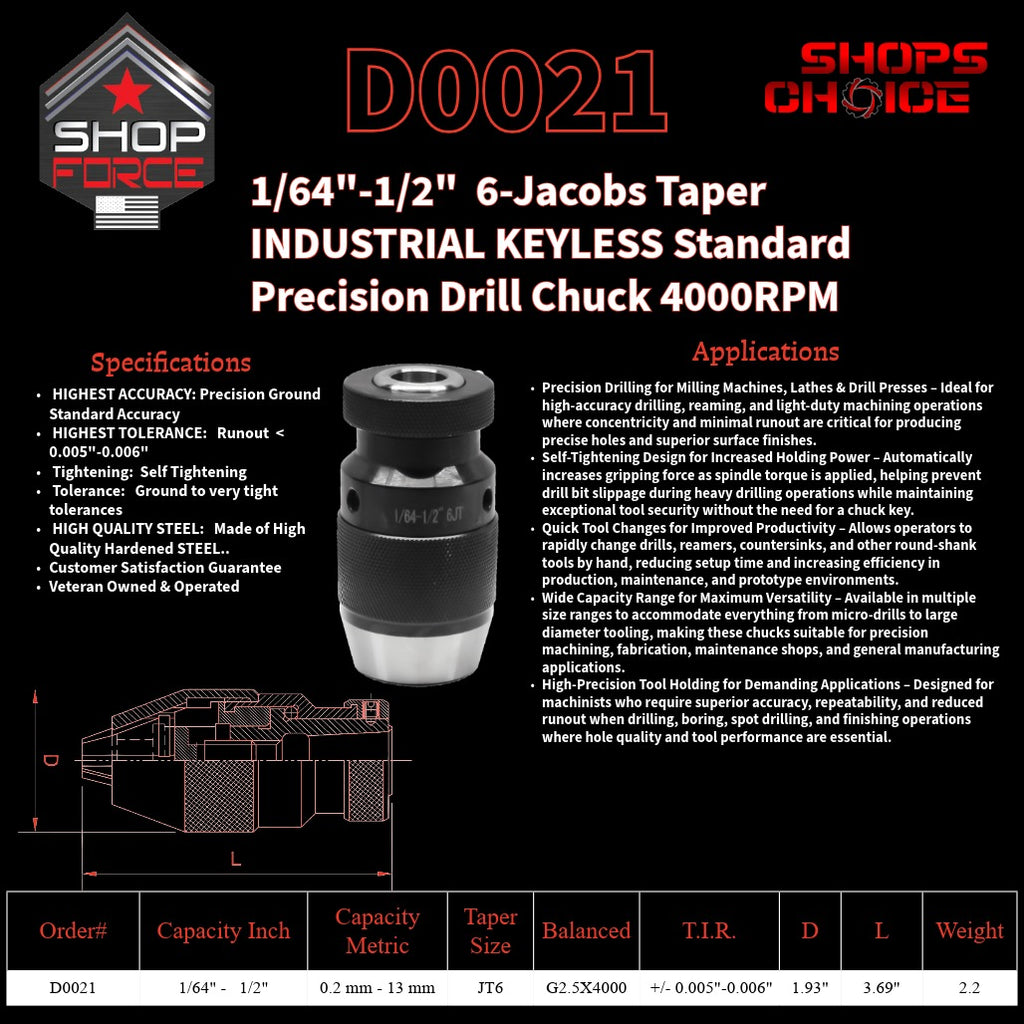

Shop-Force Standard Precision Industrial Keyless Drill Chuck (D0021). 1/64"-1/2" 6-Jacobs Taper INDUSTRIAL KEYLESS Standard Precision Drill Chuck 4000RPM. Designed for reliable, keyless tool gripping and drilling operations. See the product specifications and full standard precision comparison chart for capacities, mounting taper and dimensions.

Specifications & Tolerances

  • HIGHEST ACCURACY: Precision Ground Standard Accuracy
  • HIGHEST TOLERANCE: Runout < 0.005"-0.006"
  • Tightening: Self Tightening
  • Tolerance: Ground to very tight tolerances
  • HIGH QUALITY STEEL: Made of High Quality Hardened STEEL..
  • custom Satisfaction Guarantee
  • Veteran Owned Business

Applications

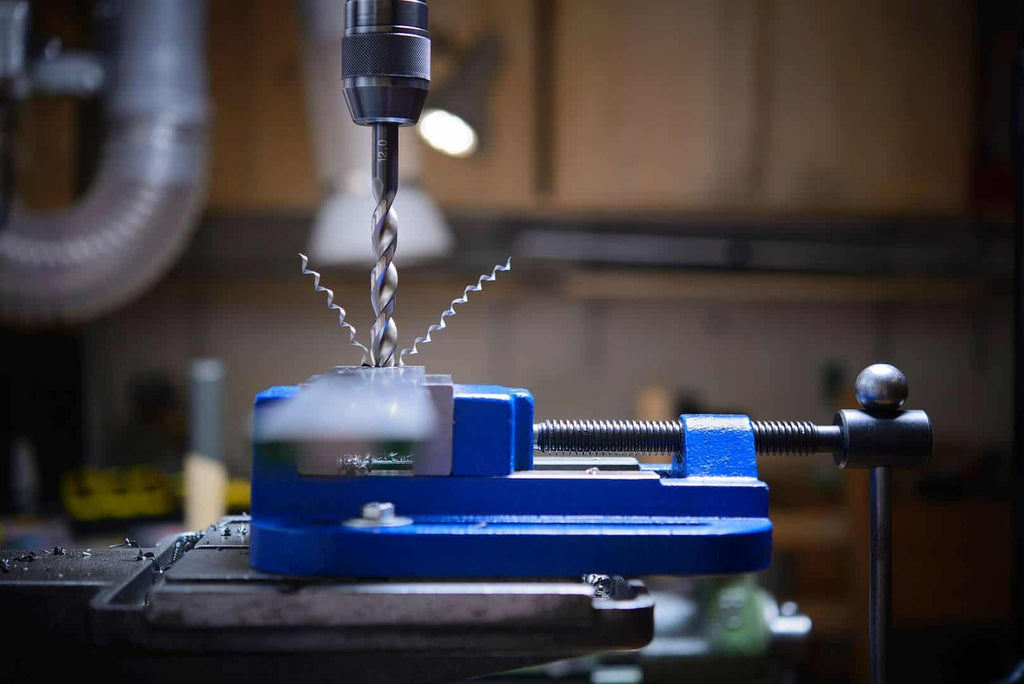

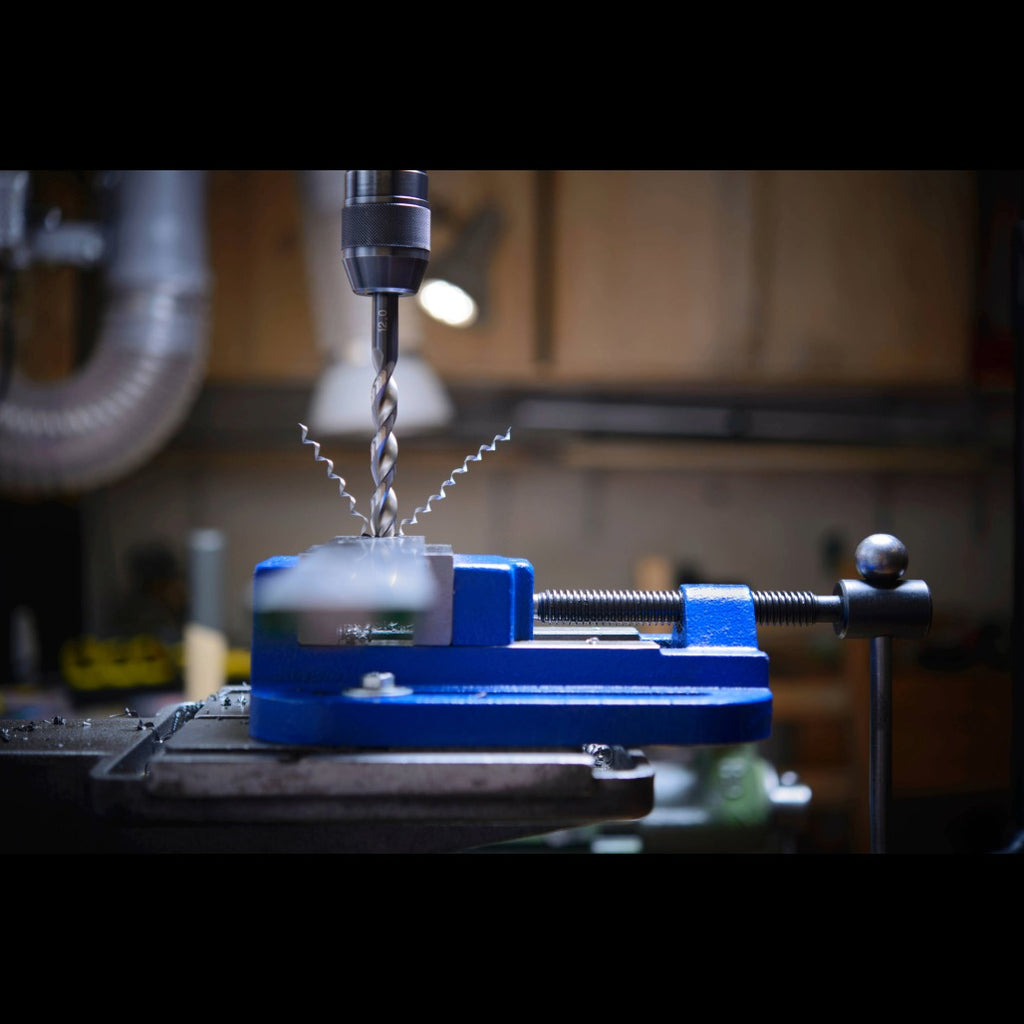

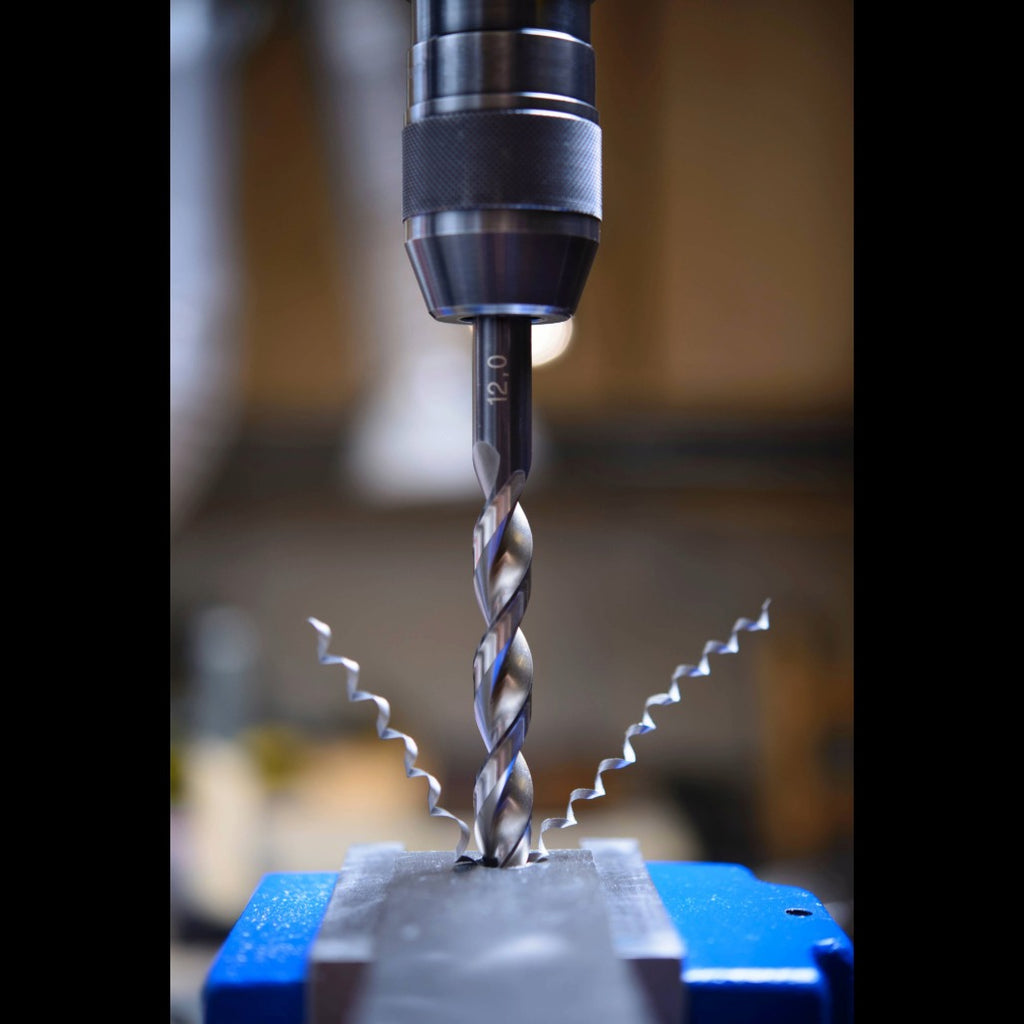

  • Precision Drilling for Milling Machines, Lathes & Drill Presses – Ideal for high-accuracy drilling, reaming, and light-duty machining operations where concentricity and minimal runout are critical for producing precise holes and superior surface finishes.
  • Self-Tightening Design for Increased Holding Power – Automatically increases gripping force as spindle torque is applied, helping prevent drill bit slippage during heavy drilling operations while maintaining exceptional tool security without the need for a chuck key.
  • Quick Tool Changes for Improved Productivity – Allows operators to rapidly change drills, reamers, countersinks, and other round-shank tools by hand, reducing setup time and increasing efficiency in production, maintenance, and prototype environments.
  • Wide Capacity Range for Maximum Versatility – Available in multiple size ranges to accommodate everything from micro-drills to large diameter tooling, making these chucks suitable for precision machining, fabrication, maintenance shops, and general manufacturing applications.
  • High-Precision Tool Holding for Demanding Applications – Designed for machinists who require superior accuracy, repeatability, and reduced runout when drilling, boring, spot drilling, and finishing operations where hole quality and tool performance are essential.

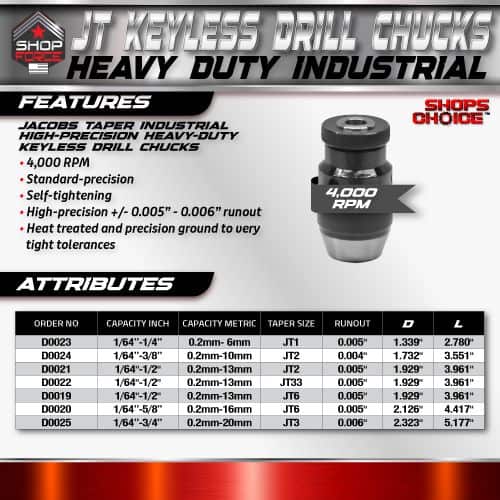

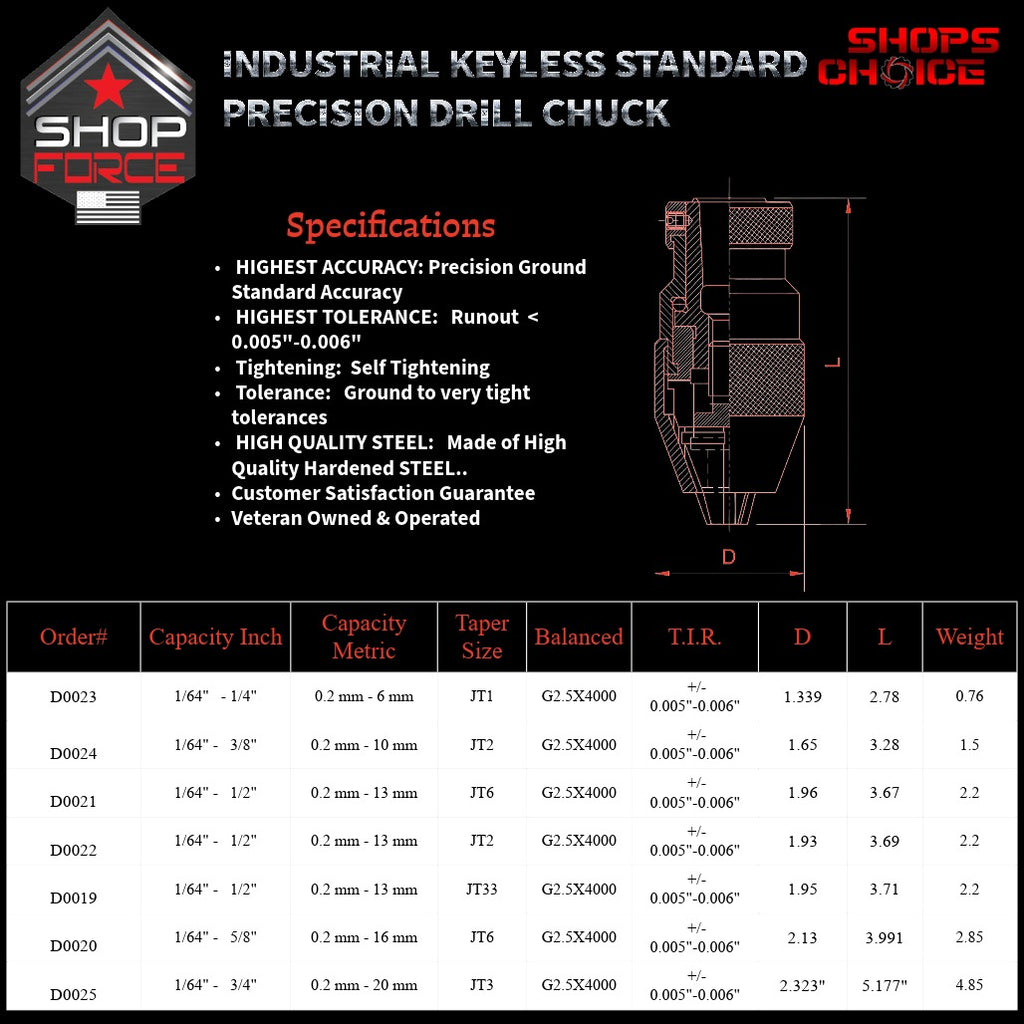

Order# Capacity Inch Capacity Metric Taper Size Balanced T.I.R. D L Weight
D0023 1/64" - 1/4" 0.2 mm - 6 mm JT1 G2.5X4000 +/- 0.005"-0.006" 1.339 2.78 0.76
D0024 1/64" - 3/8" 0.2 mm - 10 mm JT2 G2.5X4000 +/- 0.005"-0.006" 1.65 3.28 1.5
D0022 1/64" - 1/2" 0.2 mm - 13 mm JT2 G2.5X4000 +/- 0.005"-0.006" 1.96 3.67 2.2
D0021 1/64" - 1/2" 0.2 mm - 13 mm JT6 G2.5X4000 +/- 0.005"-0.006" 1.93 3.69 2.2
D0019 1/64" - 1/2" 0.2 mm - 13 mm JT33 G2.5X4000 +/- 0.005"-0.006" 1.95 3.71 2.2
D0020 1/64" - 5/8" 0.2 mm - 16 mm JT6 G2.5X4000 +/- 0.005"-0.006" 2.13 3.991 2.85
D0025 1/64" - 3/4" 0.2 mm - 20 mm JT3 G2.5X4000 +/- 0.005"-0.006" 2.323" 5.177" 4.85

Dimensional Disclaimer: All dimensions are provided for reference purposes and are subject to change without notice. Please confirm critical dimensions before ordering to ensure proper fit and compatibility with your application.

Shop-Force Quality

Shop-Force manufactures precision tooling and industrial workholding products for professional machining, manufacturing, and maintenance applications. Our products are supported by in-house quality control and a commitment to consistent performance and reliability.
